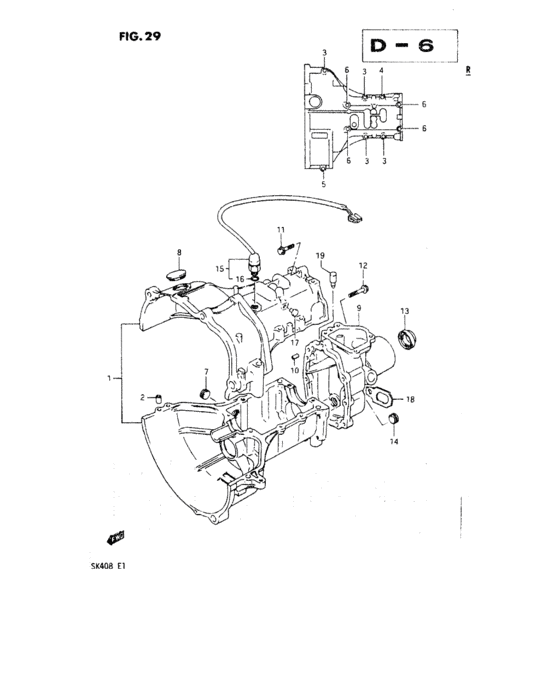

Transmission case (TRANSMISSION CASE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-85000-000
Case assy, transmission
|
24700-85000-000 |
— | ||
|
2
|
2
04211-09169-000 PIN |
04211-09169-000 |
from US $0.91 |
||
|
3
|
3
01517-08403-000
ボルト
|
01517-08403-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
4
|
4
01517-08603-000
ボルト
|
01517-08603-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0860B-000 BoltBolt, sec case |
01550-0860B-000 |
from US $6.61 |
||
|
5
|
5
01537-08803-000 ボルト |
01537-08803-000 |
US $2.03 |
||
| replacements | |||||
|
5
|
5
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
5
|
5
01550-0880A-000 BOLT |
01550-0880A-000 |
from US $1.76 |
||
|
5
|
5
01517-08403-000
ボルト
|
01517-08403-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
6
|
6
09103-08013-000
ボルト,8X95
|
09103-08013-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0895B-000 BoltBolt, crankcase (8x95) |
01550-0895B-000 |
US $24.70 |
||
|
7
|
7
09246-16004-000
プラグ(マグネットナシ)
|
09246-16004-000 |
— | ||
| replacements | |||||
|
7
|
7
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
|
7
|
7
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
8
|
8
09250-30003-000 CAP(OD:36) |
09250-30003-000 |
from US $2.08 |
||
|
9
|
9
24770-85001-000
Case,extension
<-24770-85000 |
24770-85001-000 |
— | ||
|
10
|
10
04211-09169-000 PIN |
04211-09169-000 |
from US $0.91 |
||
|
11
|
11
01537-08303-000
New Genuine Part
|
01537-08303-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
12
|
12
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
12
|
12
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
13
|
13
24780-79001-000 OIL SEAL |
24780-79001-000 |
US $8.51 |
||
|
14
|
14
09246-16004-000
プラグ(マグネットナシ)
|
09246-16004-000 |
— | ||
| replacements | |||||
|
14
|
14
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
|
14
|
14
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
15
|
15
37610-79502-000
スイッチアッシ,バックアップランプ
|
37610-79502-000 |
— | ||
| replacement | |||||
|
15
|
15
37610-80023-000 SWITCH ASSY,BACK UP LAMP |
37610-80023-000 |
US $23.20 |
||
|
16
|
16
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
17
|
17
09250-08001-000 PLUG(OD:14)Cap, remote control shaft |
09250-08001-000 |
US $1.28 |
||
|
18
|
18
11851-85000-000
フック,エンジン
|
11851-85000-000 |
— | ||
| replacement | |||||
|
18
|
18
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
19
|
19
24821-09001-000 PLUG,T/M BREATHERPlug, breather <-24821-09000 |
24821-09001-000 |
from US $3.04 |
||
