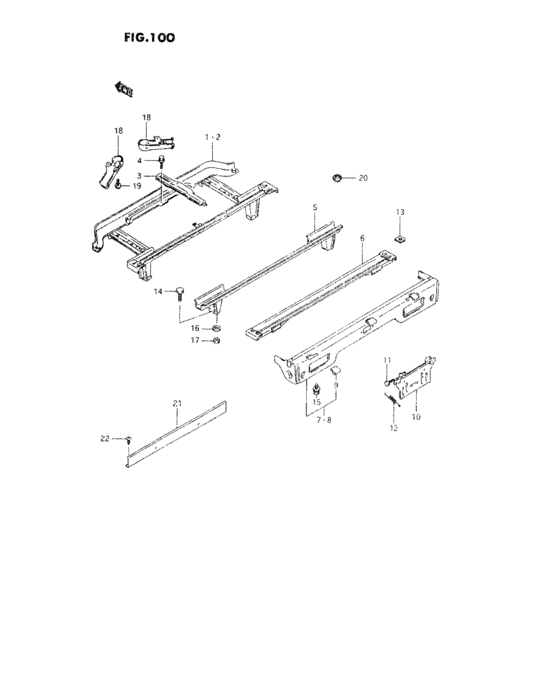

Deck floor member (T/K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 5MT
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66101-62C10-000
Member assy, deck floor front
T |
66101-62C10-000 |
— | ||
|
2
|
2
66101-64C20-000
Member assy, deck floor front
K |
66101-64C20-000 |
— | ||
| replacement | |||||
|
2
|
2
66101-62C20-000 MEMBER ASSY,DECK FL FRK |
66101-62C20-000 |
US $299.92 |
||
|
3
|
3
67911-85001-000 MEMBER,SERVICE HOLE,CTR |
67911-85001-000 |
US $19.87 |
||
|
4
|
4
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
5
|
5
66201-85081-000
クロスメンバアッシ,デッキフロア,NO.3
|
66201-85081-000 |
— | ||
| replacement | |||||
|
5
|
5
66201-51F02-000 CROSSMEMBER,DECK FL NO.3 |
66201-51F02-000 |
US $140.21 |
||
|
6
|
6
66210-85090-000 X MBR,DECK FLOOR NO.4 |
66210-85090-000 |
US $69.55 |
||
|
7
|
7
66102-61C60-000
メンバアッシ,デッキフロアテール
T |
66102-61C60-000 |
— | ||
|
8
|
8
66102-62C00-000 MEMBER ASSY,DECK FL TAILK |
66102-62C00-000 |
US $228.16 |
||
|
9
|
9
66571-70D00-000 HINGE,DECK GATE |
66571-70D00-000 |
US $4.86 |
||
|
10
|
10
73860-70D00-000 BRACKET,RR LICENSE |
73860-70D00-000 |
US $17.60 |
||
|
11
|
11
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) |
09100-06075-000 |
US $1.12 |
||
|
12
|
12
09443-15004-000 SPRING |
09443-15004-000 |
US $2.08 |
||
|
13
|
13
73221-67400-000 PAD,MOUNTING |
73221-67400-000 |
US $2.13 |
||
|
14
|
14
09118-10009-000 BOLT(10X25) |
09118-10009-000 |
US $1.58 |
||
|
15
|
15
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.44 |
||
|
15
|
15
09118-10009-000 BOLT(10X25) |
09118-10009-000 |
US $1.58 |
||
|
16
|
16
09160-10002-000
ワッシャ,10.5X30X3.2
|
09160-10002-000 |
— | ||
| replacement | |||||
|
16
|
16
09160-10094-000 WASHER(10.5X30X3.2) |
09160-10094-000 |
from US $1.12 |
||
|
17
|
17
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
18
|
18
72811-85000-000 BRACKET,RR BODY FLOOR DRAIN |
72811-85000-000 |
US $15.84 |
||
|
19
|
19
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
19
|
19
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
20
|
20
09250-20011-000
キャップ
|
09250-20011-000 |
— | ||
| replacement | |||||
|
20
|
20
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
21
|
21
65961-85200-000
Member, breather pipe hold
N/DECK |
65961-85200-000 |
— | ||
|
22
|
22
03142-06129-000
スクリュ
N/DECK |
03142-06129-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0612A-000 SCREWN/DECK |
03141-0612A-000 |
US $0.76 |
||
