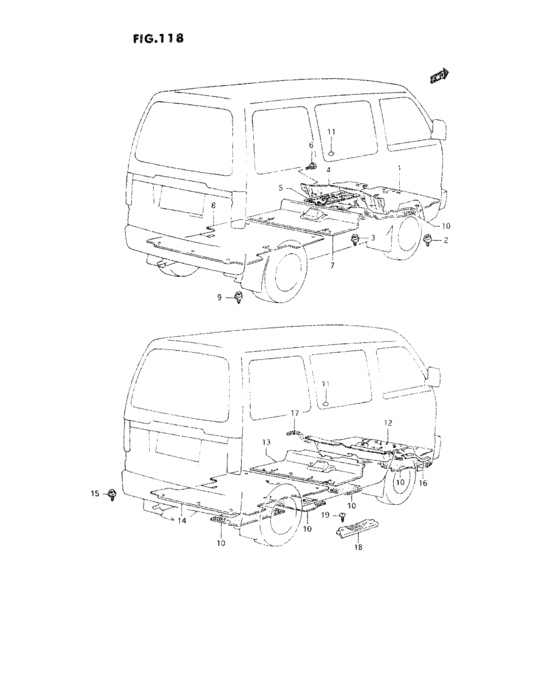

Floor mat and carpet (V:LOW FLOOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 5MT
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-85270-5YU
Mat, front floor
GRAY:LHD:TA:N/HEATER |
75110-85270-5YU |
— | ||
| replacement | |||||
|
1
|
1
75110-85200-V87
MAT,FR FL
GRAY:LHD:TA:N/HEATER |
75110-85200-V87 |
— | ||
|
1
|
1
75110-85260-5YU
Mat, front floor
GRAY:LHD:TA:W/HEATER |
75110-85260-5YU |
— | ||
| replacement | |||||
|
1
|
1
75110-85260-V87
MAT,FR FL
GRAY:LHD:TA:W/HEATER |
75110-85260-V87 |
— | ||
|
1
|
1
75110-85210-5YU
Mat, front floor
GRAY:RHD:TA:N/HEATER,N/AIR CON |
75110-85210-5YU |
— | ||
| replacement | |||||
|
1
|
1
75110-85210-4GD
MAT,FR FL
GRAY:RHD:TA:N/HEATER,N/AIR CON |
75110-85210-4GD |
— | ||
|
1
|
1
75110-85210-4GD
MAT,FR FL
GRAY:RHD:TA:N/HEATER,W/AIR CON |
75110-85210-4GD |
— | ||
|
1
|
1
75110-85010-5YU
Mat, front floor
GRAY:RHD:TA:W/HEATER |
75110-85010-5YU |
— | ||
| replacement | |||||
|
1
|
1
75110-85010-V87
MAT,FR FL
GRAY:RHD:TA:W/HEATER |
75110-85010-V87 |
— | ||
|
2
|
2
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
3
|
3
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
4
|
4
75551-85211-000 INSULATOR,FR FLOOR |
75551-85211-000 |
US $38.40 |
||
|
5
|
5
75230-85500-000 INSULATOR,ENG ROOM CTR |
75230-85500-000 |
US $16.56 |
||
|
6
|
6
09116-06125-000
ボルト,6X16
,Switzerland,Belgium,Germany,Holland,New Zealand,Austria,6,Israel,Hungary |
09116-06125-000 |
— | ||
| replacements | |||||
|
6
|
6
09116-06165-000 BOLT(6X16)Bolt, joint ,Switzerland,Belgium,Germany,Holland,New Zealand,Austria,6,Israel,Hungary |
09116-06165-000 |
from US $4.13 |
||
|
6
|
6
09116-06144-000
Bolt
,Switzerland,Belgium,Germany,Holland,New Zealand,Austria,6,Israel,Hungary |
09116-06144-000 |
— | ||
|
7
|
7
75120-85700-5YU
Mat, rear floor front
GRAY,TA,W/4 PERSONS |
75120-85700-5YU |
— | ||
| replacement | |||||
|
7
|
7
75120-74D60-5YU
MAT,RR FL FR
GRAY,TA,W/4 PERSONS |
75120-74D60-5YU |
— | ||
|
7
|
7
75120-85470-5YU
Mat, rear floor front
GRAY,TA,W/6 PERSONS |
75120-85470-5YU |
— | ||
| replacement | |||||
|
7
|
7
75120-74D60-5YU
MAT,RR FL FR
GRAY,TA,W/6 PERSONS |
75120-74D60-5YU |
— | ||
|
7
|
7
75120-74D60-5YU
MAT,RR FL FR
GRAY:TA:Hong Kong:DA21V-149012~ |
75120-74D60-5YU |
— | ||
|
8
|
8
75130-85740-5YV
Mat, rear floor rear
GRAY,TA,W/6 PERSONS |
75130-85740-5YV |
— | ||
|
8
|
8
75130-85501-5YV
マット,リヤフロア,リヤ(グレー)
GRAY,TA,W/6 PERSONS DA21V-130670~,JSAEDA21V00130474~ |
75130-85501-5YV |
— | ||
| replacement | |||||
|
8
|
8
75130-85501-V87
MAT,RR FL RR
GRAY,TA,W/6 PERSONS DA21V-130670~,JSAEDA21V00130474~ |
75130-85501-V87 |
— | ||
|
8
|
8
75130-85720-5YV
Mat, rear floor rear
GRAY:TA:Switzerland,Belgium,Germany,Holland,Israel |
75130-85720-5YV |
— | ||
|
8
|
8
75130-85721-5YV
Mat, rear floor rear
GRAY:TA:Switzerland,Belgium,Germany,Holland,New Zealand,Israel,JSAEDA21V00130474~ |
75130-85721-5YV |
— | ||
| replacement | |||||
|
8
|
8
75130-85501-V87
MAT,RR FL RR
GRAY:TA:Switzerland,Belgium,Germany,Holland,New Zealand,Israel,JSAEDA21V00130474~ |
75130-85501-V87 |
— | ||
|
9
|
9
09410-00073-000 HOOKTA |
09410-00073-000 |
from US $2.24 |
||
|
10
|
10
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
11
|
11
77181-70B00-000
シール,ロケーシヨンホール
|
77181-70B00-000 |
— | ||
| replacement | |||||
|
11
|
11
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
12
|
12
75160-85740-5RY
Carpet, front floor
GRAY,LHD,TX,W/4 PERSONS,N/HEATER |
75160-85740-5RY |
— | ||
|
12
|
12
75160-85750-5RY
Carpet, front floor
GRAY,LHD,TX,W/4 PERSONS,W/HEATER |
75160-85750-5RY |
— | ||
|
12
|
12
75160-85700-5RY
Carpet, front floor
GRAY,RHD,TX,W/4 PERSONS,N/HEATER |
75160-85700-5RY |
— | ||
|
12
|
12
75160-85500-5RY
Carpet, front floor
GRAY,RHD,TX,W/4 PERSONS,W/HEATER |
75160-85500-5RY |
— | ||
|
12
|
12
75160-85780-5RY
Carpet, fr floor
GRAY:TX:Ireland |
75160-85780-5RY |
— | ||
|
12
|
12
75160-85720-5RY CARPET,FR FLGRAY,TX:Finland,Belgium,Holland |
75160-85720-5RY |
US $137.26 |
||
|
13
|
13
75170-67C20-5RY
カーペット,リヤフロア,フロント(グレー)
GRAY,TX |
75170-67C20-5RY |
— | ||
|
13
|
13
75170-85730-5RY
Carpet, rear floor front
GRAY,Saudi Arabia |
75170-85730-5RY |
— | ||
| replacement | |||||
|
13
|
13
75170-85700-5RY CARPET,RR FL,FRGRAY,Saudi Arabia |
75170-85700-5RY |
US $163.39 |
||
|
13
|
13
75170-85700-5RY CARPET,RR FL,FRGRAY,United Arab Emirates,Yemen (North) |
75170-85700-5RY |
US $163.39 |
||
|
14
|
14
75180-85700-5RY
Carpet, rr floor rear
GRAY |
75180-85700-5RY |
— | ||
| replacement | |||||
|
14
|
14
75180-85701-5RY
CARPET,RR FL,RR
GRAY |
75180-85701-5RY |
— | ||
|
14
|
14
75180-85701-5RY
CARPET,RR FL,RR
GRAY,DA21V-130670~,JSAEDA21V00130474~ |
75180-85701-5RY |
— | ||
|
15
|
15
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
16
|
16
75151-65C00-000 GARNISH,FR CARPET SIDE,RTX |
75151-65C00-000 |
US $26.40 |
||
|
17
|
17
75152-65C00-000 GARNISH,FR CARPET SIDE,LTX |
75152-65C00-000 |
US $26.40 |
||
|
18
|
18
75153-65C10-000 GARNISH,RR CARPET SIDETX |
75153-65C10-000 |
US $17.66 |
||
|
19
|
19
03141-05123-000
Screw 5 x 12
TX |
03141-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03141-0512A-000 SCREWScrew, belt cooling duct TX |
03141-0512A-000 |
from US $0.76 |
||
