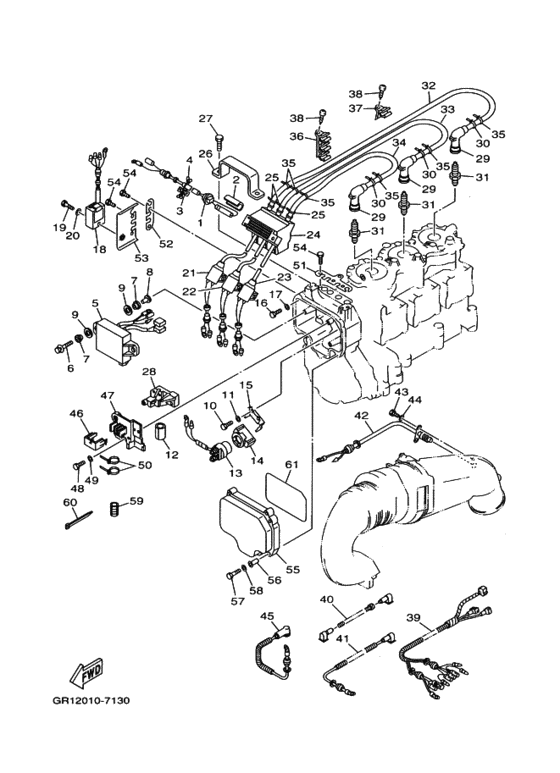

Electrical 1 Diagram Yamaha 1100VN
- Model code
- GR12
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63M-82150-00-00 Fuse Holder AssemblyＦＵＳＥ ＨＯＬＤＥＲ ＡＳＳＹ; |
63M-82150-00-00 |
US $76.23 |
||
|
2
|
2
63M-82176-00-00
Damper
ＤＡＭＰＥＲ; |
63M-82176-00-00 |
— | ||
|
3
|
3
63M-82159-00-00 Fuse SpareＦＵＳＥ ＳＰＥＡＲ; |
63M-82159-00-00 |
US $6.57 |
||
|
4
|
4
90464-07M44-00
Clamp
ＣＬＡＭＰ; |
90464-07M44-00 |
— | ||
|
5
|
5
63M-85540-01-00
C. D. I. Unit Assembly
ＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
63M-85540-01-00 |
— | ||
|
6
|
6
90119-06M75-00 Bolt,with WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06M75-00 |
US $1.21 |
||
| replacements | |||||
|
6
|
6
90119-06M56-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06M56-00 |
US $1.21 |
||
|
6
|
6
90119-06293-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06293-00 |
from US $1.21 |
||
|
7
|
7
90480-09M25-00 GrommetＧＲＯＭＭＥＴ; |
90480-09M25-00 |
from US $4.11 |
||
|
8
|
8
90387-06M03-00 CollarＣＯＬＬＡＲ; |
90387-06M03-00 |
from US $5.81 |
||
|
9
|
9
902-0116M-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
902-0116M-00-00 |
from US $1.81 |
||
|
10
|
10
97095-06016-00 BoltＢＯＬＴ; |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep RecessＢＯＬＴ; |
97D95-06016-00 |
from US $1.52 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
ＷＡＳＨＥＲ; |
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ; |
929-90066-00-00 |
from US $1.39 |
||
|
12
|
12
63M-82589-00-00 Protecter, Wire HarnessＰＲＯＴＥＣＴＥＲ， ＷＩＲＥ ＨＡＲＮＥＳＳ; |
63M-82589-00-00 |
US $2.12 |
||
|
13
|
13
6G1-81941-10-00 Starter Relay AssyＳＴＡＲＴＥＲ ＲＥＬＡＹ ＡＳＳＹ; |
6G1-81941-10-00 |
from US $57.24 |
||
|
14
|
14
6H4-81952-00-00 Holder, RelayＨＯＬＤＥＲ， ＲＥＬＡＹ; |
6H4-81952-00-00 |
US $9.35 |
||
|
15
|
15
63M-81945-00-00 Plate, Switch FittingＰＬＡＴＥ， ＳＷＩＴＣＨ ＦＩＴＴＩＮＧ; |
63M-81945-00-00 |
from US $6.17 |
||
|
16
|
16
97095-06016-00 BoltＢＯＬＴ; |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep RecessＢＯＬＴ; |
97D95-06016-00 |
from US $1.52 |
||
|
17
|
17
929-95066-00-00
Washer, Plate
ＷＡＳＨＥＲ; |
929-95066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ; |
929-90066-00-00 |
from US $1.39 |
||
|
18
|
18
63M-81960-00-00 Rectifier & Regulator AssyＲＥＣＴＩＦＩＥＲ ＆ａｍｐ； ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; |
63M-81960-00-00 |
from US $163.03 |
||
|
19
|
19
97095-06012-00 BoltＢＯＬＴ; |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
19
|
19
970-80060-12-00 BoltＢＯＬＴ; |
970-80060-12-00 |
from US $2.22 |
||
|
20
|
20
929-95066-00-00
Washer, Plate
ＷＡＳＨＥＲ; |
929-95066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ; |
929-90066-00-00 |
from US $1.39 |
||
|
21
|
21
63M-85570-00-00
Ignition Coil Assembly
ＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
63M-85570-00-00 |
— | ||
|
22
|
22
63M-85570-10-00
Ignition Coil Assembly
ＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
63M-85570-10-00 |
— | ||
|
23
|
23
63M-85570-20-00
Ignition Coil Assembly
ＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
63M-85570-20-00 |
— | ||
|
24
|
24
63M-85547-00-00
Damper
ＤＡＭＰＥＲ; |
63M-85547-00-00 |
— | ||
|
25
|
25
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
25
|
25
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
25
|
25
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
26
|
26
63M-85542-00-00
Bracket
ＢＲＡＣＫＥＴ; |
63M-85542-00-00 |
— | ||
|
27
|
27
97513-08525-00 BoltＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
97513-08525-00 |
from US $3.54 |
||
| replacement | |||||
|
27
|
27
97013-08025-00 Bolt (682)ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
97013-08025-00 |
from US $3.54 |
||
|
28
|
28
63M-85516-00-00
Spacer
ＧＲＯＭＭＥＴ; |
63M-85516-00-00 |
— | ||
|
29
|
29
63M-82370-00-00 Plug Cap AssemblyＰＬＵＧ ＣＡＰ ＡＳＳＹ; |
63M-82370-00-00 |
from US $102.79 |
||
|
30
|
30
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
30
|
30
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
30
|
30
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
31
|
31
94702-00195-00 Br8Hs Ngk Screw TopＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
94702-00195-00 |
from US $7.08 |
||
| replacements | |||||
|
31
|
31
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
BR8-HS000-00-00 |
US $28.96 |
||
|
31
|
31
94701-00195-00 Plug,spark(Ngk Br8Hs)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
94701-00195-00 |
US $7.76 |
||
|
31
|
31
NGK-BR8HS-00-00 Br8Hs Ngk Screw TopＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
NGK-BR8HS-00-00 |
US $23.40 |
||
|
32
|
32
63M-82351-00-00 Tube, CordＴＵＢＥ， ＣＯＲＤ; |
63M-82351-00-00 |
from US $14.17 |
||
|
33
|
33
63M-82351-10-00 Tube, CordＴＵＢＥ， ＣＯＲＤ; |
63M-82351-10-00 |
from US $12.60 |
||
| replacement | |||||
|
33
|
33
63M-82351-00-00 Tube, CordＴＵＢＥ， ＣＯＲＤ; |
63M-82351-00-00 |
from US $14.17 |
||
|
34
|
34
63M-82351-20-00 Tube, CordＴＵＢＥ， ＣＯＲＤ; |
63M-82351-20-00 |
from US $12.60 |
||
| replacement | |||||
|
34
|
34
63M-82351-00-00 Tube, CordＴＵＢＥ， ＣＯＲＤ; |
63M-82351-00-00 |
from US $14.17 |
||
|
35
|
35
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
35
|
35
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
35
|
35
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
36
|
36
63M-81317-00-00
Clamp, Cord
ＣＬＡＭＰ， ＣＯＲＤ; |
63M-81317-00-00 |
— | ||
|
37
|
37
63M-81317-10-00 Clamp, CordＣＬＡＭＰ， ＣＯＲＤ; |
63M-81317-10-00 |
US $4.23 |
||
|
38
|
38
977-80506-16-00
Screw, Tapping
ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
977-80506-16-00 |
— | ||
| replacement | |||||
|
38
|
38
97780-50116-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50116-00 |
from US $1.52 |
||
|
39
|
39
63M-82553-01-00 Extension, Wire LeadＥＸＴＥＮＳＩＯＮ， ＷＩＲＥ ＬＥＡＤ; |
63M-82553-01-00 |
from US $180.71 |
||
|
40
|
40
64T-82117-00-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
64T-82117-00-00 |
from US $69.49 |
||
| replacement | |||||
|
40
|
40
63N-82117-00-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
63N-82117-00-00 |
from US $69.49 |
||
|
41
|
41
64T-82117-10-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
64T-82117-10-00 |
from US $52.06 |
||
|
42
|
42
63M-82560-00-00 Thermo Switch AssemblyＴＨＥＲＭＯ ＳＷＩＴＣＨ ＡＳＳＹ; |
63M-82560-00-00 |
US $152.35 |
||
|
43
|
43
97095-06016-00 BoltＢＯＬＴ; |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
43
|
43
97D95-06016-00 Bolt, Hexagon Deep RecessＢＯＬＴ; |
97D95-06016-00 |
from US $1.52 |
||
|
44
|
44
929-95061-00-00 Washer, SpringＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
929-95061-00-00 |
from US $0.97 |
||
|
45
|
45
63M-82117-20-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
63M-82117-20-00 |
US $88.29 |
||
|
46
|
46
63M-85546-00-00 BandＢＡＮＤ; |
63M-85546-00-00 |
US $3.19 |
||
|
47
|
47
63M-85548-00-00 HolderＨＯＬＤＥＲ; |
63M-85548-00-00 |
US $8.37 |
||
|
48
|
48
97095-06014-00 BoltＢＯＬＴ; |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
48
|
48
97D95-06014-00 Bolt, Hexagon Deep RＢＯＬＴ; |
97D95-06014-00 |
from US $1.18 |
||
|
49
|
49
929-95066-00-00
Washer, Plate
ＷＡＳＨＥＲ; |
929-95066-00-00 |
— | ||
| replacement | |||||
|
49
|
49
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ; |
929-90066-00-00 |
from US $1.39 |
||
|
50
|
50
90465-13M60-00 ClampＣＬＡＭＰ; |
90465-13M60-00 |
from US $2.41 |
||
|
51
|
51
63M-85599-01-00 CoverＣＯＶＥＲ; |
63M-85599-01-00 |
US $20.65 |
||
|
52
|
52
63M-85525-00-00 CoverＣＯＶＥＲ; |
63M-85525-00-00 |
from US $11.05 |
||
|
53
|
53
63M-85644-00-00
Plate
ＰＬＡＴＥ; |
63M-85644-00-00 |
— | ||
|
54
|
54
97095-06012-00 BoltＢＯＬＴ; |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
54
|
54
970-80060-12-00 BoltＢＯＬＴ; |
970-80060-12-00 |
from US $2.22 |
||
|
55
|
55
63M-82314-00-00 Cover, Ignition CoilＣＯＶＥＲ， ＩＧＮＩＴＩＯＮ ＣＯＩＬ; |
63M-82314-00-00 |
US $79.72 |
||
|
56
|
56
90387-06M56-00 CollarＣＯＬＬＡＲ; |
90387-06M56-00 |
from US $1.70 |
||
| replacement | |||||
|
56
|
56
90387-060A3-00 Collar (3H5)ＣＯＬＬＡＲ; |
90387-060A3-00 |
from US $1.63 |
||
|
57
|
57
97013-05020-00 BoltＢＯＬＴ; |
97013-05020-00 |
from US $3.26 |
||
|
58
|
58
929-03056-00-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-03056-00-00 |
— | ||
| replacement | |||||
|
58
|
58
92990-05600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92990-05600-00 |
from US $1.07 |
||
|
59
|
59
90446-14M56-00 Hose (L40)ＨＯＳＥ; |
90446-14M56-00 |
from US $2.34 |
||
| replacement | |||||
|
59
|
59
90446-14M66-00 Hose (L40)ＨＯＳＥ; |
90446-14M66-00 |
from US $2.69 |
||
|
60
|
60
90465-11M59-00 ClampＣＬＡＭＰ; |
90465-11M59-00 |
from US $2.08 |
||
|
61
|
61
63M-83623-00-00
Mark 3
ＭＡＲＫ ３; |
63M-83623-00-00 |
— | ||
