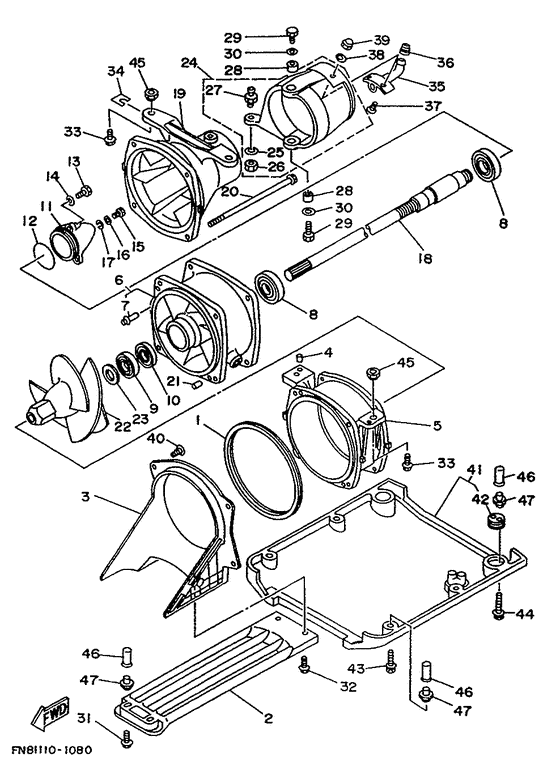

Jet unit 1 Diagram Yamaha 650TX
- Model code
- FN82
- Year
- 1991
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6R7-51117-01-00 Packing |
6R7-51117-01-00 |
from US $28.44 |
||
|
02
|
02
61L-51333-00-58
Screen, Intake
|
61L-51333-00-58 |
— | ||
|
03
|
03
61L-51311-00-00
Duct, Intake
|
61L-51311-00-00 |
— | ||
| replacement | |||||
|
03
|
03
61L-51311-01-00
Duct, Intake
|
61L-51311-01-00 |
— | ||
|
04
|
04
93606-09M19-00 Pin, Dowel |
93606-09M19-00 |
from US $2.39 |
||
|
05
|
05
6R7-51312-00-94 Housing, Impeller |
6R7-51312-00-94 |
from US $375.12 |
||
| replacements | |||||
|
05
|
05
6R7-51312-03-94 Housing, Impeller |
6R7-51312-03-94 |
from US $375.12 |
||
|
05
|
05
6R7-51312-03-00 Housing, Impeller |
6R7-51312-03-00 |
from US $410.56 |
||
|
06
|
06
6R7-51315-00-94
Duct, Impeller
|
6R7-51315-00-94 |
— | ||
| replacement | |||||
|
06
|
06
6R7-51315-01-94
Duct, Impeller
|
6R7-51315-01-94 |
— | ||
|
07
|
07
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
08
|
08
933-06205-U0-00
Bearing
|
933-06205-U0-00 |
— | ||
| replacement | |||||
|
08
|
08
93306-205U1-00 Bearing |
93306-205U1-00 |
from US $22.16 |
||
|
09
|
09
93102-25M34-00 Oil Seal |
93102-25M34-00 |
from US $14.56 |
||
|
10
|
10
93101-25M50-00 Oil Seal |
93101-25M50-00 |
from US $9.35 |
||
|
11
|
11
6R7-51326-00-94 Cap |
6R7-51326-00-94 |
from US $61.90 |
||
| replacement | |||||
|
11
|
11
62T-51326-00-00 Cap |
62T-51326-00-00 |
from US $61.90 |
||
|
12
|
12
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $3.64 |
||
|
13
|
13
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
90430-06M03-00 Gasket |
90430-06M03-00 |
from US $1.34 |
||
|
18
|
18
61L-45511-00-00 Shaft, Drive |
61L-45511-00-00 |
US $567.49 |
||
|
19
|
19
6R7-51318-00-00 Nozzle |
6R7-51318-00-00 |
from US $307.78 |
||
|
20
|
20
90119-06M70-00 Bolt, With Washer |
90119-06M70-00 |
from US $12.13 |
||
|
21
|
21
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
22
|
22
61L-51321-00-94 Impeller |
61L-51321-00-94 |
US $395.66 |
||
| replacement | |||||
|
22
|
22
61L-51321-00-CA Impeller |
61L-51321-00-CA |
US $395.66 |
||
|
23
|
23
90209-20M20-00 Spacer |
90209-20M20-00 |
from US $24.51 |
||
| replacement | |||||
|
23
|
23
62T-51348-00-00 Spacer |
62T-51348-00-00 |
from US $24.51 |
||
|
24
|
24
6R7-51313-00-00 Nozzle, Deflector |
6R7-51313-00-00 |
from US $75.28 |
||
| replacement | |||||
|
24
|
24
61L-51313-00-00 Nozzle, Deflector |
61L-51313-00-00 |
from US $101.23 |
||
|
25
|
25
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
26
|
26
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
26
|
26
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
27
|
27
6R7-42316-00-00 Bolt, Joint |
6R7-42316-00-00 |
from US $19.69 |
||
|
28
|
28
90387-08M06-00 Collar |
90387-08M06-00 |
from US $5.30 |
||
|
29
|
29
97395-08018-00 Bolt |
97395-08018-00 |
from US $3.12 |
||
| replacement | |||||
|
29
|
29
97095-08018-00 Bolt, Hexagon |
97095-08018-00 |
from US $3.12 |
||
|
30
|
30
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
31
|
31
90119-06915-00 Bolt, With Washer |
90119-06915-00 |
from US $4.68 |
||
| replacements | |||||
|
31
|
31
901-19069-29-00 Bolt, With Washer |
901-19069-29-00 |
from US $4.68 |
||
|
31
|
31
901-19068-96-00 Bolt, With Washer |
901-19068-96-00 |
from US $2 |
||
|
32
|
32
90119-06908-00 Bolt With Washer (Eu0) |
90119-06908-00 |
from US $2.27 |
||
|
33
|
33
90119-10906-00 Bolt |
90119-10906-00 |
US $9.95 |
||
|
34
|
34
EW2-67354-00-01 ShimUr |
EW2-67354-00-01 |
US $1.70 |
||
| replacement | |||||
|
34
|
34
EW2-67354-A0-00 Shim (T0.1)Ur |
EW2-67354-A0-00 |
US $0.88 |
||
|
34
|
34
EW2-67354-00-03 ShimUr |
EW2-67354-00-03 |
from US $1.70 |
||
| replacement | |||||
|
34
|
34
EW2-67354-B0-00 Shim (T=0.3)Ur |
EW2-67354-B0-00 |
US $0.88 |
||
|
34
|
34
EW2-67354-00-05 ShimUr |
EW2-67354-00-05 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
EW2-67354-C0-00 Shim (T=0.5)Ur |
EW2-67354-C0-00 |
from US $1.56 |
||
|
34
|
34
EW2-67354-00-10 ShimUr |
EW2-67354-00-10 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
EW2-67354-D0-00 Shim (T=1.0)Ｔ＝１．０ Ur |
EW2-67354-D0-00 |
from US $1.56 |
||
|
35
|
35
EU0-62693-02-00 Pipe |
EU0-62693-02-00 |
from US $30.32 |
||
|
36
|
36
EU0-62695-00-00 Cap, Spout |
EU0-62695-00-00 |
from US $4.23 |
||
| replacement | |||||
|
36
|
36
6R8-62695-00-00 Cap, Spout |
6R8-62695-00-00 |
from US $4.53 |
||
|
37
|
37
98780-05016-00 Screw, Flat Head |
98780-05016-00 |
from US $2.13 |
||
|
38
|
38
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
39
|
39
95780-05300-00 Nut, M5 X 0.8 Nylon Lock |
95780-05300-00 |
from US $1.84 |
||
|
40
|
40
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $1.66 |
||
|
41
|
41
FN8-62730-00-00
Plate 2 Assy
|
FN8-62730-00-00 |
— | ||
|
42
|
42
FK7-62732-00-00
Bolt, Jack
|
FK7-62732-00-00 |
— | ||
| replacement | |||||
|
42
|
42
FK7-62732-01-00
Bolt,jack
|
FK7-62732-01-00 |
— | ||
|
43
|
43
90119-06915-00 Bolt, With Washer |
90119-06915-00 |
from US $4.68 |
||
| replacements | |||||
|
43
|
43
901-19069-29-00 Bolt, With Washer |
901-19069-29-00 |
from US $4.68 |
||
|
43
|
43
901-19068-96-00 Bolt, With Washer |
901-19068-96-00 |
from US $2 |
||
|
44
|
44
90119-06914-00 Bolt, With Washer |
90119-06914-00 |
from US $3.26 |
||
|
45
|
45
90179-10925-00 Nut |
90179-10925-00 |
from US $7.37 |
||
|
46
|
46
90179-06931-00
Nut
|
90179-06931-00 |
— | ||
| replacement | |||||
|
46
|
46
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
47
|
47
90190-06014-00
Cling
|
90190-06014-00 |
— | ||
