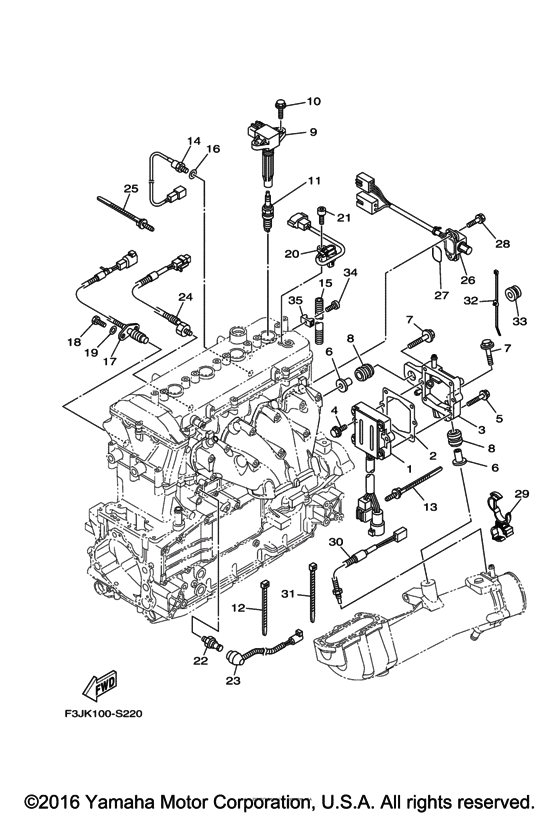

Electrical 2 Diagram Yamaha FC1800
- Year
- 2017
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6S5-81960-11-00 RECTIFIER & REGULATO |
6S5-81960-11-00 |
from US $524.45 |
||
|
2
|
2
6S5-81975-00-00 Plate, Rectifier Fitting |
6S5-81975-00-00 |
from US $10.20 |
||
|
3
|
3
6S5-81972-01-94 Cover, Rectifier |
6S5-81972-01-94 |
from US $160.27 |
||
|
4
|
4
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.70 |
||
|
5
|
5
90119-06048-00 Bolt, With Washer |
90119-06048-00 |
from US $2.55 |
||
|
6
|
6
90387-08M37-00 Collar |
90387-08M37-00 |
from US $7.79 |
||
|
7
|
7
90119-08M22-00 Bolt, With Washer |
90119-08M22-00 |
from US $3.60 |
||
| replacement | |||||
|
7
|
7
901-19081-87-00 BOLT WITH WASHER |
901-19081-87-00 |
from US $6.09 |
||
|
8
|
8
90480-22M15-00 Grommet |
90480-22M15-00 |
from US $5.67 |
||
|
9
|
9
6S5-82310-00-00 Ignition Coil Assy |
6S5-82310-00-00 |
from US $212.77 |
||
| replacements | |||||
|
9
|
9
6S5-82310-02-00 IGNITION COIL ASSY |
6S5-82310-02-00 |
from US $212.77 |
||
|
9
|
9
6S5-82310-10-00 IGNITION COIL ASSY |
6S5-82310-10-00 |
from US $212.77 |
||
|
10
|
10
90105-06903-00 Bolt, Flange |
90105-06903-00 |
from US $1.98 |
||
|
11
|
11
LFR-7A000-00-00 Plug, Spark (Ngk Lfr7A) |
LFR-7A000-00-00 |
from US $8.69 |
||
|
12
|
12
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
12
|
12
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
12
|
12
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
|
13
|
13
90464-31001-00 Clamp |
90464-31001-00 |
from US $2 |
||
| replacement | |||||
|
13
|
13
90464-20005-00 Clamp |
90464-20005-00 |
from US $2.55 |
||
|
14
|
14
61A-85790-00-00 Thermosensor Assy |
61A-85790-00-00 |
from US $107.28 |
||
| replacement | |||||
|
14
|
14
61A-85790-01-00 THERMOSENSOR ASSY |
61A-85790-01-00 |
from US $107.28 |
||
|
15
|
15
90446-10MH3-00 Hose (L350) |
90446-10MH3-00 |
from US $5.24 |
||
|
16
|
16
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
17
|
17
60E-82560-01-00 Thermo Switch Assy |
60E-82560-01-00 |
from US $54.73 |
||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
19
|
19
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
60E-85896-01-00 Sensor, Cam Position |
60E-85896-01-00 |
from US $165.28 |
||
| replacement | |||||
|
20
|
20
60E-85896-02-00 Sensor, Cam Position |
60E-85896-02-00 |
from US $174.08 |
||
|
21
|
21
91380-06016-00 Bolt |
91380-06016-00 |
from US $1.42 |
||
|
22
|
22
68V-82504-00-00 Oil Pressure Switch Assy |
68V-82504-00-00 |
from US $34.41 |
||
|
23
|
23
6S5-81315-00-00 Lead Wire Assy |
6S5-81315-00-00 |
from US $40.34 |
||
| replacement | |||||
|
23
|
23
6S5-81315-01-00 LEAD WIRE ASSY |
6S5-81315-01-00 |
from US $40.34 |
||
|
24
|
24
6AN-85780-00-00 Sensor, Knock |
6AN-85780-00-00 |
US $196.19 |
||
|
25
|
25
90464-31001-00 Clamp |
90464-31001-00 |
from US $2 |
||
| replacement | |||||
|
25
|
25
90464-20005-00 Clamp |
90464-20005-00 |
from US $2.55 |
||
|
26
|
26
6CS-8273J-10-00 Earth Plate Comp |
6CS-8273J-10-00 |
from US $133.32 |
||
| replacement | |||||
|
26
|
26
6CS-8273J-11-00 EARTH PLATE COMP |
6CS-8273J-11-00 |
from US $133.32 |
||
|
27
|
27
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.81 |
||
|
28
|
28
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.70 |
||
|
29
|
29
90464-20008-00 Clamp |
90464-20008-00 |
from US $1.98 |
||
|
30
|
30
6AA-85790-00-00 Thermosensor Assy |
6AA-85790-00-00 |
from US $129.32 |
||
|
31
|
31
90464-31001-00 Clamp |
90464-31001-00 |
from US $2 |
||
| replacement | |||||
|
31
|
31
90464-20005-00 Clamp |
90464-20005-00 |
from US $2.55 |
||
|
32
|
32
904-64310-02-00 Clamp |
904-64310-02-00 |
from US $4.34 |
||
|
33
|
33
90480-20132-00 Grommet |
90480-20132-00 |
from US $2.91 |
||
|
34
|
34
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.18 |
||
|
35
|
35
60E-1244E-00-00 Bracket 1 |
60E-1244E-00-00 |
from US $4.39 |
||
