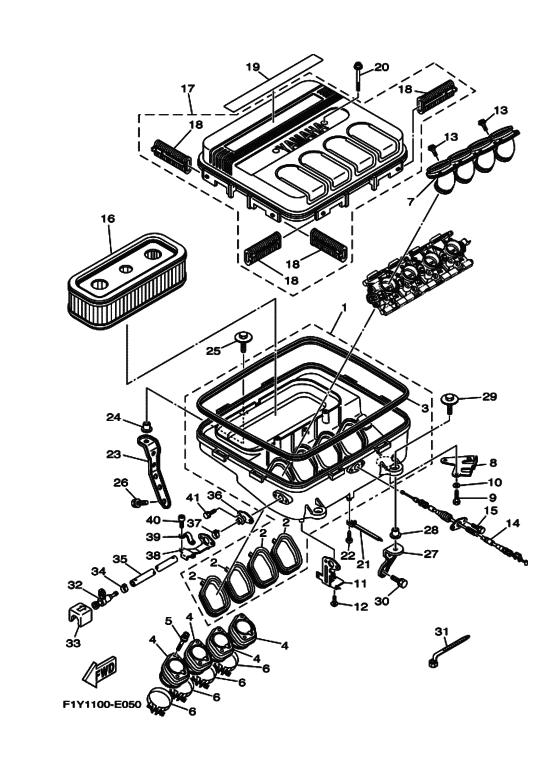

Intake Diagram Yamaha FX1000
- Model code
- F1Y2
- Year
- 2006
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60E-14410-01-00 Air Cleaner Assy |
60E-14410-01-00 |
from US $303.97 |
||
| replacement | |||||
|
1
|
1
60E-14410-02-00 Air Cleaner Assy |
60E-14410-02-00 |
US $346.25 |
||
|
2
|
2
60E-14239-00-00 Seal |
60E-14239-00-00 |
from US $7.19 |
||
|
3
|
3
60E-14457-00-00 Seal |
60E-14457-00-00 |
from US $23.24 |
||
|
4
|
4
60E-13795-00-00
Joint, Throttle Body 1
|
60E-13795-00-00 |
— | ||
|
5
|
5
90110-08020-00 Bolt, Hexagon Socket Head |
90110-08020-00 |
from US $5.95 |
||
|
6
|
6
90450-57002-00 Hose Clamp Assy |
90450-57002-00 |
from US $23.90 |
||
|
7
|
7
60E-1440A-02-00 Ribbon, Sub Assy |
60E-1440A-02-00 |
from US $571.99 |
||
|
8
|
8
6B6-14869-00-00 Bracket 3 |
6B6-14869-00-00 |
US $15.17 |
||
|
9
|
9
97013-06016-00 Bolt |
97013-06016-00 |
from US $1.39 |
||
| replacements | |||||
|
9
|
9
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
9
|
9
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
9
|
9
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
10
|
10
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
60E-14867-00-00 Bracket |
60E-14867-00-00 |
US $10.13 |
||
|
12
|
12
90160-05003-00 Screw, Round Tapping |
90160-05003-00 |
from US $1.70 |
||
|
13
|
13
90109-06053-00 Bolt |
90109-06053-00 |
from US $3.72 |
||
|
14
|
14
6B6-26311-11-00 Cable, Throttle 1 |
6B6-26311-11-00 |
from US $127.26 |
||
| replacement | |||||
|
14
|
14
6B6-26311-12-00 Cable, Throttle 1 |
6B6-26311-12-00 |
from US $147.80 |
||
|
15
|
15
90119-06078-00 Bolt, With Washer |
90119-06078-00 |
from US $1.70 |
||
|
16
|
16
6B6-14451-01-00 Element, Air Cleaner |
6B6-14451-01-00 |
from US $179.61 |
||
|
17
|
17
60E-14420-01-00 Air Cleaner Assy 2 |
60E-14420-01-00 |
from US $134.67 |
||
|
18
|
18
66V-13898-00-00 Holder |
66V-13898-00-00 |
from US $11.76 |
||
|
19
|
19
60E-2339E-A0-00 Graphic 1 |
60E-2339E-A0-00 |
from US $64.78 |
||
|
20
|
20
90159-05006-00 Screw, With Washer |
90159-05006-00 |
from US $3.49 |
||
|
21
|
21
90465-12M53-00 Clamp |
90465-12M53-00 |
from US $3.38 |
||
|
22
|
22
90160-05003-00 Screw, Round Tapping |
90160-05003-00 |
from US $1.70 |
||
|
23
|
23
60E-14413-00-00 Stay |
60E-14413-00-00 |
from US $18.14 |
||
|
24
|
24
60E-14449-00-00 Collar |
60E-14449-00-00 |
from US $14.45 |
||
| replacement | |||||
|
24
|
24
60E-14449-00-94 Collar |
60E-14449-00-94 |
from US $14.45 |
||
|
25
|
25
90119-08050-00 Bolt, With Washer |
90119-08050-00 |
from US $8.73 |
||
|
26
|
26
90119-08032-00 Bolt, With Washer |
90119-08032-00 |
from US $5.13 |
||
|
27
|
27
60E-14414-00-00 Stay 2 |
60E-14414-00-00 |
from US $14.59 |
||
|
28
|
28
60E-14449-00-00 Collar |
60E-14449-00-00 |
from US $14.45 |
||
| replacement | |||||
|
28
|
28
60E-14449-00-94 Collar |
60E-14449-00-94 |
from US $14.45 |
||
|
29
|
29
90119-08050-00 Bolt, With Washer |
90119-08050-00 |
from US $8.73 |
||
|
30
|
30
90119-08032-00 Bolt, With Washer |
90119-08032-00 |
from US $5.13 |
||
|
31
|
31
90464-20005-00 Clamp |
90464-20005-00 |
from US $2.55 |
||
|
32
|
32
60E-24300-01-00 Fuel Pipe Joint |
60E-24300-01-00 |
from US $19.54 |
||
|
33
|
33
60E-24474-00-00 Cover |
60E-24474-00-00 |
from US $4.96 |
||
|
34
|
34
90450-17M17-00 Hose Clamp Assy |
90450-17M17-00 |
from US $8.36 |
||
|
35
|
35
60E-14294-00-00 Hose |
60E-14294-00-00 |
US $127.71 |
||
| replacements | |||||
|
35
|
35
60E-14294-02-00 Hose |
60E-14294-02-00 |
US $106.83 |
||
|
35
|
35
60E-14294-03-00 Hose |
60E-14294-03-00 |
US $106.83 |
||
|
36
|
36
60E-24329-00-00 Seal |
60E-24329-00-00 |
from US $7.79 |
||
|
37
|
37
90467-09120-00 Clip |
90467-09120-00 |
from US $1.98 |
||
|
38
|
38
60E-24364-00-00 Stay |
60E-24364-00-00 |
US $17.75 |
||
|
39
|
39
60E-24366-00-00 Clamp, Fuel Pipe 1 |
60E-24366-00-00 |
US $6.98 |
||
|
40
|
40
91380-04008-00 Bolt |
91380-04008-00 |
from US $1.70 |
||
|
41
|
41
97513-06516-00 Bolt, With Washer |
97513-06516-00 |
from US $1.78 |
||
| replacements | |||||
|
41
|
41
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
41
|
41
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
