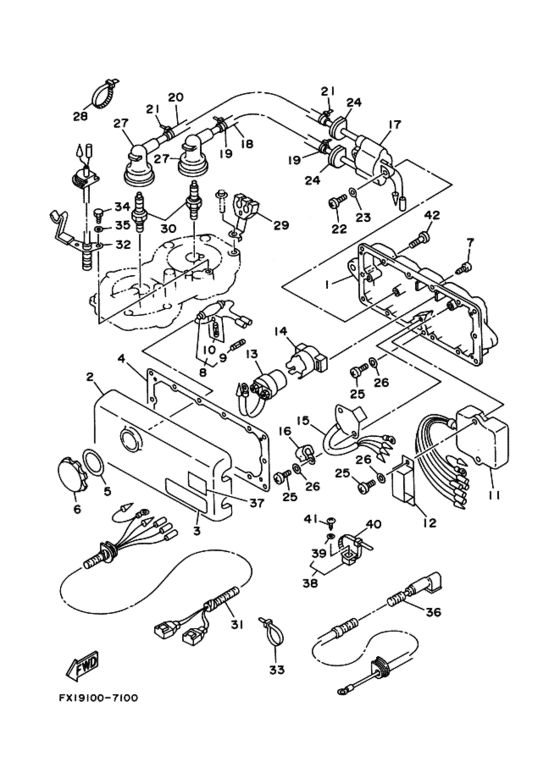

Electrical 1 Diagram Yamaha FX700
- Model code
- FX1B
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Pure White Coat (PURWC; GAR9)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62L-8552A-00-98 HousingＨＯＵＳＩＮＧ; ＬＯＷ ＧＬＯＳＳ ＢＬＡＣＫ |
62L-8552A-00-98 |
from US $137.19 |
||
| replacement | |||||
|
1
|
1
62L-8552A-00-8P HousingＨＯＵＳＩＮＧ; ＬＯＷ ＧＬＯＳＳ ＢＬＡＣＫ |
62L-8552A-00-8P |
from US $137.19 |
||
|
2
|
2
6M6-8552E-01-00 Cover, CaseＣＯＶＥＲ， ＣＡＳＥ; |
6M6-8552E-01-00 |
from US $49.18 |
||
|
3
|
3
63N-83623-00-00 Mark 3ＭＡＲＫ ３; ＵＲ ＪＡＰＡＮ |
63N-83623-00-00 |
US $6.25 |
||
|
3
|
3
6R7-83623-40-00 Mark 3ＭＡＲＫ ３; ＵＲ ＥＮＧＬＩＳＨ |
6R7-83623-40-00 |
from US $7.23 |
||
|
3
|
3
6R7-83623-50-00
Mark 3
ＭＡＲＫ ３; ＵＲ ＦＲＥＮＣＨ |
6R7-83623-50-00 |
— | ||
|
4
|
4
6M6-81921-00-00 Gasket, TerminalＧＡＳＫＥＴ， ＴＥＲＭＩＮＡＬ; |
6M6-81921-00-00 |
from US $24.92 |
||
|
5
|
5
6M6-81844-00-00 GasketＧＡＳＫＥＴ; |
6M6-81844-00-00 |
from US $8.08 |
||
|
6
|
6
6M6-8132W-00-00 CapＣＡＰ; |
6M6-8132W-00-00 |
from US $12.80 |
||
|
7
|
7
97780-60525-00 Screw,tappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
7
|
7
97780-60625-00 Screw, Tapping(65J)ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60625-00 |
from US $1.98 |
||
|
8
|
8
6K8-82150-01-00 Fuse Holder AssyＦＵＳＥ ＨＯＬＤＥＲ ＡＳＳＹ; |
6K8-82150-01-00 |
from US $24.37 |
||
| replacement | |||||
|
8
|
8
6K8-82150-02-00 FUSE HOLDER ASSYＦＵＳＥ ＨＯＬＤＥＲ ＡＳＳＹ; |
6K8-82150-02-00 |
from US $24.37 |
||
|
9
|
9
6G1-82151-00-00 Fuse (10A)ＦＵＳＥ; |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
1E6-82151-00-00 Fuse (10A)ＦＵＳＥ; |
1E6-82151-00-00 |
from US $1.70 |
||
|
10
|
10
6K8-82159-00-00 Fuse Spear (10A)ＦＵＳＥ ＳＰＥＡＲ; |
6K8-82159-00-00 |
from US $8.37 |
||
| replacement | |||||
|
10
|
10
6K8-82159-01-00 ＦＵＳＥ ＳＰＥＡＲ; |
6K8-82159-01-00 |
US $10.58 |
||
|
11
|
11
62T-85540-00-00 C.d.i. Unit AssyＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
62T-85540-00-00 |
US $586.08 |
||
| replacements | |||||
|
11
|
11
62T-85540-01-00 C.d.i. Unit AssyＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
62T-85540-01-00 |
US $586.08 |
||
|
11
|
11
62T-85540-04-00 CDI UNIT ASSYＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
62T-85540-04-00 |
from US $580.32 |
||
|
12
|
12
90464-06M29-00 ClampＣＬＡＭＰ; |
90464-06M29-00 |
from US $4.64 |
||
|
13
|
13
6G1-81941-10-00 Starter Relay AssyＳＴＡＲＴＥＲ ＲＥＬＡＹ ＡＳＳＹ; |
6G1-81941-10-00 |
from US $55.56 |
||
|
14
|
14
6M6-81952-01-00 Holder, RelayＨＯＬＤＥＲ， ＲＥＬＡＹ; |
6M6-81952-01-00 |
from US $9.28 |
||
|
15
|
15
6M6-81960-A0-00 Rectifier & Regulator AssyＲＥＣＴＩＦＩＥＲ ＆ａｍｐ； ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; |
6M6-81960-A0-00 |
from US $92.92 |
||
|
16
|
16
90465-08028-00 ClampＣＬＡＭＰ; |
90465-08028-00 |
from US $3.40 |
||
|
17
|
17
62L-85570-00-00 Ignition Coil AssyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
62L-85570-00-00 |
US $224.46 |
||
|
18
|
18
62L-82351-00-00 Tube, CordＴＵＢＥ， ＣＯＲＤ; |
62L-82351-00-00 |
from US $12.60 |
||
| replacement | |||||
|
18
|
18
63M-82351-00-00 Tube, CordＴＵＢＥ， ＣＯＲＤ; |
63M-82351-00-00 |
from US $14.17 |
||
|
19
|
19
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
19
|
19
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
19
|
19
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.35 |
||
|
20
|
20
62L-82352-00-00 Tube, Cord 2ＴＵＢＥ， ＣＯＲＤ ２; |
62L-82352-00-00 |
from US $12.60 |
||
| replacement | |||||
|
20
|
20
63M-82351-00-00 Tube, CordＴＵＢＥ， ＣＯＲＤ ２; |
63M-82351-00-00 |
from US $14.17 |
||
|
21
|
21
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
21
|
21
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
21
|
21
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.35 |
||
|
22
|
22
978-80060-30-00
Screw, Pan Head
ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
978-80060-30-00 |
— | ||
| replacement | |||||
|
22
|
22
97885-06030-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97885-06030-00 |
from US $1.35 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
90480-06M43-00 GrommetＧＲＯＭＭＥＴ; |
90480-06M43-00 |
from US $3.83 |
||
|
25
|
25
98580-06016-00 Screw Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-06016-00 |
from US $2.55 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
6R7-82370-00-00 Plug Cap AssemblyＰＬＵＧ ＣＡＰ ＡＳＳＹ; ＵＲ ＦＯＲ ＧＵＡＭ／ＪＡＰＡＮ |
6R7-82370-00-00 |
from US $50.34 |
||
| replacements | |||||
|
27
|
27
6K8-82370-00-00 Plug Cap AssemblyＰＬＵＧ ＣＡＰ ＡＳＳＹ; ＵＲ ＦＯＲ ＧＵＡＭ／ＪＡＰＡＮ |
6K8-82370-00-00 |
from US $50.34 |
||
|
27
|
27
63M-82370-00-00 Plug Cap AssemblyＰＬＵＧ ＣＡＰ ＡＳＳＹ; ＵＲ ＦＯＲ ＧＵＡＭ／ＪＡＰＡＮ |
63M-82370-00-00 |
from US $102.79 |
||
|
27
|
27
6R7-82370-11-00 Plug Cap AssyＰＬＵＧ ＣＡＰ ＡＳＳＹ; ＵＲ ＦＯＲ ＯＣＥＡＮＩＡ／ＣＡＮＡＤＡ／ＥＵＲＯＰＥ |
6R7-82370-11-00 |
US $102.79 |
||
|
28
|
28
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
28
|
28
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
28
|
28
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.35 |
||
|
29
|
29
6R8-82361-00-00 Clamp, CordＣＬＡＭＰ， ＣＯＲＤ; |
6R8-82361-00-00 |
US $15.89 |
||
|
30
|
30
94701-00040-00 Plug, SparkＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ Ｂ７ＨＳ; ＵＲ ＦＯＲ ＧＵＡＭ／ＪＡＰＡＮ |
94701-00040-00 |
US $4.38 |
||
| replacement | |||||
|
30
|
30
94701-00110-00 Plug, Spark (Br7Hs)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ Ｂ７ＨＳ; ＵＲ ＦＯＲ ＧＵＡＭ／ＪＡＰＡＮ |
94701-00110-00 |
US $6.74 |
||
|
30
|
30
94701-00110-00 Plug, Spark (Br7Hs)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ７ＨＳ; ＵＲ ＦＯＲ ＯＣＥＡＮＩＡ／ＣＡＮＡＤＡ／ＥＵＲＯＰＥ |
94701-00110-00 |
US $6.74 |
||
|
31
|
31
6M6-82553-01-00 Extension, Wire LeadＥＸＴＥＮＳＩＯＮ， ＷＩＲＥ ＬＥＡＤ; |
6M6-82553-01-00 |
US $99.31 |
||
|
32
|
32
62L-82560-00-00 Thermo Switch AssyＴＨＥＲＭＯ ＳＷＩＴＣＨ ＡＳＳＹ; |
62L-82560-00-00 |
US $170.05 |
||
|
33
|
33
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
33
|
33
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
34
|
34
97095-06016-00 BoltＢＯＬＴ; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
34
|
34
97D95-06016-00 Bolt, Hexagon Deep RecessＢＯＬＴ; |
97D95-06016-00 |
from US $1.28 |
||
|
35
|
35
929-95061-00-00 Washer, SpringＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
929-95061-00-00 |
from US $0.99 |
||
|
36
|
36
6M6-82117-21-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
6M6-82117-21-00 |
from US $32.90 |
||
|
37
|
37
4GB-2155A-00-00
Mark, Ce
ＭＡＲＫ， ＥＣ; ＦＯＲ ＥＵＲＯＰＥ |
4GB-2155A-00-00 |
— | ||
|
38
|
38
90600-91736-00 Clamp Comp (Eu0)ＣＬＡＭＰ; |
90600-91736-00 |
from US $1.98 |
||
|
39
|
39
90201-05925-00
Washer, Plain
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05925-00 |
— | ||
|
40
|
40
90601-20006-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
40
|
40
90601-20009-00 Band (Eu0)ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20009-00 |
from US $2.27 |
||
|
41
|
41
97780-50114-00 Screw, TappingＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ ＴＡＰＰＩＮＧ; |
97780-50114-00 |
US $1.84 |
||
| replacement | |||||
|
41
|
41
977-80505-14-00 Screw, TappingＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ ＴＡＰＰＩＮＧ; |
977-80505-14-00 |
from US $1.84 |
||
|
42
|
42
90149-08998-00
Screw
ＳＣＲＥＷ， ＢＩＮＤ; |
90149-08998-00 |
— | ||
