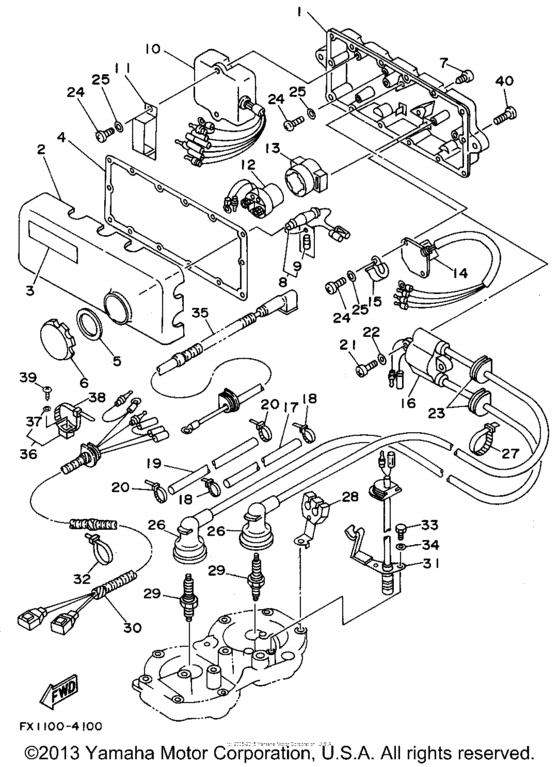

Electrical (1) Diagram Yamaha FX700
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62L-8552A-00-98 Housing |
62L-8552A-00-98 |
from US $137.19 |
||
| replacement | |||||
|
1
|
1
62L-8552A-00-8P Housing |
62L-8552A-00-8P |
from US $137.19 |
||
|
2
|
2
6M6-8552E-00-00 Cover, Case |
6M6-8552E-00-00 |
from US $49.18 |
||
| replacement | |||||
|
2
|
2
6M6-8552E-01-00 Cover, Case |
6M6-8552E-01-00 |
from US $49.18 |
||
|
3
|
3
6R7-83623-40-00 Mark 3 |
6R7-83623-40-00 |
from US $7.23 |
||
|
4
|
4
6M6-81921-00-00 Gasket, Terminal |
6M6-81921-00-00 |
from US $25.60 |
||
|
5
|
5
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
6
|
6
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
7
|
7
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
7
|
7
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
8
|
8
6K8-82150-01-00 Fuse Holder Assy |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
8
|
8
6K8-82150-02-00 FUSE HOLDER ASSY |
6K8-82150-02-00 |
from US $26.78 |
||
|
9
|
9
6G1-82151-00-00 Fuse (10A)10A |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $2.02 |
||
|
10
|
10
61X-85540-00-00 C.d.i. Unit Assy |
61X-85540-00-00 |
from US $608.69 |
||
| replacements | |||||
|
10
|
10
6M6-85540-01-00 C.d.i. Unit Assembly |
6M6-85540-01-00 |
from US $608.69 |
||
|
10
|
10
6M6-85540-02-00 C.d.i. Unit Assy |
6M6-85540-02-00 |
US $641.90 |
||
|
11
|
11
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
12
|
12
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
13
|
13
6M6-81952-01-00
Holder, Relay
|
6M6-81952-01-00 |
— | ||
|
14
|
14
6M6-81960-A0-00 Rectifier & Regulator Assy |
6M6-81960-A0-00 |
from US $95.28 |
||
|
15
|
15
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
16
|
16
62L-85570-00-00 Ignition Coil Assy |
62L-85570-00-00 |
US $224.46 |
||
|
17
|
17
62L-82351-00-00 Tube, Cord |
62L-82351-00-00 |
from US $12.60 |
||
| replacement | |||||
|
17
|
17
63M-82351-00-00 Tube, Cord |
63M-82351-00-00 |
from US $14.17 |
||
|
18
|
18
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
18
|
18
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
18
|
18
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
19
|
19
62L-82352-00-00 Tube, Cord 2 |
62L-82352-00-00 |
from US $12.60 |
||
| replacement | |||||
|
19
|
19
63M-82351-00-00 Tube, Cord |
63M-82351-00-00 |
from US $14.17 |
||
|
20
|
20
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
20
|
20
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
21
|
21
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
21
|
21
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
24
|
24
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
6K8-82370-00-00 Plug Cap Assembly |
6K8-82370-00-00 |
from US $50.34 |
||
|
27
|
27
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
27
|
27
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
27
|
27
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
28
|
28
6R7-82361-00-00
Clamp, Cord
|
6R7-82361-00-00 |
— | ||
|
29
|
29
NGK-B8HS0-00-00 B8Hs Ngk 10Pk Screw10PK SCREW |
NGK-B8HS0-00-00 |
US $6.95 |
||
| replacements | |||||
|
29
|
29
B8H-S0000-00-00 element10PK SCREW |
B8H-S0000-00-00 |
US $4.99 |
||
|
29
|
29
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)10PK SCREW |
BR8-HS000-00-00 |
US $26.36 |
||
|
30
|
30
6M6-82553-01-00 Extension, Wire Lead |
6M6-82553-01-00 |
US $99.31 |
||
|
31
|
31
62L-82560-00-00 Thermo Switch Assy |
62L-82560-00-00 |
US $170.05 |
||
|
32
|
32
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
32
|
32
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
32
|
32
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
33
|
33
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
33
|
33
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
34
|
34
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
35
|
35
6M6-82117-21-00 Wire, Lead |
6M6-82117-21-00 |
from US $32.90 |
||
|
36
|
36
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
37
|
37
90201-05925-00
Washer, Plain
|
90201-05925-00 |
— | ||
|
38
|
38
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
38
|
38
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
39
|
39
97780-50114-00 Screw, Tapping |
97780-50114-00 |
US $1.84 |
||
| replacement | |||||
|
39
|
39
977-80505-14-00 Screw, Tapping |
977-80505-14-00 |
from US $1.84 |
||
|
40
|
40
90149-08998-00
Screw
|
90149-08998-00 |
— | ||
