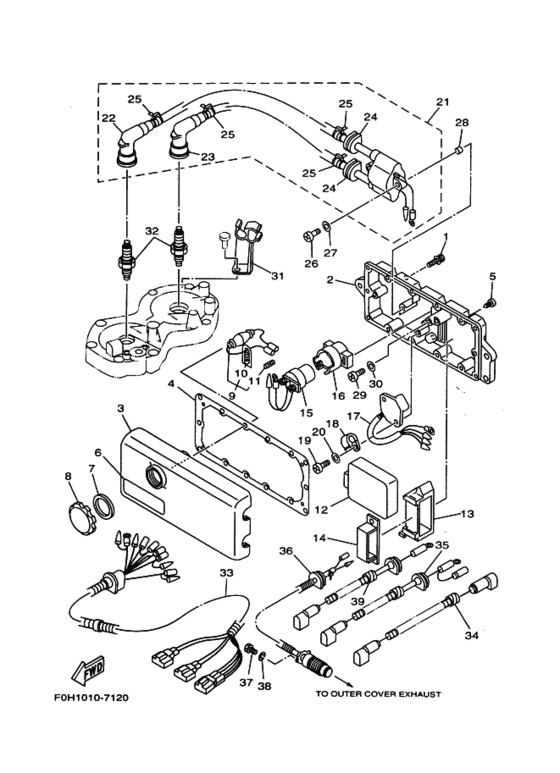

Electrical 1 Diagram Yamaha GP760
- Model code
- F0H1
- Engine Capacity
- 760
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90119-08957-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08957-00 |
from US $3.40 |
||
| replacement | |||||
|
1
|
1
90119-08038-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08038-00 |
from US $2 |
||
|
2
|
2
64X-8552A-01-5B HousingＨＯＵＳＩＮＧ; |
64X-8552A-01-5B |
US $108.22 |
||
| replacement | |||||
|
2
|
2
64X-8552A-01-8P HousingＨＯＵＳＩＮＧ; |
64X-8552A-01-8P |
US $108.22 |
||
|
3
|
3
6M6-8552E-01-00 Cover, CaseＣＯＶＥＲ， ＣＡＳＥ; |
6M6-8552E-01-00 |
from US $49.18 |
||
|
4
|
4
6M6-81921-00-00 Gasket, TerminalＧＡＳＫＥＴ， ＴＥＲＭＩＮＡＬ; |
6M6-81921-00-00 |
from US $24.48 |
||
|
5
|
5
97780-60525-00 Screw,tappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
5
|
5
97780-60625-00 Screw, Tapping(65J)ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60625-00 |
from US $1.98 |
||
|
6
|
6
63N-83623-00-00 Mark 3ＭＡＲＫ ３; |
63N-83623-00-00 |
US $6.25 |
||
|
7
|
7
6M6-81844-00-00 GasketＧＡＳＫＥＴ; |
6M6-81844-00-00 |
from US $7.94 |
||
|
8
|
8
6M6-8132W-00-00 CapＣＡＰ; |
6M6-8132W-00-00 |
from US $12.58 |
||
|
9
|
9
6K8-82150-01-00 Fuse Holder AssyＦＵＳＥ ＨＯＬＤＥＲ ＡＳＳＹ; |
6K8-82150-01-00 |
from US $24.37 |
||
| replacement | |||||
|
9
|
9
6K8-82150-02-00 FUSE HOLDER ASSYＦＵＳＥ ＨＯＬＤＥＲ ＡＳＳＹ; |
6K8-82150-02-00 |
from US $24.37 |
||
|
10
|
10
6G1-82151-00-00 Fuse (10A)．ＦＵＳＥ; |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
1E6-82151-00-00 Fuse (10A)．ＦＵＳＥ; |
1E6-82151-00-00 |
from US $1.66 |
||
|
11
|
11
6K8-82159-00-00 Fuse Spear (10A)．ＦＵＳＥ ＳＰＥＡＲ; |
6K8-82159-00-00 |
from US $8.37 |
||
| replacement | |||||
|
11
|
11
6K8-82159-01-00 ．ＦＵＳＥ ＳＰＥＡＲ; |
6K8-82159-01-00 |
US $10.58 |
||
|
12
|
12
64X-85540-01-00 C.d.i. Unit AssemblyＣ．Ｄ．Ｉ． ＵＮＩＴ ＡＳＳＹ; |
64X-85540-01-00 |
from US $528.50 |
||
|
13
|
13
64X-85546-00-00 BandＢＡＮＤ; |
64X-85546-00-00 |
from US $13.95 |
||
|
14
|
14
90464-06M29-00 ClampＣＬＡＭＰ; |
90464-06M29-00 |
from US $4.64 |
||
|
15
|
15
6G1-81941-10-00 Starter Relay AssyＳＴＡＲＴＥＲ ＲＥＬＡＹ ＡＳＳＹ; |
6G1-81941-10-00 |
from US $54.56 |
||
|
16
|
16
6M6-81952-01-00 Holder, RelayＨＯＬＤＥＲ， ＲＥＬＡＹ; |
6M6-81952-01-00 |
from US $9.28 |
||
|
17
|
17
6M6-81960-A0-00 Rectifier & Regulator AssyＲＥＣＴＩＦＩＥＲ ＆ａｍｐ； ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; |
6M6-81960-A0-00 |
from US $91.26 |
||
|
18
|
18
90465-08M07-00 ClampＣＬＡＭＰ; |
90465-08M07-00 |
US $3.40 |
||
| replacement | |||||
|
18
|
18
90465-08028-00 ClampＣＬＡＭＰ; |
90465-08028-00 |
from US $3.40 |
||
|
19
|
19
97880-06016-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97880-06016-00 |
US $2.55 |
||
| replacement | |||||
|
19
|
19
98580-06016-00 Screw Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-06016-00 |
from US $2.55 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
64X-85570-00-00 Ignition Coil AssyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
64X-85570-00-00 |
from US $331.61 |
||
| replacement | |||||
|
21
|
21
64X-85570-01-00 Ignition Coil AssyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
64X-85570-01-00 |
from US $404.98 |
||
|
22
|
22
62E-82371-10-00 Cap, Plug．ＣＡＰ， ＰＬＵＧ; |
62E-82371-10-00 |
from US $15.86 |
||
|
23
|
23
62E-82371-10-00 Cap, Plug．ＣＡＰ， ＰＬＵＧ; |
62E-82371-10-00 |
from US $15.86 |
||
|
24
|
24
90480-06M43-00 Grommet．ＧＲＯＭＭＥＴ; |
90480-06M43-00 |
from US $3.83 |
||
|
25
|
25
904-6511M-10-00
Clamp
．ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
25
|
25
80L-26397-00-00 Band．ＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
25
|
25
904-65100-98-00 Clamp．ＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.34 |
||
|
26
|
26
978-80060-30-00
Screw, Pan Head
ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
978-80060-30-00 |
— | ||
| replacement | |||||
|
26
|
26
97885-06030-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97885-06030-00 |
from US $1.35 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
90387-06M30-00 CollarＣＯＬＬＡＲ; |
90387-06M30-00 |
from US $3.64 |
||
|
29
|
29
97880-06016-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97880-06016-00 |
US $2.55 |
||
| replacement | |||||
|
29
|
29
98580-06016-00 Screw Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-06016-00 |
from US $2.55 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
31
|
31
62T-82361-00-00 Clamp, CordＣＬＡＭＰ， ＣＯＲＤ; |
62T-82361-00-00 |
from US $9.07 |
||
|
32
|
32
94702-00195-00 Br8Hs Ngk Screw TopＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
94702-00195-00 |
from US $6.62 |
||
| replacements | |||||
|
32
|
32
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
BR8-HS000-00-00 |
US $26.36 |
||
|
32
|
32
94701-00195-00 Plug,spark(Ngk Br8Hs)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
94701-00195-00 |
US $7.28 |
||
|
32
|
32
NGK-BR8HS-00-00 Br8Hs Ngk Screw TopＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
NGK-BR8HS-00-00 |
US $23.40 |
||
|
33
|
33
65V-82553-00-00
Extension, Wire Lead
ＥＸＴＥＮＳＩＯＮ， ＷＩＲＥ ＬＥＡＤ; |
65V-82553-00-00 |
— | ||
|
34
|
34
62T-82117-01-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
62T-82117-01-00 |
US $84.29 |
||
|
35
|
35
63N-82117-10-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
63N-82117-10-00 |
from US $58.72 |
||
| replacement | |||||
|
35
|
35
63N-82117-11-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
63N-82117-11-00 |
from US $42.66 |
||
|
36
|
36
64X-82560-00-00
Thermo Switch Assembly
ＴＨＥＲＭＯ ＳＷＩＴＣＨ ＡＳＳＹ; |
64X-82560-00-00 |
— | ||
|
37
|
37
97095-06016-00 BoltＢＯＬＴ; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
37
|
37
97D95-06016-00 Bolt, Hexagon Deep RecessＢＯＬＴ; |
97D95-06016-00 |
from US $1.28 |
||
|
38
|
38
929-95061-00-00 Washer, SpringＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
929-95061-00-00 |
from US $0.99 |
||
|
39
|
39
6M6-82117-21-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
6M6-82117-21-00 |
from US $32.90 |
||
