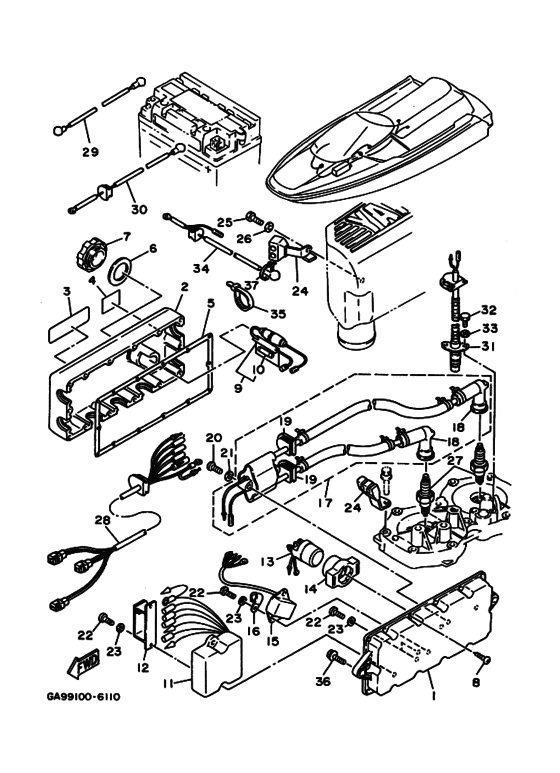

Electrical 1 Diagram Yamaha WRA650
- Model code
- GA9C
- Engine Capacity
- 650
- Year
- 1996
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6M6-8552A-01-98 HousingＨＯＵＳＩＮＧ; ＬＯＷ ＧＬＯＳＳ ＢＬＡＣＫ |
6M6-8552A-01-98 |
from US $116.47 |
||
| replacement | |||||
|
1
|
1
6M6-8552A-01-8P HousingＨＯＵＳＩＮＧ; ＬＯＷ ＧＬＯＳＳ ＢＬＡＣＫ |
6M6-8552A-01-8P |
from US $116.47 |
||
|
2
|
2
6M6-8552E-00-00 Cover, CaseＣＯＶＥＲ， ＣＡＳＥ; |
6M6-8552E-00-00 |
from US $49.18 |
||
| replacement | |||||
|
2
|
2
6M6-8552E-01-00 Cover, CaseＣＯＶＥＲ， ＣＡＳＥ; |
6M6-8552E-01-00 |
from US $49.18 |
||
|
3
|
3
63N-83623-00-00 Mark 3ＭＡＲＫ ３; ＵＲ ＪＡＰＡＮ |
63N-83623-00-00 |
US $6.25 |
||
|
3
|
3
6R7-83623-40-00 Mark 3ＭＡＲＫ ３; ＵＲ ＥＮＧＬＩＳＨ |
6R7-83623-40-00 |
from US $7.23 |
||
|
3
|
3
6R7-83623-50-00
Mark 3
ＭＡＲＫ ３; ＵＲ ＦＲＥＮＣＨ |
6R7-83623-50-00 |
— | ||
|
4
|
4
4GB-2155A-00-00
Mark, Ce
ＭＡＲＫ， ＥＣ; ＥＵＲＯＰＥ ＯＮＬＹ |
4GB-2155A-00-00 |
— | ||
|
5
|
5
6M6-81921-00-00 Gasket, TerminalＧＡＳＫＥＴ， ＴＥＲＭＩＮＡＬ; |
6M6-81921-00-00 |
from US $25.60 |
||
|
6
|
6
6M6-81844-00-00 GasketＧＡＳＫＥＴ; |
6M6-81844-00-00 |
from US $8.42 |
||
|
7
|
7
6M6-8132W-00-00 CapＣＡＰ; |
6M6-8132W-00-00 |
from US $13.14 |
||
|
8
|
8
97780-60525-00 Screw,tappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
8
|
8
97780-60625-00 Screw, Tapping(65J)ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60625-00 |
from US $2.22 |
||
|
9
|
9
6K8-82150-01-00 Fuse Holder AssyＦＵＳＥ ＨＯＬＤＥＲ ＡＳＳＹ; |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
9
|
9
6K8-82150-02-00 FUSE HOLDER ASSYＦＵＳＥ ＨＯＬＤＥＲ ＡＳＳＹ; |
6K8-82150-02-00 |
from US $26.78 |
||
|
10
|
10
6G1-82151-00-00 Fuse (10A)．ＦＵＳＥ; |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
1E6-82151-00-00 Fuse (10A)．ＦＵＳＥ; |
1E6-82151-00-00 |
from US $2.02 |
||
|
11
|
11
62T-85540-00-00 C.d.i. Unit AssyＣ．Ｄ．Ｉ． ＵＮＩＴ ＡＳＳＹ; |
62T-85540-00-00 |
US $586.08 |
||
| replacements | |||||
|
11
|
11
62T-85540-01-00 C.d.i. Unit AssyＣ．Ｄ．Ｉ． ＵＮＩＴ ＡＳＳＹ; |
62T-85540-01-00 |
US $586.08 |
||
|
11
|
11
62T-85540-04-00 CDI UNIT ASSYＣ．Ｄ．Ｉ． ＵＮＩＴ ＡＳＳＹ; |
62T-85540-04-00 |
from US $586.08 |
||
|
12
|
12
90464-06M29-00 ClampＣＬＡＭＰ; |
90464-06M29-00 |
from US $4.64 |
||
|
13
|
13
6G1-81941-10-00 Starter Relay AssyＳＴＡＲＴＥＲ ＲＥＬＡＹ ＡＳＳＹ; |
6G1-81941-10-00 |
from US $57.24 |
||
|
14
|
14
6M6-81952-01-00
Holder, Relay
ＨＯＬＤＥＲ， ＲＥＬＡＹ; |
6M6-81952-01-00 |
— | ||
|
15
|
15
6M6-81960-A0-00 Rectifier & Regulator AssyＲＥＣＴＩＦＩＥＲ ＆ａｍｐ； ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; |
6M6-81960-A0-00 |
from US $95.28 |
||
|
16
|
16
90465-08028-00 ClampＣＬＡＭＰ; |
90465-08028-00 |
from US $3.40 |
||
|
17
|
17
6R8-85570-10-00 Ignition Coil AsyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
6R8-85570-10-00 |
from US $132.52 |
||
| replacement | |||||
|
17
|
17
6R8-85570-11-00 Ignition Coil AssyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
6R8-85570-11-00 |
US $286.49 |
||
|
18
|
18
62E-82371-10-00 Cap, Plug．ＰＬＵＧ， ＣＡＰ ＡＳＳＹ; |
62E-82371-10-00 |
from US $15.86 |
||
|
19
|
19
90480-06M43-00 Grommet．ＧＲＯＭＭＥＴ; |
90480-06M43-00 |
from US $3.83 |
||
|
20
|
20
978-80060-30-00
Screw, Pan Head
ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
978-80060-30-00 |
— | ||
| replacement | |||||
|
20
|
20
97885-06030-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97885-06030-00 |
from US $1.52 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
98580-06016-00 Screw Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-06016-00 |
from US $2.70 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
6R8-82361-00-00 Clamp, CordＣＬＡＭＰ， ＣＯＲＤ; |
6R8-82361-00-00 |
US $15.89 |
||
|
25
|
25
97313-08012-00 Bolt (661)ＢＯＬＴ; |
97313-08012-00 |
from US $3.12 |
||
| replacements | |||||
|
25
|
25
999-99999-99-00
Not Available
ＢＯＬＴ; |
999-99999-99-00 |
— | ||
|
25
|
25
97013-08012-00 BoltＢＯＬＴ; |
97013-08012-00 |
from US $3.12 |
||
|
26
|
26
92990-08600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92990-08600-00 |
from US $1.66 |
||
|
27
|
27
94702-00195-00 Br8Hs Ngk Screw TopＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
94702-00195-00 |
from US $7.08 |
||
| replacements | |||||
|
27
|
27
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
BR8-HS000-00-00 |
US $26.36 |
||
|
27
|
27
94701-00195-00 Plug,spark(Ngk Br8Hs)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
94701-00195-00 |
US $7.76 |
||
|
27
|
27
NGK-BR8HS-00-00 Br8Hs Ngk Screw TopＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ ＢＲ８ＨＳ |
NGK-BR8HS-00-00 |
US $23.40 |
||
|
28
|
28
6R8-82553-01-00 Extension, Wire LeadＥＸＴＥＮＳＩＯＮ， ＷＩＲＥ ＬＥＡＤ; |
6R8-82553-01-00 |
from US $119.99 |
||
|
29
|
29
6M6-82117-01-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
6M6-82117-01-00 |
US $84.29 |
||
| replacement | |||||
|
29
|
29
62T-82117-01-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
62T-82117-01-00 |
US $84.29 |
||
|
30
|
30
6R8-82117-11-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
6R8-82117-11-00 |
US $76.77 |
||
|
31
|
31
6R8-82560-00-00
Thermo Switch Assembly
ＴＨＥＲＭＯ ＳＷＩＴＣＨ ＡＳＳＹ; |
6R8-82560-00-00 |
— | ||
|
32
|
32
973-95060-16-00
Bolt, Hex
ＢＯＬＴ; |
973-95060-16-00 |
— | ||
| replacements | |||||
|
32
|
32
97095-06016-00 BoltＢＯＬＴ; |
97095-06016-00 |
US $1.52 |
||
|
32
|
32
97D95-06016-00 Bolt, Hexagon Deep RecessＢＯＬＴ; |
97D95-06016-00 |
from US $1.52 |
||
|
33
|
33
929-95061-00-00 Washer, SpringＷＡＳＨＥＲ; |
929-95061-00-00 |
from US $0.97 |
||
|
34
|
34
6R8-82117-21-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
6R8-82117-21-00 |
US $78.32 |
||
|
35
|
35
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
35
|
35
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
36
|
36
90119-08907-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08907-00 |
from US $7.08 |
||
|
37
|
37
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
37
|
37
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
