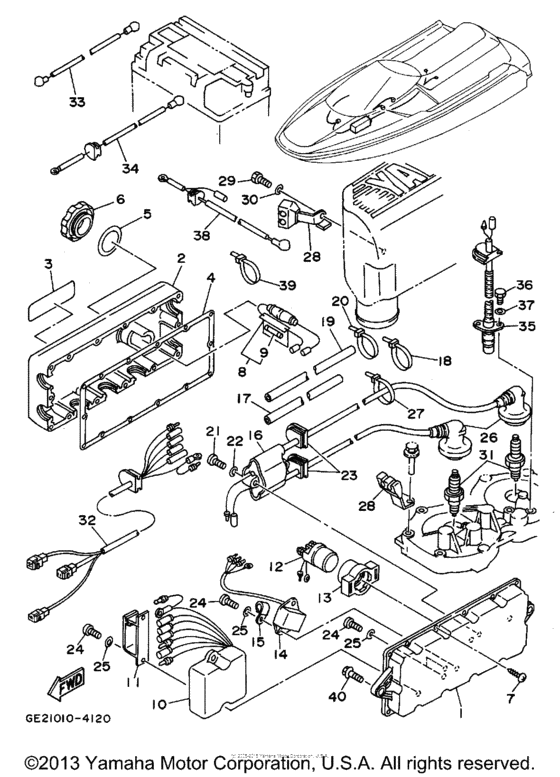

Electrical (1) Diagram Yamaha WRA700 Wave Runner lll
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6M6-8552A-01-98 Housing |
6M6-8552A-01-98 |
from US $116.47 |
||
| replacement | |||||
|
1
|
1
6M6-8552A-01-8P Housing |
6M6-8552A-01-8P |
from US $116.47 |
||
|
2
|
2
6M6-8552E-00-00 Cover, Case |
6M6-8552E-00-00 |
from US $49.18 |
||
| replacement | |||||
|
2
|
2
6M6-8552E-01-00 Cover, Case |
6M6-8552E-01-00 |
from US $49.18 |
||
|
3
|
3
6R7-83623-40-00 Mark 3 |
6R7-83623-40-00 |
from US $7.23 |
||
|
4
|
4
6M6-81921-00-00 Gasket, Terminal |
6M6-81921-00-00 |
from US $25.60 |
||
|
5
|
5
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
6
|
6
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
7
|
7
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
7
|
7
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
8
|
8
6K8-82150-01-00 Fuse Holder Assy |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
8
|
8
6K8-82150-02-00 FUSE HOLDER ASSY |
6K8-82150-02-00 |
from US $26.78 |
||
|
9
|
9
6G1-82151-00-00 Fuse (10A)10A |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $2.02 |
||
|
10
|
10
61X-85540-00-00 C.d.i. Unit Assy |
61X-85540-00-00 |
from US $608.69 |
||
| replacements | |||||
|
10
|
10
6M6-85540-01-00 C.d.i. Unit Assembly |
6M6-85540-01-00 |
from US $608.69 |
||
|
10
|
10
6M6-85540-02-00 C.d.i. Unit Assy |
6M6-85540-02-00 |
US $641.90 |
||
|
11
|
11
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
12
|
12
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
13
|
13
6M6-81952-01-00
Holder, Relay
|
6M6-81952-01-00 |
— | ||
|
14
|
14
6M6-81960-A0-00 Rectifier & Regulator Assy |
6M6-81960-A0-00 |
from US $95.28 |
||
|
15
|
15
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
16
|
16
6R8-85570-00-00
Ignition Coil Assembly
|
6R8-85570-00-00 |
— | ||
|
17
|
17
6R8-82351-00-00 Tube, Cord 2 |
6R8-82351-00-00 |
US $31.23 |
||
| replacement | |||||
|
17
|
17
6R8-82352-00-00 Tube, Cord 2 |
6R8-82352-00-00 |
US $31.23 |
||
|
18
|
18
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
18
|
18
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
18
|
18
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
19
|
19
6R8-82352-00-00 Tube, Cord 2 |
6R8-82352-00-00 |
US $31.23 |
||
|
20
|
20
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
20
|
20
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
21
|
21
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
21
|
21
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
24
|
24
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
24
|
24
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
6K8-82370-11-00 Plug Cap Assembly |
6K8-82370-11-00 |
from US $81 |
||
| replacement | |||||
|
26
|
26
63M-82370-00-00 Plug Cap Assembly |
63M-82370-00-00 |
from US $102.79 |
||
|
27
|
27
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
27
|
27
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
27
|
27
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
28
|
28
6R8-82361-00-00 Clamp, Cord |
6R8-82361-00-00 |
US $15.89 |
||
|
29
|
29
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $3.12 |
||
| replacements | |||||
|
29
|
29
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
29
|
29
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
30
|
30
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
31
|
31
NGK-BR8HS-00-00 Br8Hs Ngk Screw Top |
NGK-BR8HS-00-00 |
US $23.40 |
||
| replacement | |||||
|
31
|
31
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK) |
BR8-HS000-00-00 |
US $26.36 |
||
|
32
|
32
6R8-82553-01-00 Extension, Wire Lead |
6R8-82553-01-00 |
from US $119.99 |
||
|
33
|
33
6M6-82117-01-00 Wire, Lead |
6M6-82117-01-00 |
US $84.29 |
||
| replacement | |||||
|
33
|
33
62T-82117-01-00 Wire, Lead |
62T-82117-01-00 |
US $84.29 |
||
|
34
|
34
6R8-82117-11-00 Wire, Lead |
6R8-82117-11-00 |
US $76.77 |
||
|
35
|
35
6R8-82560-00-00
Thermo Switch Assembly
|
6R8-82560-00-00 |
— | ||
|
36
|
36
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
36
|
36
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
37
|
37
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
38
|
38
6R8-82117-21-00 Wire, Lead |
6R8-82117-21-00 |
US $78.32 |
||
|
39
|
39
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
39
|
39
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
39
|
39
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
40
|
40
90119-08907-00 Bolt, With Washer |
90119-08907-00 |
from US $7.08 |
||
