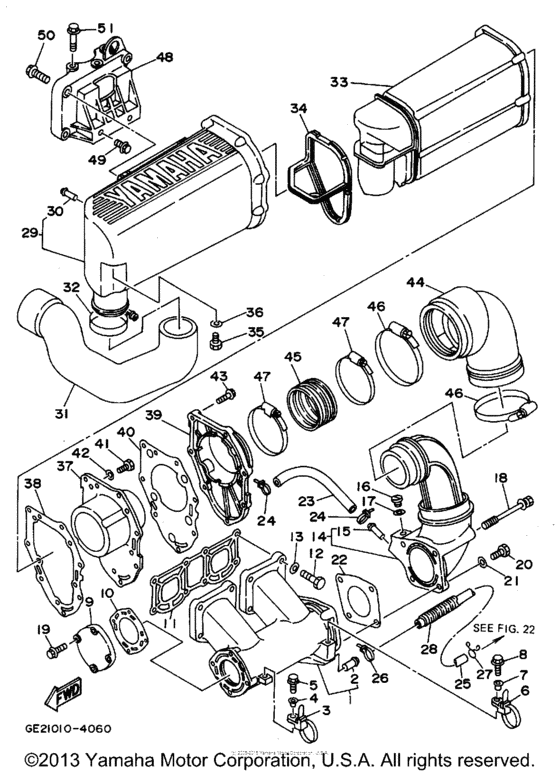

Exhaust Diagram Yamaha WRA700 Wave Runner lll
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62G-14711-00-9M
Muffler 1
|
62G-14711-00-9M |
— | ||
|
2
|
2
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
3
|
3
90465-12M53-00 Clamp |
90465-12M53-00 |
from US $3.38 |
||
|
4
|
4
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.97 |
||
|
5
|
5
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
5
|
5
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
5
|
5
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
6
|
6
90465-12M53-00 Clamp |
90465-12M53-00 |
from US $3.38 |
||
|
7
|
7
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.97 |
||
|
8
|
8
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
8
|
8
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
8
|
8
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
9
|
9
6M6-14718-01-9M Protector, Muffler 1 |
6M6-14718-01-9M |
from US $46.89 |
||
| replacement | |||||
|
9
|
9
6M6-14718-01-8S Protector, Muffler 1 |
6M6-14718-01-8S |
from US $48.63 |
||
|
10
|
10
6M6-14739-A1-00 Gasket, Muffler Damper 1 |
6M6-14739-A1-00 |
US $16.58 |
||
| replacement | |||||
|
10
|
10
6M6-14739-A2-00 Gasket, Muffler Damper 1 |
6M6-14739-A2-00 |
from US $16.15 |
||
|
11
|
11
61X-14613-A0-00 Gasket, Exhaust Pipe |
61X-14613-A0-00 |
US $25.93 |
||
| replacement | |||||
|
11
|
11
61X-14613-A1-00 Gasket, Exhaust Pipe |
61X-14613-A1-00 |
from US $25.26 |
||
|
12
|
12
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
12
|
12
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
13
|
13
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
14
|
14
61L-14712-00-9M Ring, Joint |
61L-14712-00-9M |
from US $275.37 |
||
| replacements | |||||
|
14
|
14
61L-14712-00-94
Ring, Joint
|
61L-14712-00-94 |
— | ||
|
14
|
14
61L-14712-00-00
Ring, joint
|
61L-14712-00-00 |
— | ||
|
15
|
15
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
16
|
16
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
16
|
16
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
17
|
17
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
17
|
17
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
18
|
18
90119-08M73-00 Bolt, With Washer |
90119-08M73-00 |
US $8.93 |
||
| replacement | |||||
|
18
|
18
97513-08590-00 Bolt, With Washer |
97513-08590-00 |
from US $8.08 |
||
|
19
|
19
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
19
|
19
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
19
|
19
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
20
|
20
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
21
|
21
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
22
|
22
6R7-14749-A0-00 Gasket, Muffler Damper 2 |
6R7-14749-A0-00 |
US $15.73 |
||
| replacement | |||||
|
22
|
22
6R7-14749-A1-00 Gasket, Muffler Damper 2 |
6R7-14749-A1-00 |
from US $15.16 |
||
|
23
|
23
90445-14M24-00 Hose (L380) |
90445-14M24-00 |
from US $11.33 |
||
| replacement | |||||
|
23
|
23
90445-14M25-00 Hose (L380) |
90445-14M25-00 |
from US $11.33 |
||
|
24
|
24
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
24
|
24
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
24
|
24
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
25
|
25
90445-14M14-00 Hose (L380) |
90445-14M14-00 |
from US $11.33 |
||
| replacement | |||||
|
25
|
25
90445-14M25-00 Hose (L380) |
90445-14M25-00 |
from US $11.33 |
||
|
26
|
26
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
26
|
26
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
26
|
26
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
27
|
27
90467-13M13-00 Clip |
90467-13M13-00 |
from US $1.98 |
||
|
28
|
28
90446-20M24-00 Hose |
90446-20M24-00 |
from US $6.66 |
||
|
29
|
29
6R7-14721-00-9M Muffler 2 |
6R7-14721-00-9M |
from US $344.02 |
||
| replacement | |||||
|
29
|
29
6R7-14721-00-8S Muffler 2 |
6R7-14721-00-8S |
from US $344.02 |
||
|
30
|
30
6R7-14485-00-00 Pipe, Joint |
6R7-14485-00-00 |
from US $8.93 |
||
|
31
|
31
6R8-14752-00-00 Pipe, Outlet |
6R8-14752-00-00 |
US $186.66 |
||
|
32
|
32
90460-58M12-00 Hose Clamp Assy |
90460-58M12-00 |
from US $8.08 |
||
| replacement | |||||
|
32
|
32
90450-94001-00 Hose Clamp Assy |
90450-94001-00 |
from US $8.08 |
||
|
33
|
33
6R7-14753-00-9M Silencer, Exhaust |
6R7-14753-00-9M |
from US $237.64 |
||
| replacement | |||||
|
33
|
33
6R7-14753-00-8S Silencer, Exhaust |
6R7-14753-00-8S |
from US $237.64 |
||
|
34
|
34
6R7-15761-00-00 Seal, Rubber 1 |
6R7-15761-00-00 |
from US $17.99 |
||
|
35
|
35
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
35
|
35
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
36
|
36
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
37
|
37
6R7-14785-00-9M Diffuser |
6R7-14785-00-9M |
from US $100.03 |
||
| replacement | |||||
|
37
|
37
6R7-14785-00-8S Diffuser |
6R7-14785-00-8S |
from US $100.03 |
||
|
38
|
38
6R7-14755-A0-00 Gasket, Silencer |
6R7-14755-A0-00 |
from US $15.87 |
||
|
39
|
39
6R7-41113-00-9M Outer Cover, Exhaust |
6R7-41113-00-9M |
from US $88.01 |
||
| replacement | |||||
|
39
|
39
6R7-41113-00-8S Outer Cover, Exhaust |
6R7-41113-00-8S |
from US $88.01 |
||
|
40
|
40
6R7-41114-A0-00 Gasket, Exhaust Outer Cover |
6R7-41114-A0-00 |
from US $23.31 |
||
|
41
|
41
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
41
|
41
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
42
|
42
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
43
|
43
90119-06MA1-00 Bolt W/washer (63M)63M |
90119-06MA1-00 |
from US $3.12 |
||
| replacements | |||||
|
43
|
43
90119-06M06-00
Bolt, With Washer
63M |
90119-06M06-00 |
— | ||
|
43
|
43
97513-06530-00 Bolt W/washer (63M)63M |
97513-06530-00 |
from US $3.12 |
||
|
44
|
44
61L-14615-00-00 Joint, Exhaust 1 |
61L-14615-00-00 |
from US $95.19 |
||
|
45
|
45
61L-14625-00-00 Joint, Exhaust 2 |
61L-14625-00-00 |
from US $97.18 |
||
|
46
|
46
90460-90M11-00 Clamp, Hose |
90460-90M11-00 |
from US $33.72 |
||
|
47
|
47
90460-70M16-00 Clamp, Hose |
90460-70M16-00 |
from US $30.32 |
||
|
48
|
48
6M6-14771-00-94 Stay, Muffler 1 |
6M6-14771-00-94 |
from US $101.63 |
||
| replacement | |||||
|
48
|
48
6M6-14771-00-00 Stay, Muffler 1 |
6M6-14771-00-00 |
from US $109.98 |
||
|
49
|
49
90105-10M49-00 Bolt, Washer Based |
90105-10M49-00 |
from US $4.68 |
||
|
50
|
50
90105-10M45-00 Bolt, Flange(L=36.5, P=1.25X2) |
90105-10M45-00 |
from US $4.96 |
||
|
51
|
51
90119-10M72-00 Bolt, With Washer |
90119-10M72-00 |
from US $2.50 |
||
