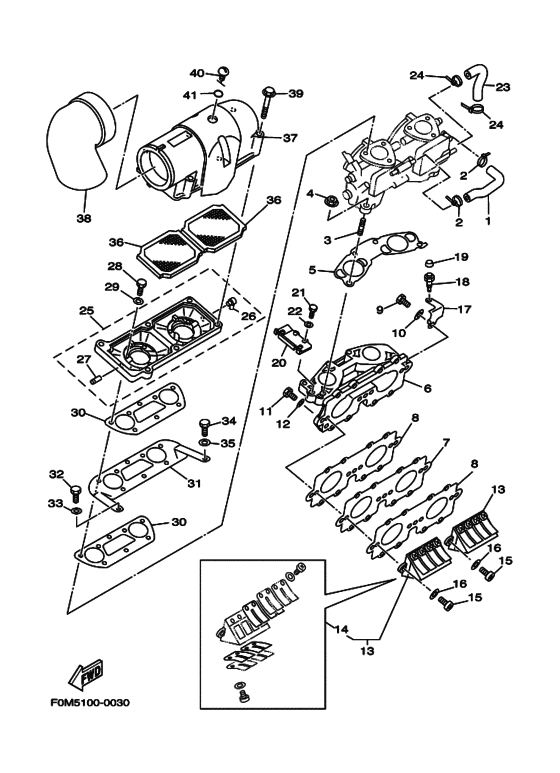

Intake Diagram Yamaha XL700 XL700
- Model code
- F0MH
- Engine Capacity
- 700
- Year
- 2004
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62T-24313-01-00 Pipe 3ＰＩＰＥ ３; |
62T-24313-01-00 |
from US $14.15 |
||
|
2
|
2
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
2
|
2
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
2
|
2
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.34 |
||
|
3
|
3
90116-08M60-00 Bolt, StudＢＯＬＴ， ＳＴＵＤ; |
90116-08M60-00 |
from US $7.51 |
||
|
4
|
4
90179-08M15-00 NutＮＵＴ; |
90179-08M15-00 |
from US $3.68 |
||
|
5
|
5
62T-13556-00-00 Gasket, ManifoldＧＡＳＫＥＴ， ＭＡＮＩＦＯＬＤ; |
62T-13556-00-00 |
from US $11.92 |
||
|
6
|
6
62T-13555-00-94 Manifold, IntakeＭＡＮＩＦＯＬＤ， ＩＮＴＡＫＥ; |
62T-13555-00-94 |
from US $136.67 |
||
| replacement | |||||
|
6
|
6
62T-13555-00-00 Manifold, IntakeＭＡＮＩＦＯＬＤ， ＩＮＴＡＫＥ; |
62T-13555-00-00 |
from US $171.32 |
||
|
7
|
7
62T-13624-00-00 Plate, Reed ValveＰＬＡＴＥ，ＲＥＥＤ ＶＡＬＶＥ; |
62T-13624-00-00 |
from US $16.15 |
||
|
8
|
8
62T-13566-00-00 GasketＧＡＳＫＥＴ; |
62T-13566-00-00 |
from US $8.28 |
||
|
9
|
9
970-13060-35-00 Bolt, HexagonＢＯＬＴ; |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
9
|
9
970-14060-35-00 Bolt, HexagonＢＯＬＴ; |
970-14060-35-00 |
from US $2.41 |
||
|
10
|
10
929-03066-00-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
97013-06025-00 BoltＢＯＬＴ; |
97013-06025-00 |
from US $1.48 |
||
|
12
|
12
929-03066-00-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
62T-13610-00-00 Reed Valve AssyＲＥＥＤ ＶＡＬＶＥ ＡＳＳＹ; |
62T-13610-00-00 |
from US $127.96 |
||
|
14
|
14
62T-W0004-00-00 Reed SetＲＥＥＤ ＳＥＴ; |
62T-W0004-00-00 |
from US $54.44 |
||
|
15
|
15
97880-05016-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
15
|
15
97885-05016-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97885-05016-00 |
from US $3.12 |
||
|
16
|
16
92990-05600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92990-05600-00 |
from US $1.07 |
||
|
17
|
17
62T-14243-01-00 PlateＰＬＡＴＥ; |
62T-14243-01-00 |
from US $8.78 |
||
|
18
|
18
61L-5169A-00-00 Nipple, GreaseＮＩＰＰＬＥ， ＧＲＥＡＳＥ; |
61L-5169A-00-00 |
from US $8.22 |
||
|
19
|
19
663-45119-00-00 Cap, Grease NippleＣＡＰ， ＧＲＥＡＳＥ ＮＩＰＰＬＥ; |
663-45119-00-00 |
US $3.68 |
||
|
20
|
20
62T-14527-02-00 PlateＰＬＡＴＥ; |
62T-14527-02-00 |
from US $18.84 |
||
|
21
|
21
97013-06016-00 BoltＢＯＬＴ; |
97013-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
21
|
21
97095-06016-00 BoltＢＯＬＴ; |
97095-06016-00 |
from US $1.28 |
||
|
21
|
21
97014-06016-00 Bolt, HexagonＢＯＬＴ; |
97014-06016-00 |
from US $1.28 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep RecessＢＯＬＴ; |
97D95-06016-00 |
from US $1.28 |
||
|
22
|
22
929-03066-00-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
62T-24314-01-00 Pipe 4ＰＩＰＥ ４; |
62T-24314-01-00 |
from US $5.96 |
||
|
24
|
24
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
24
|
24
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
24
|
24
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.34 |
||
|
25
|
25
62T-14284-01-8S Cover, Carburetor 2ＣＯＶＥＲ， ＣＡＲＢＵＲＥＴＯＲ ２; |
62T-14284-01-8S |
from US $134.98 |
||
|
26
|
26
6E5-11372-00-00 Nipple, HoseＮＩＰＰＬＥ， ＨＯＳＥ; |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
26
|
26
6E5-11372-01-00 Nipple, HoseＮＩＰＰＬＥ， ＨＯＳＥ; |
6E5-11372-01-00 |
from US $7.28 |
||
|
27
|
27
6H1-14485-00-00 Pipe, JointＰＩＰＥ， ＪＯＩＮＴ; |
6H1-14485-00-00 |
from US $5.38 |
||
|
28
|
28
97013-06020-00 BoltＢＯＬＴ; |
97013-06020-00 |
from US $1.42 |
||
|
29
|
29
929-03066-00-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
62T-13674-00-00 Gasket, Air Cooler Cover 1ＧＡＳＫＥＴ， ＡＩＲ ＣＯＯＬＥＲ ＣＯＶＥＲ １; |
62T-13674-00-00 |
from US $4.64 |
||
|
31
|
31
62T-14255-00-00 PlateＰＬＡＴＥ; |
62T-14255-00-00 |
from US $35.28 |
||
|
32
|
32
970-13060-12-00
Bolt
ＢＯＬＴ; |
970-13060-12-00 |
— | ||
| replacement | |||||
|
32
|
32
970-80060-12-00 BoltＢＯＬＴ; |
970-80060-12-00 |
from US $1.98 |
||
|
33
|
33
929-03066-00-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
33
|
33
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
34
|
34
90109-06M66-00 BoltＢＯＬＴ; |
90109-06M66-00 |
from US $8.93 |
||
|
35
|
35
90201-06M31-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-06M31-00 |
from US $1.70 |
||
|
36
|
36
62T-14451-00-00 Element, Air CleanerＥＬＥＭＥＮＴ， ＡＩＲ ＣＬＥＡＮＥＲ; |
62T-14451-00-00 |
from US $38.68 |
||
|
37
|
37
62T-14283-00-00 Cover, Carburetor 1ＣＯＶＥＲ， ＣＡＲＢＵＲＥＴＯＲ １; |
62T-14283-00-00 |
from US $46.28 |
||
| replacement | |||||
|
37
|
37
62T-14283-01-00 Cover, Carburetor 1ＣＯＶＥＲ， ＣＡＲＢＵＲＥＴＯＲ １; |
62T-14283-01-00 |
from US $42.98 |
||
|
38
|
38
62T-14419-00-00 PipeＰＩＰＥ; |
62T-14419-00-00 |
from US $57.20 |
||
|
39
|
39
90119-05M02-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-05M02-00 |
from US $4.25 |
||
|
40
|
40
62T-14435-00-00 GrommetＧＲＯＭＭＥＴ; |
62T-14435-00-00 |
from US $4.53 |
||
|
41
|
41
93210-13M63-00 O-RingＯ−ＲＩＮＧ; |
93210-13M63-00 |
from US $1.84 |
||
