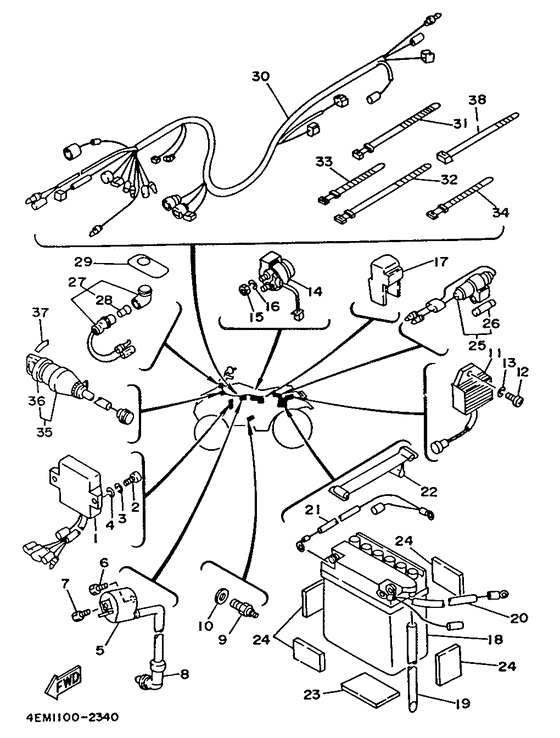

Electrical 1 Diagram Yamaha BADGER
- Model code
- 4EM2
- Engine Capacity
- 79
- Year
- 1992
- Sales region
- Europe (General) (999)
- Colour
- Very Pale Blue Solid 1 (VPBS1; 0265)
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4EM-85540-00-00 C.d.i. Unit Assembly |
4EM-85540-00-00 |
US $355.66 |
||
|
02
|
02
98501-06020-00 Screw, Pan Head(3Bc) |
98501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
02
|
02
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
03
|
03
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
05
|
05
2UV-82310-M0-00 Ignition Coil Assy |
2UV-82310-M0-00 |
from US $58.88 |
||
| replacements | |||||
|
05
|
05
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
05
|
05
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
05
|
05
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
06
|
06
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
06
|
06
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
06
|
06
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
07
|
07
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
08
|
08
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
08
|
08
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $32.87 |
||
|
08
|
08
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $29.10 |
||
|
09
|
09
3GB-82540-00-00 Neutral Switch Assy |
3GB-82540-00-00 |
from US $18.42 |
||
| replacement | |||||
|
09
|
09
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
10
|
10
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
11
|
11
3GB-81960-00-00 Rectifier & Regulator Assembly |
3GB-81960-00-00 |
from US $100.10 |
||
|
12
|
12
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.55 |
||
| replacement | |||||
|
12
|
12
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
13
|
13
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
15
|
15
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
15
|
15
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
15
|
15
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
1RL-81950-91-00 Relay Assy (1Rl-92) |
1RL-81950-91-00 |
from US $57.75 |
||
| replacements | |||||
|
17
|
17
12R-81950-01-00 Relay Assy (12R-01) |
12R-81950-01-00 |
from US $57.75 |
||
|
17
|
17
12R-81950-02-00 RELAY ASSY |
12R-81950-02-00 |
from US $50.92 |
||
|
18
|
18
55X-82110-G0-00
Battery Assy
|
55X-82110-G0-00 |
— | ||
| replacements | |||||
|
18
|
18
12N-73BG0-00-00
BLANK KEY 1215
|
12N-73BG0-00-00 |
— | ||
|
18
|
18
12N-7D3B0-00-00 Bat 12N7D-3B (12N7D-3B) Yu |
12N-7D3B0-00-00 |
US $62.64 |
||
|
19
|
19
90445-085E0-00 Hose (L1500) |
90445-085E0-00 |
from US $10.91 |
||
| replacement | |||||
|
19
|
19
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
20
|
20
55X-82115-00-00 Wire, Plus Lead |
55X-82115-00-00 |
from US $19.40 |
||
| replacement | |||||
|
20
|
20
55X-82115-01-00 Wire, Plus Lead |
55X-82115-01-00 |
US $27.86 |
||
|
21
|
21
3GB-82116-00-00 Wire, Minus Lead |
3GB-82116-00-00 |
from US $17.50 |
||
|
22
|
22
4J2-82131-01-00 Band, Battery |
4J2-82131-01-00 |
from US $13.74 |
||
|
23
|
23
55X-82122-00-00 Seat, Battery |
55X-82122-00-00 |
from US $3.82 |
||
|
24
|
24
29W-82123-00-00 Damper 1 |
29W-82123-00-00 |
from US $2.25 |
||
| replacement | |||||
|
24
|
24
1UY-21638-00-00 Damper 1 |
1UY-21638-00-00 |
from US $2.98 |
||
|
25
|
25
3GB-82150-00-00 Fuse Holder Assy |
3GB-82150-00-00 |
from US $28.05 |
||
|
26
|
26
3GB-82151-00-00 Fuse |
3GB-82151-00-00 |
from US $1.78 |
||
| replacement | |||||
|
26
|
26
5G2-82151-00-00 Fuse |
5G2-82151-00-00 |
from US $3.68 |
||
|
27
|
27
24W-83530-00-00
Pilot Light Assy
|
24W-83530-00-00 |
— | ||
| replacement | |||||
|
27
|
27
24W-83530-10-00 Pilot Light Assy |
24W-83530-10-00 |
from US $26.07 |
||
|
28
|
28
123-83516-21-00 Bulb (12V3.4W) |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
28
|
28
123-83516-21-XX Bulb (12V-3.4W) |
123-83516-21-XX |
US $63.70 |
||
|
29
|
29
4EM-83585-10-00 Label |
4EM-83585-10-00 |
US $11.39 |
||
|
30
|
30
4EM-82590-00-00 Wire Harness Assembly |
4EM-82590-00-00 |
US $177.14 |
||
|
31
|
31
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
32
|
32
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
33
|
33
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
34
|
34
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
35
|
35
2FJ-82510-02-00 Main Switch Assembly |
2FJ-82510-02-00 |
from US $91.32 |
||
| replacement | |||||
|
35
|
35
2FJ-82510-09-00 Main Switch Assy |
2FJ-82510-09-00 |
US $117.94 |
||
|
36
|
36
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.30 |
||
|
37
|
37
29U-83585-10-00
Label
|
29U-83585-10-00 |
— | ||
|
38
|
38
1UY-82591-00-00
Clamp
|
1UY-82591-00-00 |
— | ||
