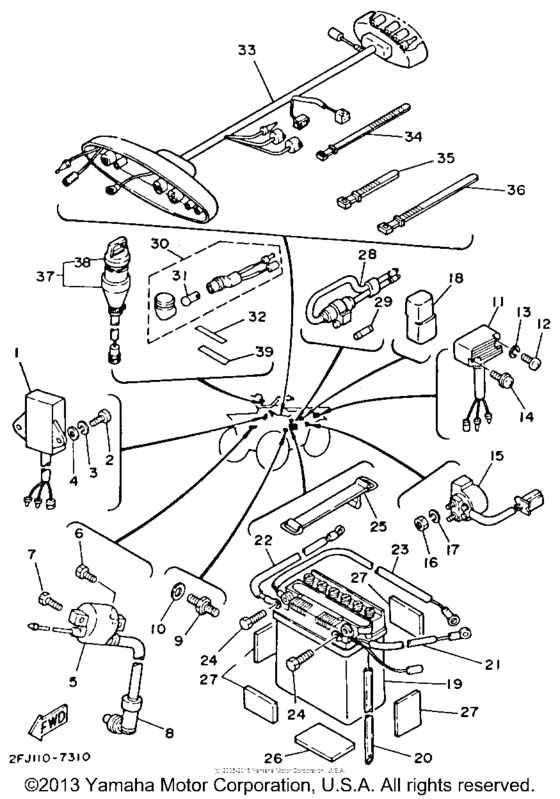

Electrical (1) Diagram Yamaha BADGER
- Model code
- YFM80T
- Engine Capacity
- 79
- Year
- 1987
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-85540-M2-00 C.d.i. Unit Assy |
55X-85540-M2-00 |
US $391.12 |
||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
5M0-82310-M0-00
Ignition Coil Assemb
|
5M0-82310-M0-00 |
— | ||
| replacements | |||||
|
5
|
5
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
5
|
5
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
5
|
5
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
5
|
5
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
US $83.79 |
||
|
6
|
6
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
8
|
8
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
8
|
8
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $32.87 |
||
|
8
|
8
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $29.10 |
||
|
9
|
9
24W-82540-00-00
Neutral Switch Assy
|
24W-82540-00-00 |
— | ||
| replacements | |||||
|
9
|
9
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
9
|
9
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
10
|
10
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
11
|
11
55X-81960-90-00
Rectifier & Regulator Assy
|
55X-81960-90-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
90159-05024-00
Screw, With Washer
|
90159-05024-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
16
|
16
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
16
|
16
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
29U-81950-93-00 Relay Assy (Aca12115-1)29U-93 |
29U-81950-93-00 |
from US $34.06 |
||
|
19
|
19
BTG-12N7D-3B-00
12N7-3B Gs Battery
GS BATTERY |
BTG-12N7D-3B-00 |
— | ||
| replacement | |||||
|
19
|
19
12N-73BG0-00-00
BLANK KEY 1215
GS BATTERY |
12N-73BG0-00-00 |
— | ||
|
20
|
20
3L5-82112-00-00
Pipe, Breather
|
3L5-82112-00-00 |
— | ||
|
21
|
21
55X-82115-00-00 Wire, Plus Lead |
55X-82115-00-00 |
from US $19.40 |
||
| replacement | |||||
|
21
|
21
55X-82115-01-00 Wire, Plus Lead |
55X-82115-01-00 |
US $27.86 |
||
|
22
|
22
55X-82116-00-00
Wire, Minus Lead
|
55X-82116-00-00 |
— | ||
| replacements | |||||
|
22
|
22
89H-82116-00-00
Wire, Minus Lead
|
89H-82116-00-00 |
— | ||
|
22
|
22
3WP-82116-00-00
Wire, Minus Lead
|
3WP-82116-00-00 |
— | ||
|
23
|
23
3GB-82116-00-00 Wire, Minus Lead |
3GB-82116-00-00 |
from US $17.50 |
||
|
24
|
24
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
25
|
25
4J2-82131-01-00 Band, Battery |
4J2-82131-01-00 |
from US $13.74 |
||
|
26
|
26
55X-82122-00-00 Seat, Battery |
55X-82122-00-00 |
from US $3.82 |
||
|
27
|
27
1UY-21638-00-00 Damper 1 |
1UY-21638-00-00 |
from US $2.98 |
||
|
28
|
28
29U-82150-00-00
Fuse Holder Assembly
|
29U-82150-00-00 |
— | ||
|
29
|
29
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $1.66 |
||
|
30
|
30
24W-83530-00-00
Pilot Light Assy
|
24W-83530-00-00 |
— | ||
| replacement | |||||
|
30
|
30
24W-83530-10-00 Pilot Light Assy |
24W-83530-10-00 |
from US $26.07 |
||
|
31
|
31
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
31
|
31
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
32
|
32
24W-83585-20-00
Label
|
24W-83585-20-00 |
— | ||
|
33
|
33
2FJ-82590-00-00 Wire Harness Assembly |
2FJ-82590-00-00 |
US $177.14 |
||
|
34
|
34
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
35
|
35
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
36
|
36
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
37
|
37
2FJ-82510-02-00 Main Switch Assembly |
2FJ-82510-02-00 |
from US $91.32 |
||
| replacement | |||||
|
37
|
37
2FJ-82510-09-00 Main Switch Assy |
2FJ-82510-09-00 |
US $117.94 |
||
|
38
|
38
24W-82579-00-00 Cap, Key |
24W-82579-00-00 |
from US $8.64 |
||
|
39
|
39
29U-83585-10-00
Label
|
29U-83585-10-00 |
— | ||
