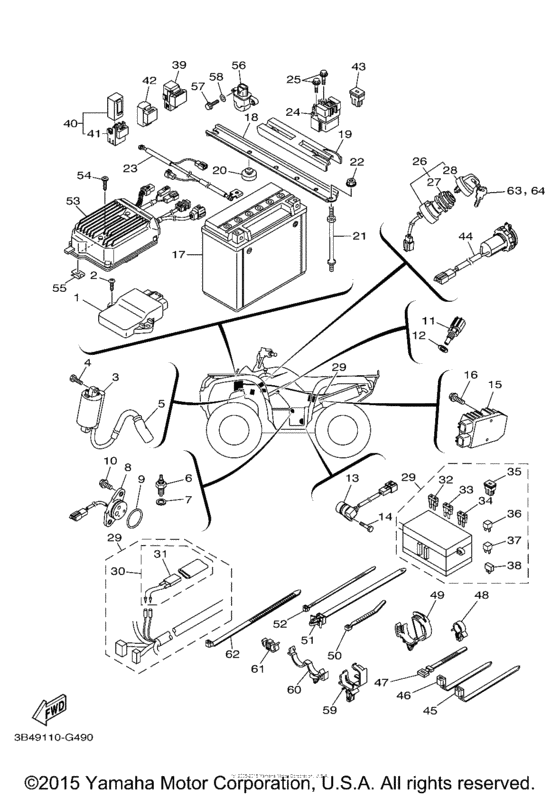

Electrical (1) Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS
- Model code
- 3B49
- Engine Capacity
- 700
- Year
- 2008
- Sales region
- USA
- Базовая модель
- YFM7FGPXR
- Colour
- Dark Purpulish Blue Solid N/Pastel Deep Green/Romantique Rouge
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-8591A-10-00 Engine Control Unit Assy |
3B4-8591A-10-00 |
from US $892.32 |
||
|
2
|
2
97702-60025-00 Screw, Tapping |
97702-60025-00 |
from US $1.56 |
||
|
3
|
3
1D7-82310-00-00 Ignition Coil Assy |
1D7-82310-00-00 |
from US $63.42 |
||
| replacements | |||||
|
3
|
3
1D7-82310-01-00 Ignition Coil Assy |
1D7-82310-01-00 |
from US $63.42 |
||
|
3
|
3
1D7-82310-02-00 Ignition Coil Assy |
1D7-82310-02-00 |
from US $59.63 |
||
|
3
|
3
1D7-82310-03-00 Ignition Coil Assy |
1D7-82310-03-00 |
from US $47.77 |
||
|
3
|
3
1D7-82310-04-00 IGNITION COIL ASSY |
1D7-82310-04-00 |
US $60.99 |
||
|
3
|
3
1D7-82310-04-00 IGNITION COIL ASSY |
1D7-82310-04-00 |
US $60.99 |
||
|
3
|
3
1D7-82310-04-00 IGNITION COIL ASSY |
1D7-82310-04-00 |
US $60.99 |
||
|
4
|
4
97002-06016-00 P53 Bolt |
97002-06016-00 |
US $1.28 |
||
| replacements | |||||
|
4
|
4
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
4
|
4
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
5
|
5
5VK-82370-00-00 Plug Cap Assy |
5VK-82370-00-00 |
from US $36.47 |
||
|
6
|
6
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
7
|
7
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
8
|
8
3B4-82540-01-00 Neutral Switch Assy |
3B4-82540-01-00 |
from US $73.09 |
||
| replacement | |||||
|
8
|
8
3B4-82540-03-00 NEUTRAL SWITCH ASSY |
3B4-82540-03-00 |
US $98.14 |
||
|
9
|
9
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.56 |
||
|
10
|
10
90119-06137-00 Bolt, With Washer |
90119-06137-00 |
from US $1.70 |
||
|
11
|
11
8CC-85790-01-00 Thermosensor Assy |
8CC-85790-01-00 |
from US $51.95 |
||
|
12
|
12
90430-12202-00 Gasket |
90430-12202-00 |
from US $1.28 |
||
|
13
|
13
3B4-83755-00-00 Sensor, Speed |
3B4-83755-00-00 |
from US $107.76 |
||
| replacement | |||||
|
13
|
13
3B4-83755-01-00 Sensor, Speed |
3B4-83755-01-00 |
from US $107.76 |
||
|
14
|
14
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
15
|
15
1D7-81960-00-00
Rectifier & Regulator Assy
|
1D7-81960-00-00 |
— | ||
| replacement | |||||
|
15
|
15
1D7-81960-01-00 Rectifier & Regulator Assy |
1D7-81960-01-00 |
from US $219.67 |
||
|
16
|
16
958-02060-20-00
Bolt, Flange
|
958-02060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
17
|
17
BTY-YTX20-LB-S0
Battery Assy (Yuasa Ytx20L-Bs)
|
BTY-YTX20-LB-S0 |
— | ||
| replacement | |||||
|
17
|
17
YTX-20LBS-00-00
Bat Ytx20L-Bs (Ptx20L-Bs) Yu
|
YTX-20LBS-00-00 |
— | ||
|
18
|
18
3B4-82128-00-00 Bracket, Battery |
3B4-82128-00-00 |
from US $12.18 |
||
| replacement | |||||
|
18
|
18
1HP-H2128-00-00 Bracket, Battery |
1HP-H2128-00-00 |
from US $11.41 |
||
|
19
|
19
3B4-82129-00-00 Cover, Battery |
3B4-82129-00-00 |
from US $5.10 |
||
|
20
|
20
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2 |
||
|
21
|
21
3B4-82133-10-00 Screw, Fitting |
3B4-82133-10-00 |
from US $18.70 |
||
|
22
|
22
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
23
|
23
3B4-82116-10-00 Wire, Minus Lead |
3B4-82116-10-00 |
from US $57.37 |
||
|
24
|
24
3B4-81940-00-00 Starter Relay Assy (2768113-A)2768113-A |
3B4-81940-00-00 |
from US $72.53 |
||
|
25
|
25
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
26
|
26
3B4-82510-00-00 Main Switch Assy |
3B4-82510-00-00 |
from US $79.11 |
||
| replacement | |||||
|
26
|
26
3B4-82510-01-00 Main Switch Assy |
3B4-82510-01-00 |
US $77.62 |
||
|
27
|
27
3HN-82569-00-00 Nut, Main Switch |
3HN-82569-00-00 |
from US $2.66 |
||
|
28
|
28
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.30 |
||
|
29
|
29
3B4-82590-20-00 Wire Harness Assy |
3B4-82590-20-00 |
from US $681.99 |
||
|
30
|
30
4GB-82180-00-00 Circuit Breaker Assy |
4GB-82180-00-00 |
from US $26.03 |
||
| replacement | |||||
|
30
|
30
5GT-82180-00-00 Circuit Breaker Assy |
5GT-82180-00-00 |
from US $29.04 |
||
|
31
|
31
4GB-82560-00-00 Thermo Switch Assy |
4GB-82560-00-00 |
from US $20.12 |
||
|
32
|
32
5JJ-82151-10-00 Fuse (15A-Bl)15A |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
32
|
32
67F-82151-50-00 Fuse (15A)15A |
67F-82151-50-00 |
from US $1.98 |
||
|
33
|
33
5JJ-82151-30-00
Fuse (10A-Bl)
10A |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
33
|
33
67F-82151-40-00 Fuse (10A)10A |
67F-82151-40-00 |
from US $1.98 |
||
|
34
|
34
5JJ-82151-90-00 Fuse - 5 A - Blade (A - BLADE |
5JJ-82151-90-00 |
US $3.54 |
||
| replacement | |||||
|
34
|
34
67F-82151-20-00 Fuse (5A)A - BLADE |
67F-82151-20-00 |
from US $2.98 |
||
|
35
|
35
5PS-82151-00-00 Slow Blow Fuse |
5PS-82151-00-00 |
from US $6.52 |
||
| replacement | |||||
|
35
|
35
JR9-82151-00-00 Fuse (40A) |
JR9-82151-00-00 |
from US $6.09 |
||
|
36
|
36
4WA-81980-00-00 Diode Assy |
4WA-81980-00-00 |
from US $15.30 |
||
|
37
|
37
5TJ-81980-00-00 Diode Assy |
5TJ-81980-00-00 |
from US $13.46 |
||
|
38
|
38
5VG-81980-00-00 Diode Assy |
5VG-81980-00-00 |
from US $11.05 |
||
|
39
|
39
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
|
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
39
|
39
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52) |
5DM-81950-01-00 |
from US $20.12 |
||
|
40
|
40
5EA-81950-20-00 Relay Assy (5Ea-02)5EA-02 |
5EA-81950-20-00 |
from US $21.68 |
||
|
41
|
41
5EA-81952-00-00 Holder, Relay |
5EA-81952-00-00 |
from US $4.39 |
||
|
42
|
42
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $34.06 |
||
|
43
|
43
5PS-82151-00-00 Slow Blow Fuse |
5PS-82151-00-00 |
from US $6.52 |
||
| replacement | |||||
|
43
|
43
JR9-82151-00-00 Fuse (40A) |
JR9-82151-00-00 |
from US $6.09 |
||
|
44
|
44
3B4-8254B-00-00 Terminal Comp |
3B4-8254B-00-00 |
from US $30.42 |
||
| replacements | |||||
|
44
|
44
1HP-H254B-00-00 Terminal Comp |
1HP-H254B-00-00 |
from US $22.66 |
||
|
44
|
44
1HP-H254B-10-00 TERMINAL COMP. |
1HP-H254B-10-00 |
from US $19.39 |
||
|
45
|
45
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
46
|
46
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
46
|
46
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
47
|
47
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
48
|
48
90464-15157-00 Clamp |
90464-15157-00 |
from US $1.70 |
||
|
49
|
49
90464-20181-00 Clamp |
90464-20181-00 |
from US $1.70 |
||
|
50
|
50
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
| replacement | |||||
|
50
|
50
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
51
|
51
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
52
|
52
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.56 |
||
|
53
|
53
3B4-859A0-10-00 Power Strg. Cont. Unit Assy |
3B4-859A0-10-00 |
from US $983.40 |
||
|
54
|
54
98902-06020-00 Screw, Bind |
98902-06020-00 |
from US $1.42 |
||
| replacement | |||||
|
54
|
54
98980-06020-00 Screw, Bind |
98980-06020-00 |
from US $1.42 |
||
|
55
|
55
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
55
|
55
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
56
|
56
3B4-82576-00-00 Sensor, Lean Angle |
3B4-82576-00-00 |
from US $59.55 |
||
|
57
|
57
97002-05016-00 Bolt |
97002-05016-00 |
from US $1.24 |
||
| replacement | |||||
|
57
|
57
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
58
|
58
92902-05600-00 Washer, Plate |
92902-05600-00 |
US $1.07 |
||
| replacements | |||||
|
58
|
58
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
58
|
58
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
59
|
59
90464-20237-00 Clamp |
90464-20237-00 |
from US $1.60 |
||
|
60
|
60
90464-20010-00 Clamp |
90464-20010-00 |
from US $1.98 |
||
|
61
|
61
90464-09013-00 Clamp |
90464-09013-00 |
from US $3.12 |
||
|
62
|
62
90464-12045-00 Band, Switch Cord |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
62
|
62
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
63
|
63
90890-56001-00 Blank Key (A-Type)UR |
90890-56001-00 |
from US $4 |
||
|
64
|
64
90890-56002-00 Blank Key (B-Type)UR |
90890-56002-00 |
from US $3.78 |
||
