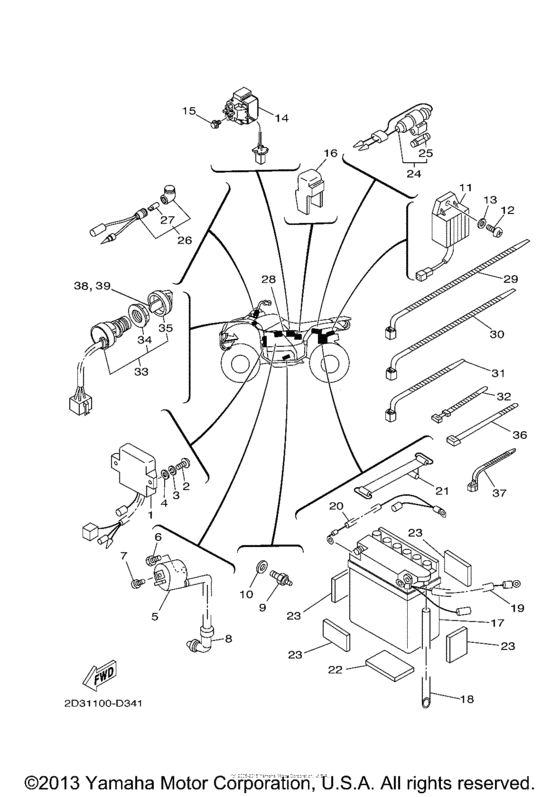

Electrical (1) Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GXGR
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4EM-85540-10-00 C.d.i. Unit Assy |
4EM-85540-10-00 |
from US $197.93 |
||
|
2
|
2
92502-06020-00 Screw, Pan Head |
92502-06020-00 |
US $1.07 |
||
| replacement | |||||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
3
|
3
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
4KJ-82310-10-00
Ignition Coil Assy
|
4KJ-82310-10-00 |
— | ||
| replacements | |||||
|
5
|
5
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
5
|
5
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
5
|
5
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
5
|
5
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
5
|
5
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
5
|
5
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
6
|
6
97002-06016-00 P53 Bolt |
97002-06016-00 |
US $1.28 |
||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
8
|
8
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
8
|
8
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $32.87 |
||
|
8
|
8
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $29.10 |
||
|
9
|
9
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
10
|
10
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
11
|
11
5TH-81960-01-00 Rectifier & Regulator Assy |
5TH-81960-01-00 |
from US $119.78 |
||
|
12
|
12
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
12
|
12
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
13
|
13
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
3MW-81940-01-00 Starter Relay Assy (Ms5E-661) |
3MW-81940-01-00 |
from US $93.17 |
||
|
15
|
15
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
16
|
16
1RL-81950-92-00 Relay Assy (1Rl-92)1RL-92 |
1RL-81950-92-00 |
from US $57.75 |
||
| replacements | |||||
|
16
|
16
12R-81950-01-00 Relay Assy (12R-01)1RL-92 |
12R-81950-01-00 |
from US $57.75 |
||
|
16
|
16
12R-81950-02-00 RELAY ASSY1RL-92 |
12R-81950-02-00 |
from US $50.92 |
||
|
17
|
17
55X-82110-61-00
12N7-3B Gs Battery
GS BATTERY |
55X-82110-61-00 |
— | ||
| replacements | |||||
|
17
|
17
12N-73BG0-00-00
BLANK KEY 1215
GS BATTERY |
12N-73BG0-00-00 |
— | ||
|
17
|
17
12N-7D3B0-00-00 Bat 12N7D-3B (12N7D-3B) YuGS BATTERY |
12N-7D3B0-00-00 |
US $62.64 |
||
|
18
|
18
90445-085E0-00 Hose (L1500) |
90445-085E0-00 |
from US $10.91 |
||
| replacement | |||||
|
18
|
18
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
19
|
19
55X-82115-01-00 Wire, Plus Lead |
55X-82115-01-00 |
US $27.86 |
||
|
20
|
20
3GB-82116-00-00 Wire, Minus Lead |
3GB-82116-00-00 |
from US $17.50 |
||
|
21
|
21
4J2-82131-01-00 Band, Battery |
4J2-82131-01-00 |
from US $13.74 |
||
|
22
|
22
55X-82122-00-00 Seat, Battery |
55X-82122-00-00 |
from US $3.82 |
||
|
23
|
23
29W-82123-00-00 Damper 1 |
29W-82123-00-00 |
from US $2.25 |
||
| replacement | |||||
|
23
|
23
1UY-21638-00-00 Damper 1 |
1UY-21638-00-00 |
from US $2.98 |
||
|
24
|
24
3GB-82150-00-00 Fuse Holder Assy |
3GB-82150-00-00 |
from US $28.05 |
||
|
25
|
25
3GB-82151-00-00 Fuse |
3GB-82151-00-00 |
from US $1.78 |
||
| replacement | |||||
|
25
|
25
5G2-82151-00-00 Fuse |
5G2-82151-00-00 |
from US $3.68 |
||
|
26
|
26
4KB-83530-00-00 Pilot Light Assy |
4KB-83530-00-00 |
from US $18.14 |
||
| replacement | |||||
|
26
|
26
4KB-83530-01-00 Pilot Light Assy |
4KB-83530-01-00 |
from US $13.80 |
||
|
27
|
27
5GH-83516-00-00 Bulb (12V-1.7W)12V-1.7W T6.5 |
5GH-83516-00-00 |
from US $4.53 |
||
| replacement | |||||
|
27
|
27
3FV-83517-00-00 Bulb (12V-1.7W)12V-1.7W T6.5 |
3FV-83517-00-00 |
from US $3.32 |
||
|
28
|
28
5TH-82590-00-00
Wire Harness Assy
|
5TH-82590-00-00 |
— | ||
|
29
|
29
90460-15126-00 Clamp, Hose |
90460-15126-00 |
from US $1.56 |
||
|
30
|
30
90464-12045-00 Band, Switch Cord |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
30
|
30
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
31
|
31
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
31
|
31
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
32
|
32
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
33
|
33
4GB-82510-11-00 Main Switch Assy |
4GB-82510-11-00 |
from US $74.47 |
||
| replacement | |||||
|
33
|
33
4GB-82510-12-00 Main Switch Assy |
4GB-82510-12-00 |
US $72.76 |
||
|
34
|
34
3HN-82569-00-00 Nut, Main Switch |
3HN-82569-00-00 |
from US $2.66 |
||
|
35
|
35
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.30 |
||
|
36
|
36
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
| replacement | |||||
|
36
|
36
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
37
|
37
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
