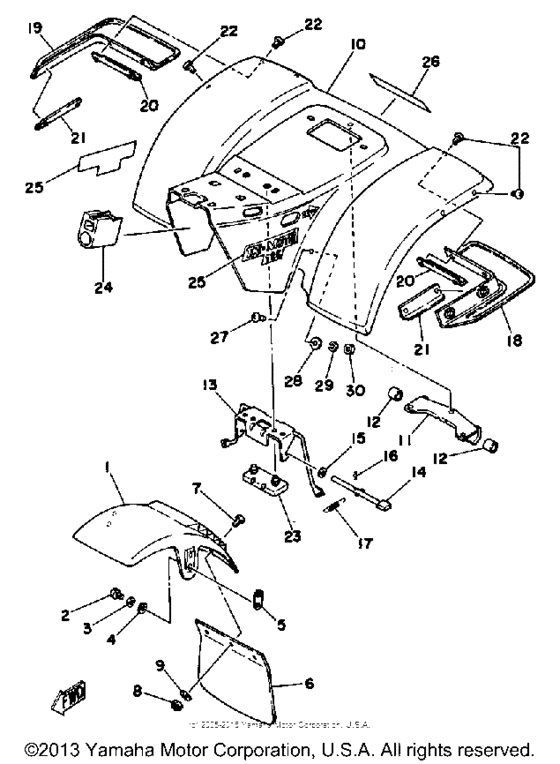

Front fender - rear fender Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125G
- Engine Capacity
- 123
- Year
- 1980
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3X3-21511-00-00
Fender, Front
|
3X3-21511-00-00 |
— | ||
|
2
|
2
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
2
|
2
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
2
|
2
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
90201-06643-00 Washer, Plate |
90201-06643-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
|
5
|
5
3X3-21515-00-00
Washer, Special
|
3X3-21515-00-00 |
— | ||
|
6
|
6
3X3-21521-00-00
Flap, Front Fender
|
3X3-21521-00-00 |
— | ||
|
7
|
7
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
8
|
8
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
8
|
8
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
9
|
9
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
10
|
10
3X3-21611-00-00
Fender, Rear
|
3X3-21611-00-00 |
— | ||
|
11
|
11
3X3-21612-00-00
Bracket, Rr Fender
RR FENDER |
3X3-21612-00-00 |
— | ||
|
12
|
12
3X3-21638-00-00
Damper 1
|
3X3-21638-00-00 |
— | ||
|
13
|
13
3X3-21665-00-00
Guide, Mud Guard
|
3X3-21665-00-00 |
— | ||
|
14
|
14
3X3-21613-00-00
Stay, Fender 1
|
3X3-21613-00-00 |
— | ||
|
15
|
15
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
15
|
15
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
16
|
16
90468-16099-00 Clip |
90468-16099-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
90468-16192-00 Clip |
90468-16192-00 |
from US $1.98 |
||
|
17
|
17
905-06121-16-00
Spring, Tension
|
905-06121-16-00 |
— | ||
|
18
|
18
3X3-21621-00-00
Flap
|
3X3-21621-00-00 |
— | ||
|
19
|
19
3X3-21691-00-00
Flap
|
3X3-21691-00-00 |
— | ||
|
20
|
20
3X3-21623-00-00
Plate, Flap Ftng 1
|
3X3-21623-00-00 |
— | ||
|
21
|
21
3X3-21624-00-00
Plate, Flap Ftng 2
|
3X3-21624-00-00 |
— | ||
|
22
|
22
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
23
|
23
3X3-21639-00-00
Damper 2
|
3X3-21639-00-00 |
— | ||
|
24
|
24
3X3-21649-00-00
Damper
|
3X3-21649-00-00 |
— | ||
|
25
|
25
3X3-21783-00-00
Emblem 3
|
3X3-21783-00-00 |
— | ||
|
26
|
26
3X3-21784-00-00
Emblem 4
|
3X3-21784-00-00 |
— | ||
|
27
|
27
98980-06020-00 Screw, Bind |
98980-06020-00 |
from US $1.42 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
28
|
28
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
29
|
29
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
30
|
30
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
