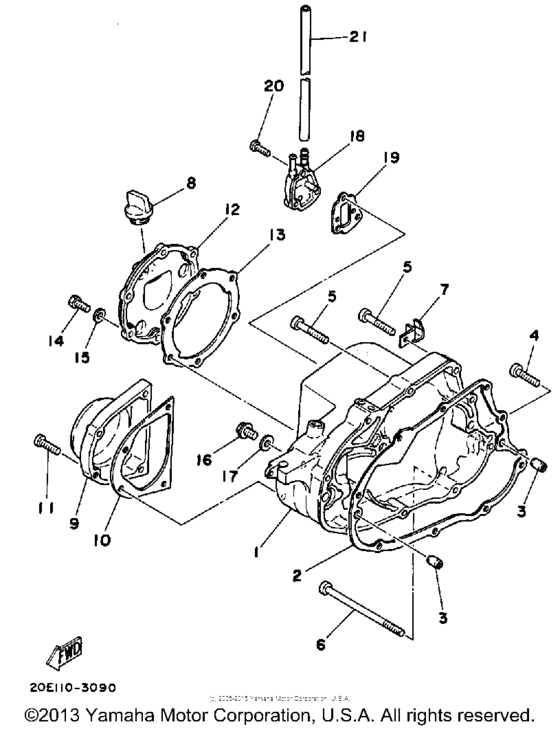

Crankcase cover Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125K
- Engine Capacity
- 123
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V6-15431-02-00
Cover, Crankcase 3
|
5V6-15431-02-00 |
— | ||
|
2
|
2
18G-15451-01-00 Gskt, Crcs |
18G-15451-01-00 |
from US $14.17 |
||
| replacement | |||||
|
2
|
2
18G-15451-03-00 Gasket, Crankcase Cover 1 |
18G-15451-03-00 |
from US $11.60 |
||
|
3
|
3
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
3
|
3
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
4
|
4
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
5
|
5
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.21 |
||
|
6
|
6
925-01061-15-00
Screw,pan Head
|
925-01061-15-00 |
— | ||
| replacements | |||||
|
6
|
6
985-07061-15-00
SCREW
|
985-07061-15-00 |
— | ||
|
6
|
6
985-01061-15-00
New Genuine Part
|
985-01061-15-00 |
— | ||
|
7
|
7
90465-06176-00
Clamp
|
90465-06176-00 |
— | ||
|
8
|
8
116-15363-00-00
Plug, Oil
|
116-15363-00-00 |
— | ||
|
9
|
9
3X3-15416-00-00
Cover, Oil Pump
|
3X3-15416-00-00 |
— | ||
| replacement | |||||
|
9
|
9
2A6-15416-00-00
Cover, Oil Pump
|
2A6-15416-00-00 |
— | ||
|
10
|
10
2A6-15456-00-00 Gasket, O/pmp Cur1 |
2A6-15456-00-00 |
from US $15.30 |
||
| replacement | |||||
|
10
|
10
2A6-15456-01-00 Gasket, Oil Pump Cover 1 |
2A6-15456-01-00 |
from US $15.30 |
||
|
11
|
11
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
12
|
12
3X3-15429-01-00
Cover, Shifter (3X3-15429-00)
3X3-15429-00 |
3X3-15429-01-00 |
— | ||
|
13
|
13
3X3-15459-00-00
Gasket,shftr Cover
|
3X3-15459-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3X3-15459-10-00
DRUM,SHEAVE
|
3X3-15459-10-00 |
— | ||
|
14
|
14
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
90201-06600-00
Washer, Plate
|
90201-06600-00 |
— | ||
|
16
|
16
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
17
|
17
90430-08023-00
Gasket
|
90430-08023-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
3X3-15417-00-00
Cover, Cap
|
3X3-15417-00-00 |
— | ||
|
19
|
19
3X3-15343-00-00
Gasket, Drain
|
3X3-15343-00-00 |
— | ||
| replacement | |||||
|
19
|
19
3X3-15343-10-00
element
|
3X3-15343-10-00 |
— | ||
|
20
|
20
989-01050-18-00 Screw, Bind(Ga5) |
989-01050-18-00 |
from US $2.41 |
||
| replacement | |||||
|
20
|
20
98980-05018-00 Screw, Bind |
98980-05018-00 |
from US $2.41 |
||
|
21
|
21
90446-09155-00 Tube, Flexible Vinyl |
90446-09155-00 |
US $11.05 |
||
| replacement | |||||
|
21
|
21
91A20-05145-00 Tube, Flexible Vinyl |
91A20-05145-00 |
from US $11.05 |
||
