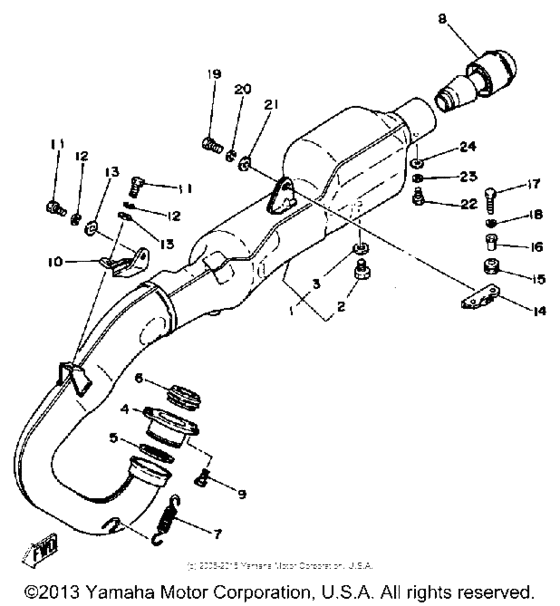

Exhaust Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20E-14610-00-00
Exhaust Pipe Assembly L
|
20E-14610-00-00 |
— | ||
|
2
|
2
97301-10014-00 Bolt, Hexagon |
97301-10014-00 |
US $4.53 |
||
| replacement | |||||
|
2
|
2
97027-10014-00 Bolt, Hexagon |
97027-10014-00 |
from US $4.53 |
||
|
3
|
3
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
4
|
4
5V7-14622-01-00
Nut, Ring
|
5V7-14622-01-00 |
— | ||
|
5
|
5
5V7-14633-00-00
Ring
|
5V7-14633-00-00 |
— | ||
|
6
|
6
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.35 |
||
|
7
|
7
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2 |
||
|
8
|
8
5V7-14752-00-00
Pipe, Outlet
|
5V7-14752-00-00 |
— | ||
|
9
|
9
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
9
|
9
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
9
|
9
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
10
|
10
2A6-14772-00-00
Stay, Muffler 2
|
2A6-14772-00-00 |
— | ||
| replacement | |||||
|
10
|
10
2A6-14772-01-00 Stay, Muffler 2 |
2A6-14772-01-00 |
from US $13.24 |
||
|
11
|
11
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
11
|
11
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
13
|
13
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
14
|
14
5V7-14771-00-00
Stay, Muffler 1
|
5V7-14771-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
16
|
16
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
16
|
16
90387-06158-00 Collar |
90387-06158-00 |
from US $1.56 |
||
|
17
|
17
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
17
|
17
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
19
|
19
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
20
|
20
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
21
|
21
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
22
|
22
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
22
|
22
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
24
|
24
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
