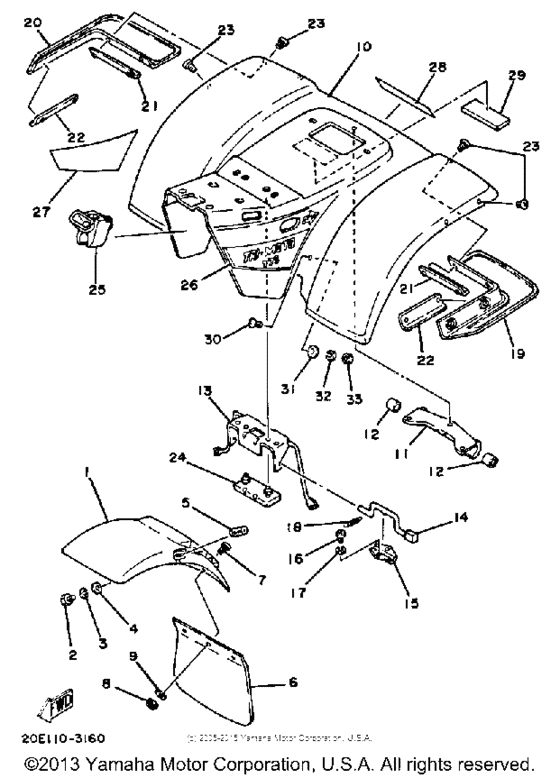

Front fender - rear fender Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175K
- Engine Capacity
- 175
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V7-21511-00-00
Fender, Front
|
5V7-21511-00-00 |
— | ||
|
2
|
2
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
2
|
2
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
2
|
2
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
90201-06643-00 Washer, Plate |
90201-06643-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
|
5
|
5
5V7-21515-00-00
Washer, Special
|
5V7-21515-00-00 |
— | ||
|
6
|
6
3X3-21521-00-00
Flap, Front Fender
|
3X3-21521-00-00 |
— | ||
|
7
|
7
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
8
|
8
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
8
|
8
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
9
|
9
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
10
|
10
3X3-21611-00-00
Fender, Rear
|
3X3-21611-00-00 |
— | ||
|
11
|
11
3X3-21612-00-00
Bracket, Rr Fender
RR FENDER |
3X3-21612-00-00 |
— | ||
|
12
|
12
3X3-21638-00-00
Damper 1
|
3X3-21638-00-00 |
— | ||
|
13
|
13
5V6-21665-00-00
Guide, Mud Guard
|
5V6-21665-00-00 |
— | ||
|
14
|
14
5V6-21613-00-00
Stay, Fender 1
|
5V6-21613-00-00 |
— | ||
|
15
|
15
5V6-21614-00-00
Stay, Fender 2
|
5V6-21614-00-00 |
— | ||
|
16
|
16
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
905-06121-16-00
Spring, Tension
|
905-06121-16-00 |
— | ||
|
19
|
19
3X3-21621-00-00
Flap
|
3X3-21621-00-00 |
— | ||
|
20
|
20
3X3-21691-00-00
Flap
|
3X3-21691-00-00 |
— | ||
|
21
|
21
3X3-21623-00-00
Plate, Flap Ftng 1
|
3X3-21623-00-00 |
— | ||
|
22
|
22
3X3-21624-00-00
Plate, Flap Ftng 2
|
3X3-21624-00-00 |
— | ||
|
23
|
23
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
24
|
24
5V6-21639-00-00
Damper 2
|
5V6-21639-00-00 |
— | ||
|
25
|
25
5V6-21649-00-00
Damper
|
5V6-21649-00-00 |
— | ||
|
26
|
26
20E-21782-00-00
Emblem 2
|
20E-21782-00-00 |
— | ||
|
27
|
27
20E-21783-00-00
Emblem 3
|
20E-21783-00-00 |
— | ||
|
28
|
28
20E-21784-00-00
Emblem 4
|
20E-21784-00-00 |
— | ||
|
29
|
29
5V6-21655-00-00
Patch 1
|
5V6-21655-00-00 |
— | ||
|
30
|
30
98980-06020-00 Screw, Bind |
98980-06020-00 |
from US $1.42 |
||
|
31
|
31
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
31
|
31
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
31
|
31
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
32
|
32
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
33
|
33
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
