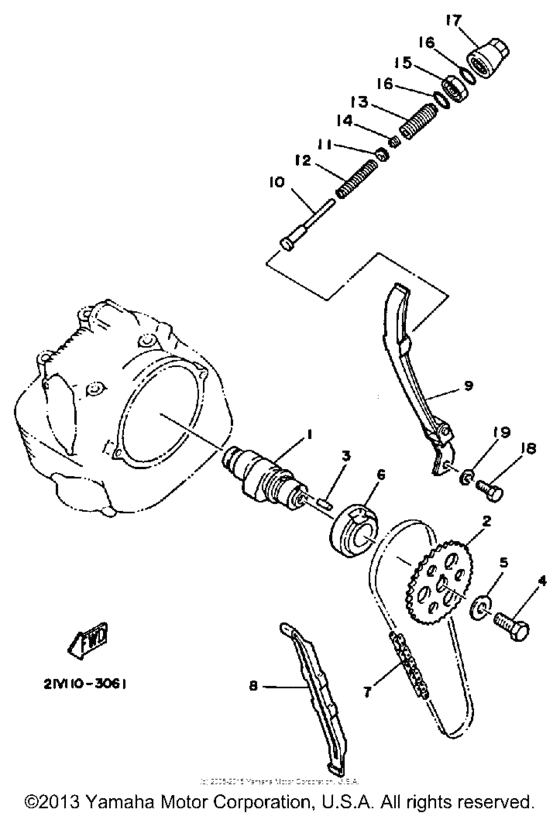

Camshaft-chain Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5N0-12171-01-00 Camshaft 1 |
5N0-12171-01-00 |
from US $204.48 |
||
| replacements | |||||
|
1
|
1
5N0-12171-10-00 Camshaft 1 |
5N0-12171-10-00 |
from US $204.48 |
||
|
1
|
1
5N0-12171-11-00 |
5N0-12171-11-00 |
US $151.47 |
||
|
2
|
2
5H0-12176-00-00 Sprocket, Cam Chain (40T)40T |
5H0-12176-00-00 |
from US $9.60 |
||
|
3
|
3
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.34 |
||
|
4
|
4
90101-10303-00 Bolt |
90101-10303-00 |
from US $3.40 |
||
|
5
|
5
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
|
6
|
6
90387-255F3-00 Collar |
90387-255F3-00 |
from US $24.65 |
||
|
7
|
7
945-80411-04-00 Chain (Did25Sh 104L)104L |
945-80411-04-00 |
from US $38.55 |
||
|
8
|
8
5H0-12231-00-00 Guide, Stopper 1 |
5H0-12231-00-00 |
from US $25.33 |
||
| replacement | |||||
|
8
|
8
5H0-12231-01-00 GUIDE STOPPER 1 |
5H0-12231-01-00 |
from US $19.18 |
||
|
9
|
9
5N0-12241-00-00 Guide, Stopper 2 |
5N0-12241-00-00 |
from US $42 |
||
| replacement | |||||
|
9
|
9
5N0-12241-01-00 |
5N0-12241-01-00 |
US $63.70 |
||
|
10
|
10
25A-12217-00-00 Rod, Chain Tensioner |
25A-12217-00-00 |
US $8.53 |
||
|
11
|
11
3Y1-12232-00-00 Damper |
3Y1-12232-00-00 |
from US $13.46 |
||
|
12
|
12
90501-10587-00 Spring, Compression |
90501-10587-00 |
from US $2.69 |
||
|
13
|
13
90149-14182-00 Screw |
90149-14182-00 |
from US $10.17 |
||
|
14
|
14
90501-22721-00 Spring, Compression |
90501-22721-00 |
from US $1.84 |
||
|
15
|
15
90179-14298-00 Nut |
90179-14298-00 |
from US $5.38 |
||
|
16
|
16
932-10166-29-00 O-Ring |
932-10166-29-00 |
from US $1.70 |
||
|
17
|
17
3Y1-12212-00-00 Case, Chain Tensioner |
3Y1-12212-00-00 |
from US $10.30 |
||
|
18
|
18
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
18
|
18
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.28 |
||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
19
|
19
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
