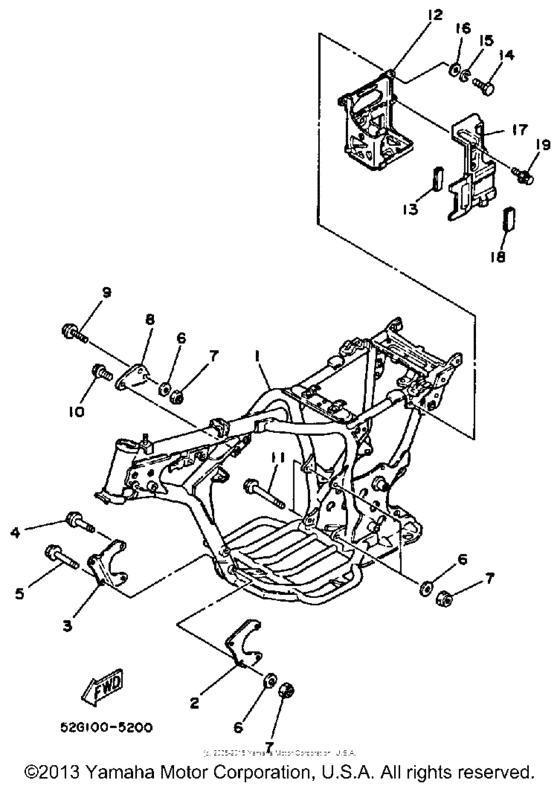

Frame Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24W-21110-01-33
Frame
|
24W-21110-01-33 |
— | ||
|
2
|
2
24W-21316-00-00
Stay, Engine 3
|
24W-21316-00-00 |
— | ||
|
3
|
3
24W-21317-00-00
Stay, Engine 4
|
24W-21317-00-00 |
— | ||
|
4
|
4
95811-08065-00 Bolt, Flange |
95811-08065-00 |
from US $3.02 |
||
| replacements | |||||
|
4
|
4
95814-08065-00 Bolt, Flange |
95814-08065-00 |
from US $3.54 |
||
|
4
|
4
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $4.79 |
||
|
5
|
5
95811-08075-00 Bolt, Flange |
95811-08075-00 |
from US $1.98 |
||
| replacement | |||||
|
5
|
5
95817-08075-00 Bolt, Flange |
95817-08075-00 |
from US $1.98 |
||
|
6
|
6
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
7
|
7
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
8
|
8
24W-21315-00-00
Stay, Engine 2
|
24W-21315-00-00 |
— | ||
|
9
|
9
95811-08050-00 Bolt, Flange (26H) |
95811-08050-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.56 |
||
|
10
|
10
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
11
|
11
95811-08105-00 Bolt, Flange |
95811-08105-00 |
from US $7.15 |
||
| replacement | |||||
|
11
|
11
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
12
|
12
24W-21170-00-00
Box
|
24W-21170-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
3FC-2139R-00-00 Cover 2 |
3FC-2139R-00-00 |
from US $13.95 |
||
|
14
|
14
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
17
|
17
24W-21245-00-00
Box
|
24W-21245-00-00 |
— | ||
|
18
|
18
3FC-2139R-00-00 Cover 2 |
3FC-2139R-00-00 |
from US $13.95 |
||
|
19
|
19
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
19
|
19
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
19
|
19
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
