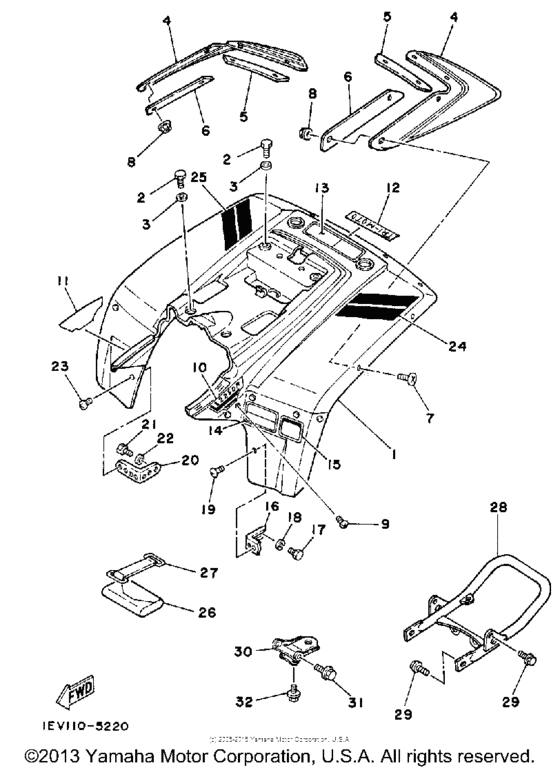

Rear fender Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DRN
- Engine Capacity
- 223
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FH-21600-01-00
Rear Fender
UR SKY BLUE |
2FH-21600-01-00 |
— | ||
|
1
|
1
29U-21600-30-00
Rear Fender Assembly
UR YAMAHA BLK |
29U-21600-30-00 |
— | ||
| replacement | |||||
|
1
|
1
29U-21600-31-00
COVER, REAR FNDR 3
UR YAMAHA BLK |
29U-21600-31-00 |
— | ||
|
1
|
1
29U-21600-01-00
Rear Fender Assembly
UR COMP. YEL |
29U-21600-01-00 |
— | ||
|
2
|
2
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
2
|
2
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
2
|
2
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
3
|
3
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
3
|
3
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
4
|
4
29U-21621-00-00
Flap
|
29U-21621-00-00 |
— | ||
|
5
|
5
29U-21623-00-00
Plate, Flap Fitting 1
|
29U-21623-00-00 |
— | ||
|
6
|
6
29U-21624-00-00
Plate, Flap Fitting 2
|
29U-21624-00-00 |
— | ||
|
7
|
7
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
8
|
8
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
9
|
9
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
10
|
10
1EV-2163G-00-00
Emblem 1
UR FOR CPY |
1EV-2163G-00-00 |
— | ||
|
10
|
10
1EV-2163G-20-00
Emblem 1
UR FOR SYB |
1EV-2163G-20-00 |
— | ||
|
10
|
10
1EV-2163G-30-00
Emblem 1
UR FOR YB |
1EV-2163G-30-00 |
— | ||
|
11
|
11
1EV-2163H-30-00
Emblem 2
UR FOR YB |
1EV-2163H-30-00 |
— | ||
|
11
|
11
1EV-2163H-20-00
Emblem 2
UR FOR SYB |
1EV-2163H-20-00 |
— | ||
|
11
|
11
1EV-2163H-00-00
Emblem 2
UR FOR CPY |
1EV-2163H-00-00 |
— | ||
|
12
|
12
3X3-21784-00-00
Emblem 4
UR FOR CPY |
3X3-21784-00-00 |
— | ||
|
12
|
12
29U-21784-30-00
Emblem 4
UR FOR YB |
29U-21784-30-00 |
— | ||
|
12
|
12
24W-21784-30-00
Emblem 4
UR FOR SYB |
24W-21784-30-00 |
— | ||
|
13
|
13
1EV-21659-00-00
Label, Safety
|
1EV-21659-00-00 |
— | ||
|
13
|
13
1EV-21659-30-00
Label, Safety
UR FOR YB |
1EV-21659-30-00 |
— | ||
|
14
|
14
52G-21696-00-00
Label, Caution
|
52G-21696-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
1EV-24877-00-00
Label, Caution
|
1EV-24877-00-00 |
— | ||
|
16
|
16
29U-21613-00-00
Stay, Fender 1
|
29U-21613-00-00 |
— | ||
|
17
|
17
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
20
|
20
29U-21614-00-00
Stay, Fender 2
|
29U-21614-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
21
|
21
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
24
|
24
1EV-21661-30-00
Grphc, R/fndr Cvr L
UR FOR YB |
1EV-21661-30-00 |
— | ||
|
24
|
24
1EV-21661-00-00
Grphc, R/fndr Cvr L
|
1EV-21661-00-00 |
— | ||
|
25
|
25
1EV-21662-00-00
Grphc, R/fndr Cvr R
|
1EV-21662-00-00 |
— | ||
|
25
|
25
1EV-21662-30-00
Grphc, R/fndr Cvr R
UR FOR YB |
1EV-21662-30-00 |
— | ||
|
26
|
26
59V-28100-00-00
Tool Kit (24W-28100-00)
24W-28100-00 |
59V-28100-00-00 |
— | ||
|
27
|
27
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
|
28
|
28
2FW-28421-10-00
Bumper, Rear 1
|
2FW-28421-10-00 |
— | ||
|
29
|
29
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
29
|
29
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
29
|
29
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
30
|
30
29U-28488-00-00
Hook
|
29U-28488-00-00 |
— | ||
|
31
|
31
95821-10014-00 Bolt, Flange (95801-10014-00)95801-10014-00 ALT. PART |
95821-10014-00 |
from US $2.13 |
||
| replacement | |||||
|
31
|
31
90105-10147-00 Bolt, Flange95801-10014-00 ALT. PART |
90105-10147-00 |
from US $2.13 |
||
|
32
|
32
95811-08012-00 Bolt, Flange (95801-08012-00)95801-08012-00 ALT. PART |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
32
|
32
95817-08012-00 Bolt, Flange95801-08012-00 ALT. PART |
95817-08012-00 |
from US $1.07 |
||
