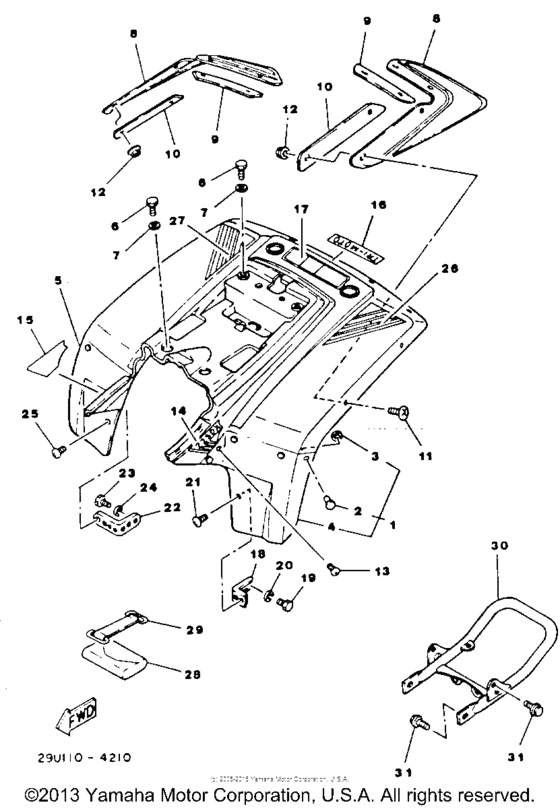

Rear fender Diagram Yamaha TRI-MOTO Tri-Moto 225
- Model code
- YTM225DXL
- Engine Capacity
- 223
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FH-21600-01-00
Rear Fender
|
2FH-21600-01-00 |
— | ||
|
1
|
1
29U-21600-01-00
Rear Fender Assembly
|
29U-21600-01-00 |
— | ||
|
1
|
1
29U-21600-20-00
Rear Fender Ass''y
|
29U-21600-20-00 |
— | ||
| replacements | |||||
|
1
|
1
2FH-21600-01-00
Rear Fender
|
2FH-21600-01-00 |
— | ||
|
1
|
1
2FH-21600-00-00
New Genuine Part
|
2FH-21600-00-00 |
— | ||
|
2
|
2
90267-48051-00 Rivet, Blind (4.8X18.7 Black)4.8X18.7 BLACK |
90267-48051-00 |
from US $2.05 |
||
|
3
|
3
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
3
|
3
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
3
|
3
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
4
|
4
29U-2163A-01-00
Cover, Fender Left (29U-2163A
29U-2163A-0 |
29U-2163A-01-00 |
— | ||
|
5
|
5
29U-2163E-01-00 Cover, Fender Right (29U-216329U-2163E- |
29U-2163E-01-00 |
US $106.92 |
||
|
6
|
6
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
7
|
7
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
8
|
8
29U-21621-00-00
Flap
|
29U-21621-00-00 |
— | ||
|
9
|
9
29U-21623-00-00
Plate, Flap Fitting 1
|
29U-21623-00-00 |
— | ||
|
10
|
10
29U-21624-00-00
Plate, Flap Fitting 2
|
29U-21624-00-00 |
— | ||
|
11
|
11
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
12
|
12
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
13
|
13
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
14
|
14
29U-2163G-50-00
Emblem 1
U.R. for cpy |
29U-2163G-50-00 |
— | ||
|
14
|
14
29U-2163G-30-00
Emblem 1
U.R. for yb |
29U-2163G-30-00 |
— | ||
|
14
|
14
29U-2163G-20-00
Emblem 1
U.R. for syb |
29U-2163G-20-00 |
— | ||
|
15
|
15
29U-2163H-20-00
Emblem 2
U.R. for syb |
29U-2163H-20-00 |
— | ||
|
15
|
15
29U-2163H-30-00
Emblem 2
U.R. for yb |
29U-2163H-30-00 |
— | ||
|
15
|
15
29U-2163H-50-00
Emblem 2
U.R. for cpy |
29U-2163H-50-00 |
— | ||
|
16
|
16
21V-21784-50-00
Emblem 4
U.R. for syb |
21V-21784-50-00 |
— | ||
|
16
|
16
29U-21784-30-00
Emblem 4
U.R. for yb |
29U-21784-30-00 |
— | ||
|
16
|
16
29U-21784-50-00
Emblem 4
U.R. for cpy |
29U-21784-50-00 |
— | ||
|
17
|
17
29U-21659-30-00
Label, Safety
yb |
29U-21659-30-00 |
— | ||
|
17
|
17
29U-21659-50-00
Label, Safety
|
29U-21659-50-00 |
— | ||
|
18
|
18
29U-21613-00-00
Stay, Fender 1
|
29U-21613-00-00 |
— | ||
|
19
|
19
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
19
|
19
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
22
|
22
29U-21614-00-00
Stay, Fender 2
|
29U-21614-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
23
|
23
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
25
|
25
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
26
|
26
29U-21661-50-00
Graphic, R. Fender Cover (L.h.)
r. fender cover L.H. U.R. for cpy |
29U-21661-50-00 |
— | ||
|
26
|
26
29U-21661-30-00
Graphic, R. Fender Cover (L.h.)
r. fender cover L.H. U.R for yb |
29U-21661-30-00 |
— | ||
|
26
|
26
29U-21661-20-00
Graphic, R. Fender Cover (L.h.)
r. fender cover L.H. U.R. for syb |
29U-21661-20-00 |
— | ||
|
27
|
27
29U-21662-20-00
Graphic, R. Fender Cover (R.h.)
r. fender cover R.H. U.R. for syb |
29U-21662-20-00 |
— | ||
|
27
|
27
29U-21662-30-00
Graphic, R. Fender Cover (R.h.)
r. fender cover R.H. U.R. for yb |
29U-21662-30-00 |
— | ||
|
27
|
27
29U-21662-50-00
Graphic, R. Fender Cover (R.h.)
r. fender cover R.H. U.R. for cpy |
29U-21662-50-00 |
— | ||
|
28
|
28
59V-28100-00-00
Tool Kit (24W-28100-00)
24W-28100-00 |
59V-28100-00-00 |
— | ||
|
29
|
29
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
|
30
|
30
2FW-28421-10-00
Bumper, Rear 1
|
2FW-28421-10-00 |
— | ||
|
31
|
31
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
31
|
31
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
31
|
31
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
