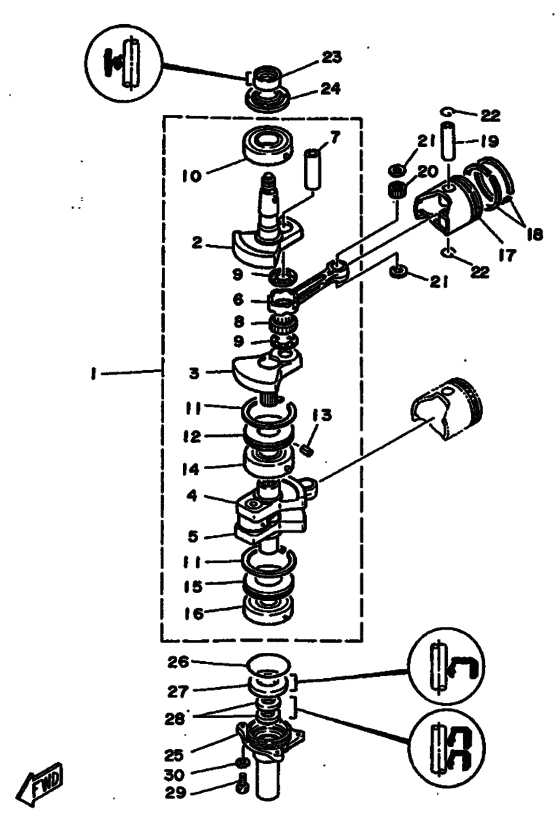

Crankshaft & Piston Diagram Yamaha 15 WHS/L
- Year
- 1985
- Model
- 15D
- Model code
- 6E8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
682-11400-00-00
Crankshaft Assy
|
682-11400-00-00 |
— | ||
| replacement | |||||
|
1
|
1
682-11400-09-00
Crankshaft Assy
|
682-11400-09-00 |
— | ||
|
2
|
2
682-11412-00-00 Crank 1 |
682-11412-00-00 |
US $229.35 |
||
|
3
|
3
682-11422-00-00 Crank 2 |
682-11422-00-00 |
US $226.61 |
||
| replacement | |||||
|
3
|
3
682-11422-09-00
Crank 2
|
682-11422-09-00 |
— | ||
|
4
|
4
682-11432-00-00
Crank 3
|
682-11432-00-00 |
— | ||
| replacement | |||||
|
4
|
4
682-11432-09-00
Crank 3
|
682-11432-09-00 |
— | ||
|
5
|
5
682-11442-00-00 Crank 4 |
682-11442-00-00 |
US $356.45 |
||
| replacement | |||||
|
5
|
5
682-11442-03-00 Crank 4 |
682-11442-03-00 |
from US $326.84 |
||
|
6
|
6
650-11651-03-00 Rod, Connecting |
650-11651-03-00 |
US $139.54 |
||
| replacement | |||||
|
6
|
6
650-11651-04-00 Rod, Connecting |
650-11651-04-00 |
from US $82.32 |
||
|
7
|
7
682-11681-00-00 Pin, Crank 1 |
682-11681-00-00 |
from US $11.92 |
||
|
8
|
8
93310-620V5-00 Bearing |
93310-620V5-00 |
from US $21.50 |
||
|
9
|
9
902-09201-59-00 Washer, Crank Pin (1H9) |
902-09201-59-00 |
from US $3.32 |
||
|
10
|
10
933-06205-14-00 Bearing |
933-06205-14-00 |
from US $44.21 |
||
| replacement | |||||
|
10
|
10
93306-205U2-00 Bearing |
93306-205U2-00 |
from US $18.86 |
||
|
11
|
11
93440-57M01-00 Circlip |
93440-57M01-00 |
from US $11.14 |
||
|
12
|
12
682-11515-01-00 Seal, Labyrinth 1 |
682-11515-01-00 |
US $39.93 |
||
| replacement | |||||
|
12
|
12
682-11515-02-00 Seal, Labyrinth 1 |
682-11515-02-00 |
from US $14.56 |
||
|
13
|
13
916-09200-08-00
Pin, Spring
|
916-09200-08-00 |
— | ||
| replacement | |||||
|
13
|
13
91690-20008-00 Pin, Spring |
91690-20008-00 |
from US $3.32 |
||
|
14
|
14
93304-205U0-00 Bearing |
93304-205U0-00 |
from US $84.64 |
||
|
15
|
15
682-11525-00-00 Seal, Labyrinth 2 |
682-11525-00-00 |
from US $12.58 |
||
|
16
|
16
93306-304U0-00 Bearing |
93306-304U0-00 |
from US $30.42 |
||
|
17
|
17
6E7-11631-00-97 Piston (Std) |
6E7-11631-00-97 |
from US $46.62 |
||
|
17
|
17
6E7-11635-00-00 Piston (0.25Mm O/s)0.25MM O/S; AO NOT SHOWN |
6E7-11635-00-00 |
from US $46.62 |
||
|
17
|
17
6E7-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S; AP NOT SHOWN |
6E7-11636-00-00 |
from US $47.28 |
||
|
18
|
18
682-11610-00-00 Piston Ring Set |
682-11610-00-00 |
US $47.80 |
||
| replacement | |||||
|
18
|
18
682-11610-01-00 Piston Ring Set (Std) |
682-11610-01-00 |
from US $10.92 |
||
|
18
|
18
682-11610-10-00 Piston Ring SetAP NOT SHOWN |
682-11610-10-00 |
US $47.80 |
||
| replacement | |||||
|
18
|
18
682-11610-11-00 Piston Ring Set (0.25Mm O/s)AP NOT SHOWN |
682-11610-11-00 |
from US $13.56 |
||
|
18
|
18
682-11610-20-00 Piston Ring SetAP NOT SHOWN |
682-11610-20-00 |
US $47.80 |
||
| replacement | |||||
|
18
|
18
682-11610-21-00 Piston Ring Set (0.50Mm O/s)AP NOT SHOWN |
682-11610-21-00 |
from US $13.24 |
||
|
19
|
19
634-11633-00-00 Pin, Piston |
634-11633-00-00 |
from US $6.96 |
||
|
20
|
20
93602-14104-00 Pin, Dowel |
93602-14104-00 |
from US $1.12 |
||
|
21
|
21
90201-14377-00 Washer, Plate |
90201-14377-00 |
from US $2.66 |
||
|
22
|
22
93450-15023-00 Circlip |
93450-15023-00 |
from US $1.66 |
||
|
23
|
23
93110-23M00-00 Oil Seal |
93110-23M00-00 |
from US $7.94 |
||
|
24
|
24
682-11445-00-00
Spacer
|
682-11445-00-00 |
— | ||
|
25
|
25
682-15359-00-9M Housing, Oil Seal |
682-15359-00-9M |
US $40.34 |
||
| replacement | |||||
|
25
|
25
999-99019-27-00 Housing, Oil Seal |
999-99019-27-00 |
from US $40.34 |
||
|
26
|
26
93210-53M08-00 O-Ring |
93210-53M08-00 |
US $2.55 |
||
| replacement | |||||
|
26
|
26
93210-53679-00 O-Ring |
93210-53679-00 |
from US $2.55 |
||
|
27
|
27
93101-20M10-00 Oil Seal, S-Type |
93101-20M10-00 |
from US $14.58 |
||
|
28
|
28
93101-13M11-00 Oil Seal |
93101-13M11-00 |
from US $7.62 |
||
|
29
|
29
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
29
|
29
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
29
|
29
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
