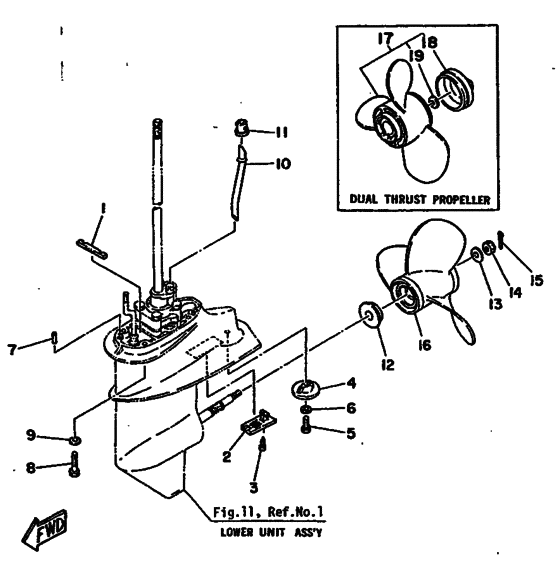

Lower casing & drive 2 Diagram Yamaha 15 WHS/L
- Year
- 1985
- Model
- 15D
- Model code
- 6E8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
682-45375-01-00 Damper, Seal |
682-45375-01-00 |
US $4.68 |
||
|
2
|
2
683-45214-01-00 Cover, Wtr.inlet |
683-45214-01-00 |
US $51.44 |
||
|
3
|
3
97780-50525-00 Screw, Tapping |
97780-50525-00 |
from US $2.12 |
||
| replacement | |||||
|
3
|
3
97780-50125-00 Screw, Tapping |
97780-50125-00 |
from US $2.55 |
||
|
4
|
4
683-45251-00-00 Anode |
683-45251-00-00 |
US $16.43 |
||
| replacement | |||||
|
4
|
4
6E8-45251-02-00 Anode |
6E8-45251-02-00 |
from US $10.58 |
||
|
5
|
5
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
5
|
5
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
7
|
7
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
8
|
8
97375-08035-00 Bolt |
97375-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
8
|
8
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
8
|
8
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.30 |
||
|
9
|
9
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
10
|
10
682-44361-00-00 Tube, Water 1UR |
682-44361-00-00 |
US $26.49 |
||
| replacement | |||||
|
10
|
10
682-44361-01-00 Tube, WaterUR |
682-44361-01-00 |
from US $26.49 |
||
|
10
|
10
682-44361-10-00 Tube, Water 1UR NOT SHOWN |
682-44361-10-00 |
from US $63.88 |
||
|
10
|
10
682-44361-30-00
Tube, Water 1
UR NOT SHOWN |
682-44361-30-00 |
— | ||
|
11
|
11
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
12
|
12
683-45987-01-00 Spacer 1 |
683-45987-01-00 |
US $41.30 |
||
|
13
|
13
90201-10M14-00 Washer, Plate |
90201-10M14-00 |
US $4.11 |
||
| replacement | |||||
|
13
|
13
902-0110M-01-00 Washer, Plate |
902-0110M-01-00 |
from US $2.66 |
||
|
14
|
14
90171-10M01-00 Nut, Castle |
90171-10M01-00 |
from US $4.64 |
||
|
15
|
15
914-90300-20-00 Pin. Cotter |
914-90300-20-00 |
US $1.13 |
||
| replacement | |||||
|
15
|
15
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.13 |
||
|
16
|
16
683-45941-00-36 Propeller AssyPropeller assy 1 (3x9 1/4 "x12"-j) UR |
683-45941-00-36 |
US $183.75 |
||
| replacement | |||||
|
16
|
16
683-45941-00-00 Propeller (3X9-1/4"x12"-J)UR |
683-45941-00-00 |
from US $183.75 |
||
|
16
|
16
683-45943-00-36 Propeller AssyPropeller assy 2 (3x9 1/4 "x10 1/2"-j) UR |
683-45943-00-36 |
US $183.75 |
||
| replacement | |||||
|
16
|
16
683-45943-00-00 Propeller (3X9-1/4"x10-1/2"-J)UR |
683-45943-00-00 |
from US $183.75 |
||
|
16
|
16
683-45945-00-36 Propeller AssyPropeller assy 3 (3x9 1/4 "x9"-j) UR |
683-45945-00-36 |
US $183.75 |
||
| replacements | |||||
|
16
|
16
683-45945-00-00 Propeller (3X9-1/4"x9"-J)UR |
683-45945-00-00 |
US $183.75 |
||
|
16
|
16
63V-45945-10-00 Propeller (3X9-1/4"x9"-J1)UR |
63V-45945-10-00 |
from US $183.75 |
||
|
16
|
16
683-45947-00-36 Propeller AssyPropeller assy 4 (3x9 1/4 "x8"-9) UR |
683-45947-00-36 |
US $183.75 |
||
| replacements | |||||
|
16
|
16
683-45947-00-00 Propeller (3X9-1/4"x8"-J)UR |
683-45947-00-00 |
US $183.75 |
||
|
16
|
16
63V-45947-00-00 Propeller (3X9-1/4"x8"-J)UR |
63V-45947-00-00 |
from US $183.75 |
||
|
16
|
16
683-45949-00-36 Propeller AssyPropeller assy 5 (3x9 1/1 "x601/2"-j) UR |
683-45949-00-36 |
US $183.75 |
||
| replacement | |||||
|
16
|
16
683-45949-00-00 Propeller (3X9-1/2"x6-1/2"-J)UR |
683-45949-00-00 |
from US $183.75 |
||
|
16
|
16
683-45952-00-36 Propeller AssyPropeller assy 6 (3x9 1/4 "x9 3/4"-j) UR |
683-45952-00-36 |
US $183.75 |
||
| replacements | |||||
|
16
|
16
683-45952-00-00 Propeller (3X9-1/4"x9-3/4"-J)Propeller assy (3x9-1/2"9x-1/2"-j) UR |
683-45952-00-00 |
US $183.75 |
||
|
16
|
16
63V-45952-10-00 Propeller (3X9-1/4"x10"-J1)UR |
63V-45952-10-00 |
from US $183.75 |
||
|
17
|
17
683-W4591-01-36 BoltPropeller assy (3x9 3/4 "x8"-j) UR DUAL THRUST PROPELLER |
683-W4591-01-36 |
US $194.81 |
||
| replacement | |||||
|
17
|
17
683-W4591-02-00 Propeller (3X9-3/4 X8 -J)UR DUAL THRUST PROPELLER |
683-W4591-02-00 |
from US $194.81 |
||
|
17
|
17
683-W4592-01-36 Propeller AssyPropeller assy (3x9 3/4 "x6 1/2"-j) UR DUAL THRUST PROPELLER |
683-W4592-01-36 |
US $194.81 |
||
| replacement | |||||
|
17
|
17
683-W4592-02-00 Propeller (3X9-3/4"x6-1/2"-J)UR DUAL THRUST PROPELLER |
683-W4592-02-00 |
from US $194.81 |
||
|
18
|
18
6E7-45616-00-00
Nut, Propeller
|
6E7-45616-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99022-38-00
Nut, Propeller
|
999-99022-38-00 |
— | ||
|
19
|
19
90201-10M15-00 Washer, Plate |
90201-10M15-00 |
US $1.98 |
||
| replacement | |||||
|
19
|
19
90201-10M02-00 Washer, Plate |
90201-10M02-00 |
from US $1.98 |
||
