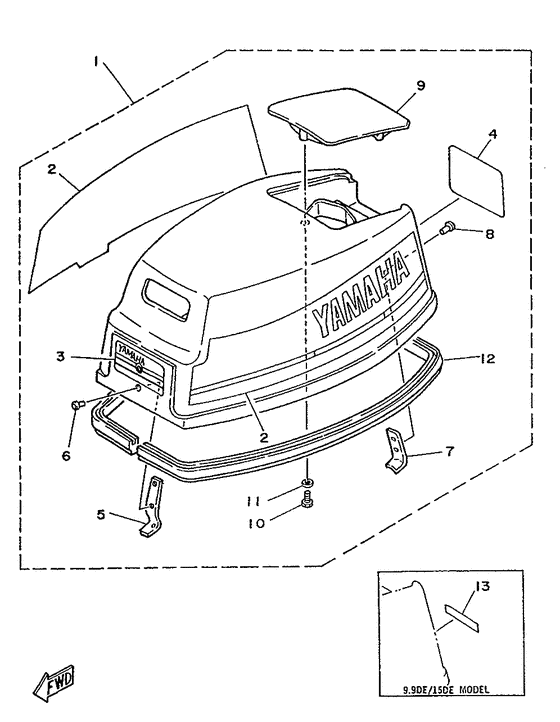

Top cowling Diagram Yamaha 15 WHS/L
- Year
- 1987
- Model
- 15D
- Model code
- 6E8
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E7-42610-23-EJ
Top Cowling Assy
Ur |
6E7-42610-23-EJ |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
01
|
01
6E8-42610-23-EJ
Top Cowling Assy
Ur |
6E8-42610-23-EJ |
— | ||
| replacement | |||||
|
01
|
01
6E8-42610-26-EJ
Top Cowling Assy
Ur |
6E8-42610-26-EJ |
— | ||
|
02
|
02
6E7-W0070-22-00
Graphic Set
|
6E7-W0070-22-00 |
— | ||
| replacement | |||||
|
02
|
02
6E7-W0070-23-00
Graphic Set
|
6E7-W0070-23-00 |
— | ||
|
03
|
03
6E7-42677-01-00 Graphic, Front |
6E7-42677-01-00 |
US $4.84 |
||
|
04
|
04
6E7-42678-20-00
Graphic, Rear
Ur |
6E7-42678-20-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
04
|
04
6E8-42678-20-00
Graphic, Rear
Ur |
6E8-42678-20-00 |
— | ||
|
05
|
05
6E7-42651-00-00
Hook
|
6E7-42651-00-00 |
— | ||
| replacements | |||||
|
05
|
05
6E7-42651-02-00
Hook
|
6E7-42651-02-00 |
— | ||
|
05
|
05
6E7-42651-01-00
Hook
|
6E7-42651-01-00 |
— | ||
|
06
|
06
90266-04M00-00 Rivet |
90266-04M00-00 |
from US $2.83 |
||
|
07
|
07
6E7-42652-00-00 Hook |
6E7-42652-00-00 |
US $6.91 |
||
|
08
|
08
90266-04004-00 Rivet |
90266-04004-00 |
US $1.84 |
||
| replacement | |||||
|
08
|
08
90266-04M04-00 Rivet |
90266-04M04-00 |
from US $1.34 |
||
|
09
|
09
6E7-42613-00-EJ
Molding, Air Duct
|
6E7-42613-00-EJ |
— | ||
|
10
|
10
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
10
|
10
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
11
|
11
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
682-42615-00-00
Seal
|
682-42615-00-00 |
— | ||
|
13
|
13
6G1-42683-00-00
Mark, Cowling 3
|
6G1-42683-00-00 |
— | ||
