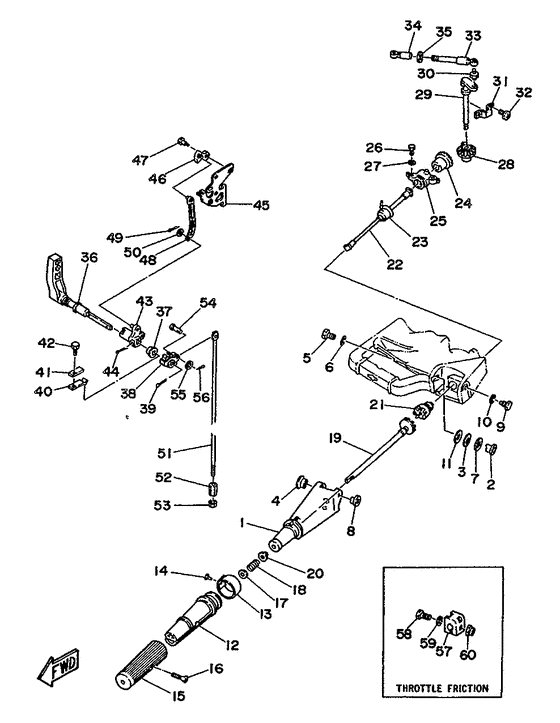

Control 1 Diagram Yamaha 15 WHS/L
- Year
- 1988
- Model
- 15D
- Model code
- 6E8
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
682-42111-00-EJ
Handle, Steering
|
682-42111-00-EJ |
— | ||
|
02
|
02
682-42123-01-00
Bolt, Handle Joint
|
682-42123-01-00 |
— | ||
| replacement | |||||
|
02
|
02
682-42123-02-00
Bolt, Handle Joint
|
682-42123-02-00 |
— | ||
|
03
|
03
90206-12M06-00 Washer, Wave |
90206-12M06-00 |
from US $5.81 |
||
|
04
|
04
90386-12M07-00 Bush |
90386-12M07-00 |
from US $4.25 |
||
|
05
|
05
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
05
|
05
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
07
|
07
90201-12181-00
Washer, Plate
|
90201-12181-00 |
— | ||
|
08
|
08
90386-06M06-00 Bush |
90386-06M06-00 |
from US $5.38 |
||
|
09
|
09
90109-08M01-00
Bolt
|
90109-08M01-00 |
— | ||
|
10
|
10
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
11
|
11
90202-12031-00 Washer, Plate |
90202-12031-00 |
from US $2.55 |
||
|
12
|
12
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $20.18 |
||
|
13
|
13
6E0-42137-00-00 Indicator, Throttle |
6E0-42137-00-00 |
US $7.93 |
||
| replacement | |||||
|
13
|
13
6E0-42137-10-00 Indicator, Throttle |
6E0-42137-10-00 |
from US $7.93 |
||
|
14
|
14
902-69020-01-00
Rivet
|
902-69020-01-00 |
— | ||
| replacement | |||||
|
14
|
14
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
15
|
15
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
15
|
15
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
16
|
16
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
| replacement | |||||
|
16
|
16
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
17
|
17
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
18
|
18
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
19
|
19
682-42141-01-94
Gear, Knee 1
|
682-42141-01-94 |
— | ||
|
20
|
20
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
21
|
21
682-42142-01-00 Gear, Knee 2 |
682-42142-01-00 |
from US $22.95 |
||
|
22
|
22
682-42116-00-00 Shaft, Steering Handle 2 |
682-42116-00-00 |
from US $48.20 |
||
|
23
|
23
682-42716-00-00 Rubber, Seal 1 |
682-42716-00-00 |
US $8.81 |
||
|
24
|
24
682-42151-01-00 Pinion |
682-42151-01-00 |
from US $25.72 |
||
|
25
|
25
682-42171-01-00 Bushing |
682-42171-01-00 |
US $9.11 |
||
| replacement | |||||
|
25
|
25
682-42171-02-00 Bushing |
682-42171-02-00 |
US $9.11 |
||
|
26
|
26
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
26
|
26
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
27
|
27
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
28
|
28
682-42152-01-00 Gear |
682-42152-01-00 |
US $15.86 |
||
|
29
|
29
682-41631-00-94
Lever, Magneto Control
|
682-41631-00-94 |
— | ||
|
30
|
30
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
31
|
31
682-41661-00-00
Bracket 1
|
682-41661-00-00 |
— | ||
|
32
|
32
97803-06010-00 Screw, Pan Head |
97803-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
33
|
33
682-41238-00-00 Joint, LinkJoint, link 1 |
682-41238-00-00 |
US $7.93 |
||
| replacement | |||||
|
33
|
33
682-41238-01-00 Joint, Link |
682-41238-01-00 |
from US $7.93 |
||
|
34
|
34
682-41237-00-00 Joint, Link 2 |
682-41237-00-00 |
from US $1.66 |
||
|
35
|
35
95303-05700-00 Nut |
95303-05700-00 |
US $1.98 |
||
| replacement | |||||
|
35
|
35
95380-05700-00 Nut |
95380-05700-00 |
from US $1.98 |
||
|
36
|
36
682-44111-01-94 Handle, Gear Shift |
682-44111-01-94 |
US $48.22 |
||
| replacement | |||||
|
36
|
36
682-44111-01-00 HANDLE, GEAR SHIFT |
682-44111-01-00 |
from US $25.12 |
||
|
37
|
37
682-44132-00-00 Bushing |
682-44132-00-00 |
from US $7.93 |
||
|
38
|
38
682-44121-00-00
Lever, Shift Rod
|
682-44121-00-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99038-20-00
Lever, Shift Rod
|
999-99038-20-00 |
— | ||
|
39
|
39
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
40
|
40
682-44116-00-00
Spring
|
682-44116-00-00 |
— | ||
|
41
|
41
682-44117-00-00 Bracket |
682-44117-00-00 |
from US $3.52 |
||
|
42
|
42
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
42
|
42
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
42
|
42
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
43
|
43
682-44125-01-00
Lever, Shift Rod
|
682-44125-01-00 |
— | ||
|
44
|
44
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
45
|
45
682-44118-01-00 Bracket |
682-44118-01-00 |
US $11.75 |
||
|
46
|
46
682-41666-00-00
Stopper, Magneto Control Lever
|
682-41666-00-00 |
— | ||
|
47
|
47
90109-06M04-00 Bolt |
90109-06M04-00 |
US $4.11 |
||
| replacement | |||||
|
47
|
47
90109-06MA1-00 Bolt |
90109-06MA1-00 |
from US $4.11 |
||
|
48
|
48
682-44124-00-00
Link, Shift Rod
|
682-44124-00-00 |
— | ||
|
49
|
49
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
50
|
50
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
51
|
51
682-44143-00-00 Rod, Shift |
682-44143-00-00 |
US $20.41 |
||
|
52
|
52
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
52
|
52
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
53
|
53
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
53
|
53
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.60 |
||
|
54
|
54
91790-05020-00 Pin, Clevis |
91790-05020-00 |
US $2.64 |
||
|
55
|
55
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
56
|
56
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
57
|
57
656-42126-01-00 Friction, Steering Handle Grip |
656-42126-01-00 |
from US $12.33 |
||
|
58
|
58
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
58
|
58
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
59
|
59
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
60
|
60
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
