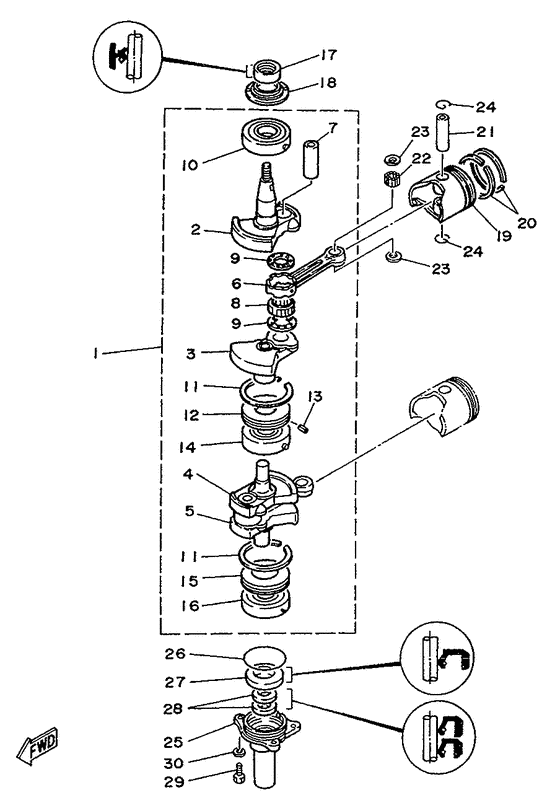

Crankshaft & Piston Diagram Yamaha 15 EHS/L
- Year
- 1995
- Model
- 15D
- Model code
- 6E8
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
682-11400-03-00
Crankshaft Assembly
|
682-11400-03-00 |
— | ||
| replacement | |||||
|
01
|
01
682-11400-09-00
Crankshaft Assy
|
682-11400-09-00 |
— | ||
|
02
|
02
682-11412-02-00 Crank 1 |
682-11412-02-00 |
from US $152.48 |
||
| replacement | |||||
|
02
|
02
63V-11412-00-00 Crank 1 |
63V-11412-00-00 |
US $229.35 |
||
|
03
|
03
6K4-11432-01-00 Crank 3 |
6K4-11432-01-00 |
US $211.38 |
||
| replacements | |||||
|
03
|
03
63V-11432-00-00 Crank 3 |
63V-11432-00-00 |
US $211.38 |
||
|
03
|
03
63V-11432-01-00 Crank 3 |
63V-11432-01-00 |
from US $201.29 |
||
|
04
|
04
6K4-11422-01-00 Crank 2 |
6K4-11422-01-00 |
US $211.38 |
||
| replacements | |||||
|
04
|
04
63V-11422-00-00 Crank 2 |
63V-11422-00-00 |
US $211.38 |
||
|
04
|
04
63V-11422-01-00 Crank 2 |
63V-11422-01-00 |
from US $201.29 |
||
|
05
|
05
682-11442-02-00 Crank 4 |
682-11442-02-00 |
from US $326.84 |
||
| replacement | |||||
|
05
|
05
682-11442-03-00 Crank 4 |
682-11442-03-00 |
from US $326.84 |
||
|
06
|
06
650-11651-04-00 Rod, Connecting |
650-11651-04-00 |
from US $86.52 |
||
|
07
|
07
682-11681-00-00 Pin, Crank 1 |
682-11681-00-00 |
from US $12.46 |
||
|
08
|
08
93310-620V5-00 Bearing |
93310-620V5-00 |
from US $21.04 |
||
|
09
|
09
902-09201-59-00 Washer, Crank Pin (1H9) |
902-09201-59-00 |
from US $3.72 |
||
|
10
|
10
93306-205U2-00 Bearing |
93306-205U2-00 |
from US $26.17 |
||
|
11
|
11
93440-57M01-00 Circlip |
93440-57M01-00 |
from US $11.14 |
||
|
12
|
12
682-11515-03-00 Seal, Labyrinth 1 |
682-11515-03-00 |
from US $39.93 |
||
|
13
|
13
916-09200-08-00
Pin, Spring
|
916-09200-08-00 |
— | ||
| replacement | |||||
|
13
|
13
91690-20008-00 Pin, Spring |
91690-20008-00 |
from US $3.72 |
||
|
14
|
14
93304-205U0-00 Bearing |
93304-205U0-00 |
from US $125.37 |
||
|
15
|
15
682-11525-00-00 Seal, Labyrinth 2 |
682-11525-00-00 |
from US $36.34 |
||
|
16
|
16
93306-304U0-00 Bearing |
93306-304U0-00 |
from US $31.98 |
||
|
17
|
17
93110-23M00-00 Oil Seal |
93110-23M00-00 |
from US $8.42 |
||
|
18
|
18
682-11445-00-00
Spacer
|
682-11445-00-00 |
— | ||
|
19
|
19
6E7-11635-00-00 Piston (0.25Mm O/s)Ap |
6E7-11635-00-00 |
from US $48.82 |
||
|
19
|
19
6E7-11636-00-00 Piston (0.50Mm O/s)Ap |
6E7-11636-00-00 |
from US $89.10 |
||
|
19
|
19
6E7-11631-00-97 Piston (Std) |
6E7-11631-00-97 |
from US $48.82 |
||
|
20
|
20
682-11610-01-00 Piston Ring Set (Std) |
682-11610-01-00 |
from US $10.82 |
||
|
20
|
20
682-11610-11-00 Piston Ring Set (0.25Mm O/s)Ap |
682-11610-11-00 |
from US $14.48 |
||
|
20
|
20
682-11610-21-00 Piston Ring Set (0.50Mm O/s)Ap |
682-11610-21-00 |
from US $13.82 |
||
|
21
|
21
634-11633-00-00 Pin, Piston |
634-11633-00-00 |
from US $7.42 |
||
|
22
|
22
93602-14104-00 Pin, Dowel |
93602-14104-00 |
from US $1.22 |
||
|
23
|
23
90201-14377-00 Washer, Plate |
90201-14377-00 |
from US $3.04 |
||
|
24
|
24
93450-15023-00 Circlip |
93450-15023-00 |
from US $1.70 |
||
|
25
|
25
682-15396-03-5B Housing, Oil Seal |
682-15396-03-5B |
US $33.72 |
||
| replacement | |||||
|
25
|
25
682-15396-04-CA Housing, Oil Seal |
682-15396-04-CA |
from US $31.70 |
||
|
26
|
26
93210-53679-00 O-Ring |
93210-53679-00 |
from US $2.77 |
||
|
27
|
27
931-0120M-29-00 Oil Seal |
931-0120M-29-00 |
from US $7.08 |
||
|
28
|
28
93101-13M11-00 Oil Seal |
93101-13M11-00 |
from US $8.08 |
||
|
29
|
29
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
29
|
29
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
