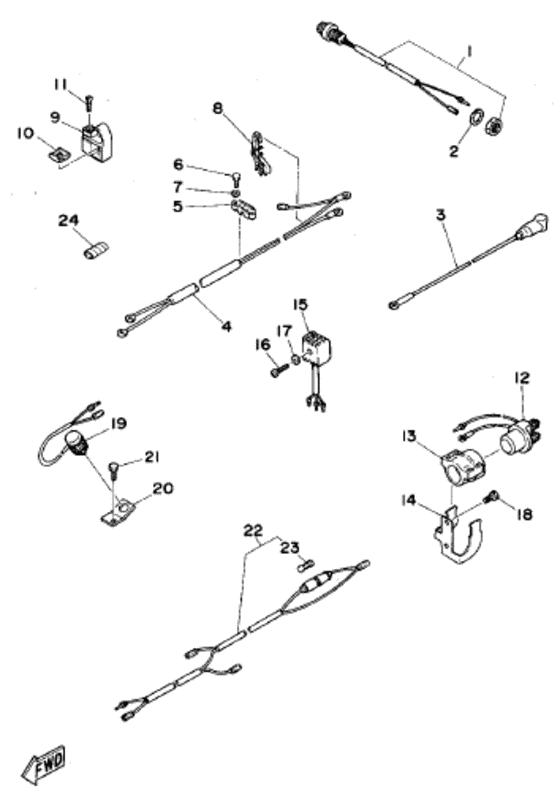

Electrical Diagram Yamaha 15 ES/LH
- Year
- 1994
- Model
- 15
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-81870-00-00
Starting Switch Assy
|
689-81870-00-00 |
— | ||
| replacement | |||||
|
1
|
1
6G8-81870-00-00 Starting Switch Assy |
6G8-81870-00-00 |
from US $34.99 |
||
|
2
|
2
90201-16M36-00 Washer, Plate |
90201-16M36-00 |
from US $1.70 |
||
|
3
|
3
6E7-82117-00-00 Wire, Lead |
6E7-82117-00-00 |
US $20.54 |
||
| replacements | |||||
|
3
|
3
689-82531-02-00 Wire, Lead |
689-82531-02-00 |
US $20.54 |
||
|
3
|
3
689-82531-03-00 Wire, Lead |
689-82531-03-00 |
US $49.52 |
||
|
4
|
4
6E7-82105-10-00 Battery Cable |
6E7-82105-10-00 |
US $161.65 |
||
| replacement | |||||
|
4
|
4
6E7-82105-12-00 Battery Cable |
6E7-82105-12-00 |
from US $91.22 |
||
|
5
|
5
90464-08M03-00
Clamp
|
90464-08M03-00 |
— | ||
|
6
|
6
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
682-82594-01-00
Clamp
|
682-82594-01-00 |
— | ||
|
9
|
9
689-82594-00-00 Clamp |
689-82594-00-00 |
from US $6.52 |
||
|
10
|
10
682-42525-00-00 Plate, Friction 1 |
682-42525-00-00 |
from US $4.68 |
||
|
11
|
11
90161-06M03-00 Screw, Tapping(6E7) |
90161-06M03-00 |
from US $2.55 |
||
|
12
|
12
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $54.56 |
||
|
13
|
13
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
14
|
14
6E7-81945-00-00 Plate, Switch Fitting |
6E7-81945-00-00 |
US $23.69 |
||
|
15
|
15
664-81970-61-00 Rectifier Assembly |
664-81970-61-00 |
US $88.98 |
||
| replacement | |||||
|
15
|
15
664-81970-62-00 Rectifier Assy |
664-81970-62-00 |
from US $88.98 |
||
|
16
|
16
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
17
|
17
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
18
|
18
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
18
|
18
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
18
|
18
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
18
|
18
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
18
|
18
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
18
|
18
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
19
|
19
689-82540-01-00 Neutral Switch Assembly |
689-82540-01-00 |
from US $44.63 |
||
|
20
|
20
682-82554-00-00
Stay, Neutral Switch
|
682-82554-00-00 |
— | ||
|
21
|
21
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
21
|
21
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
22
|
22
6E7-82541-00-00
Wire, Lead
|
6E7-82541-00-00 |
— | ||
|
23
|
23
682-82151-00-00 Fuse12V-20A |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
23
|
23
682-82151-01-00 Fuse (20A)12V-20A |
682-82151-01-00 |
US $1.84 |
||
|
23
|
23
682-82151-02-00 FUSE12V-20A |
682-82151-02-00 |
from US $1.84 |
||
|
24
|
24
90446-10M02-00 Hose |
90446-10M02-00 |
US $4.68 |
||
| replacement | |||||
|
24
|
24
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
