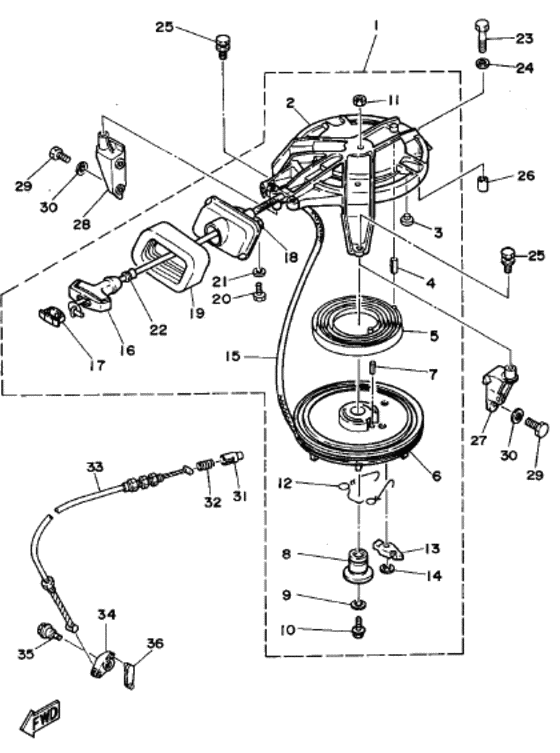

Starter Diagram Yamaha 15 ES/LH
- Year
- 1994
- Model
- 15
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E7-15710-05-4D
Starter Assembly
|
6E7-15710-05-4D |
— | ||
|
2
|
2
682-15711-71-94 Case, Starter |
682-15711-71-94 |
US $124.07 |
||
| replacement | |||||
|
2
|
2
682-15711-71-00 Case, starter |
682-15711-71-00 |
from US $89.21 |
||
|
3
|
3
648-15773-00-00 Stay 3 |
648-15773-00-00 |
from US $3.54 |
||
|
4
|
4
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
5
|
5
90510-08M04-00 Spring, Spiral |
90510-08M04-00 |
from US $35.56 |
||
|
6
|
6
677-15714-00-94 Drum, Sheave |
677-15714-00-94 |
from US $70.78 |
||
|
7
|
7
91690-40020-00 Pin, Spring |
91690-40020-00 |
from US $3.12 |
||
|
8
|
8
677-15717-01-00 Shaft, Starter |
677-15717-01-00 |
from US $30.04 |
||
|
9
|
9
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
9
|
9
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
10
|
10
90119-06M34-00 Bolt, With Washer |
90119-06M34-00 |
from US $2.13 |
||
|
11
|
11
956-01062-00-00
Nut, U-Flange
|
956-01062-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
12
|
12
677-15705-02-00 Spring, Drive Pawl |
677-15705-02-00 |
from US $9.78 |
||
|
13
|
13
677-15741-01-00 Pawl, Drive |
677-15741-01-00 |
from US $4.96 |
||
|
14
|
14
93430-06M02-00 Circlip |
93430-06M02-00 |
from US $1.34 |
||
|
15
|
15
905-8050M-01-00 Rope, Starter |
905-8050M-01-00 |
from US $16.01 |
||
|
16
|
16
689-15755-01-00 Handle, Starter |
689-15755-01-00 |
US $10.63 |
||
| replacement | |||||
|
16
|
16
689-15755-02-00 HANDLE STARTER |
689-15755-02-00 |
from US $5.64 |
||
|
17
|
17
6F5-15779-02-00 Cover |
6F5-15779-02-00 |
from US $2 |
||
|
18
|
18
682-15758-00-4D Guide, Rope |
682-15758-00-4D |
US $25.40 |
||
|
19
|
19
682-15761-10-00
Seal, Rubber 1
|
682-15761-10-00 |
— | ||
|
20
|
20
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
20
|
20
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
20
|
20
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
689-15789-00-00 Damper |
689-15789-00-00 |
from US $5.95 |
||
|
23
|
23
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
23
|
23
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $1.66 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
25
|
25
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
25
|
25
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
26
|
26
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
26
|
26
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
26
|
26
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
27
|
27
6E7-15771-01-94
Stay 1
|
6E7-15771-01-94 |
— | ||
|
28
|
28
6E7-15771-80-94
Stay 1
|
6E7-15771-80-94 |
— | ||
|
29
|
29
97313-06018-00 Bolt, Hex |
97313-06018-00 |
from US $1.62 |
||
| replacement | |||||
|
29
|
29
97013-06018-00 Bolt |
97013-06018-00 |
from US $1.57 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
31
|
31
656-15748-00-00 Plunger, Starter Stop |
656-15748-00-00 |
from US $11.33 |
||
|
32
|
32
90501-10227-00 Spring, Compression |
90501-10227-00 |
from US $2.55 |
||
|
33
|
33
682-15770-00-00
Cable Comp., Starter Stop
|
682-15770-00-00 |
— | ||
|
34
|
34
682-15746-00-00 Arm |
682-15746-00-00 |
US $6.46 |
||
|
35
|
35
90109-06M04-00 Bolt |
90109-06M04-00 |
US $4.11 |
||
| replacement | |||||
|
35
|
35
90109-06MA1-00 Bolt |
90109-06MA1-00 |
from US $4.11 |
||
|
36
|
36
682-15747-00-00
Link
|
682-15747-00-00 |
— | ||
