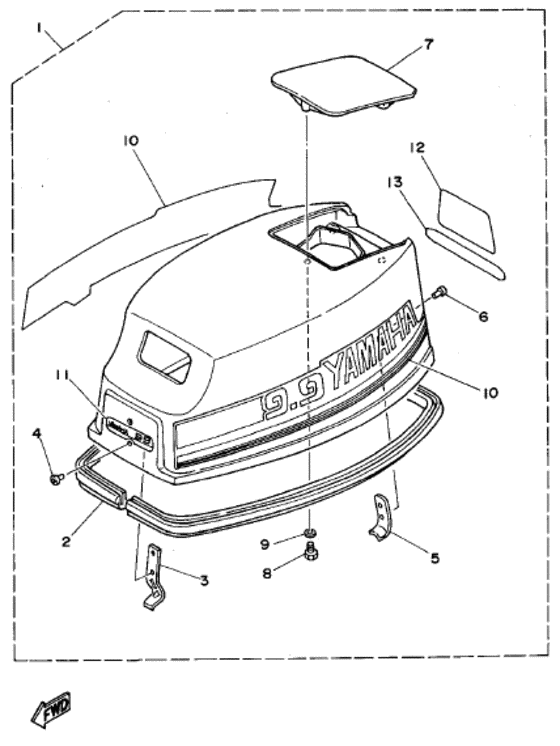

Top cowling Diagram Yamaha 15 ES/LH
- Year
- 1994
- Model
- 15
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E7-42610-14-4D
Top Cowling Assembly
|
6E7-42610-14-4D |
— | ||
| replacement | |||||
|
1
|
1
6E8-42610-14-00
Top Cowl Assy
|
6E8-42610-14-00 |
— | ||
|
1
|
1
6E8-42610-14-4D
Top Cowling Assembly
|
6E8-42610-14-4D |
— | ||
| replacement | |||||
|
1
|
1
6E8-42610-14-00
Top Cowl Assy
|
6E8-42610-14-00 |
— | ||
|
2
|
2
682-42615-00-00
Seal
|
682-42615-00-00 |
— | ||
|
3
|
3
6E7-42651-02-00
Hook
|
6E7-42651-02-00 |
— | ||
|
4
|
4
90266-04M00-00 Rivet |
90266-04M00-00 |
from US $2.83 |
||
|
5
|
5
6E7-42652-00-00 Hook |
6E7-42652-00-00 |
US $6.91 |
||
|
6
|
6
90266-04M04-00 Rivet |
90266-04M04-00 |
from US $1.34 |
||
|
7
|
7
6E7-42613-00-4D
Molding, Air Duct
|
6E7-42613-00-4D |
— | ||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
6E7-W0070-13-00 Graphic Set |
6E7-W0070-13-00 |
from US $72.28 |
||
|
10
|
10
6E8-W0070-11-00
Graphic Set
|
6E8-W0070-11-00 |
— | ||
|
11
|
11
6E7-42677-10-00 Graphic, Front |
6E7-42677-10-00 |
from US $6.73 |
||
|
11
|
11
6E8-42677-10-00 Graphic, Front |
6E8-42677-10-00 |
US $8.96 |
||
|
12
|
12
6E7-42678-11-00
Graphic, Rear
|
6E7-42678-11-00 |
— | ||
|
12
|
12
6E8-42678-11-00
Graphic, Rear
|
6E8-42678-11-00 |
— | ||
|
13
|
13
6E7-4267A-10-00 Graphic, Rear 2 |
6E7-4267A-10-00 |
from US $9.70 |
||
