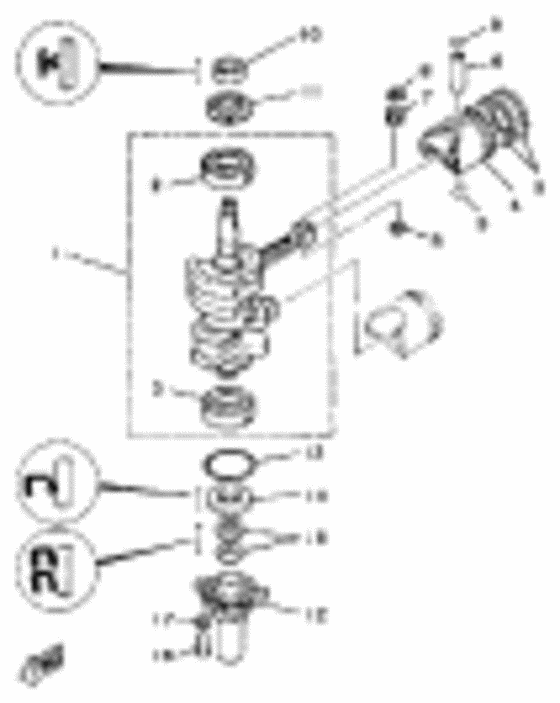

Crankshaft & Piston Diagram Yamaha 15 MS/LH
- Year
- 1985
- Model
- 15
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
682-11400-02-00
Crankshaft Assembly
|
682-11400-02-00 |
— | ||
| replacement | |||||
|
1
|
1
682-11400-09-00
Crankshaft Assy
|
682-11400-09-00 |
— | ||
|
2
|
2
93306-205U2-00 Bearing |
93306-205U2-00 |
from US $18.86 |
||
|
3
|
3
93306-304U0-00 Bearing |
93306-304U0-00 |
from US $30.42 |
||
|
4
|
4
6E7-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S |
6E7-11636-00-00 |
from US $47.28 |
||
|
4
|
4
6E7-11631-00-97 Piston (Std) |
6E7-11631-00-97 |
from US $46.62 |
||
|
5
|
5
682-11610-21-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S |
682-11610-21-00 |
from US $13.24 |
||
|
5
|
5
682-11610-01-00 Piston Ring Set (Std) |
682-11610-01-00 |
from US $10.92 |
||
|
6
|
6
634-11633-00-00 Pin, Piston |
634-11633-00-00 |
from US $6.96 |
||
|
7
|
7
93602-14104-00 Pin, Dowel |
93602-14104-00 |
from US $1.12 |
||
|
8
|
8
90201-14377-00 Washer, Plate |
90201-14377-00 |
from US $2.66 |
||
|
9
|
9
93450-15023-00 Circlip |
93450-15023-00 |
from US $1.66 |
||
|
10
|
10
93110-23M00-00 Oil Seal |
93110-23M00-00 |
from US $7.94 |
||
|
11
|
11
682-11445-00-00
Spacer
|
682-11445-00-00 |
— | ||
|
12
|
12
999-99019-27-00 Housing, Oil Seal |
999-99019-27-00 |
from US $40.34 |
||
|
13
|
13
93210-53679-00 O-Ring |
93210-53679-00 |
from US $2.55 |
||
|
14
|
14
93101-20M10-00 Oil Seal, S-Type |
93101-20M10-00 |
from US $14.58 |
||
|
15
|
15
93101-13M11-00 Oil Seal |
93101-13M11-00 |
from US $7.62 |
||
|
16
|
16
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
