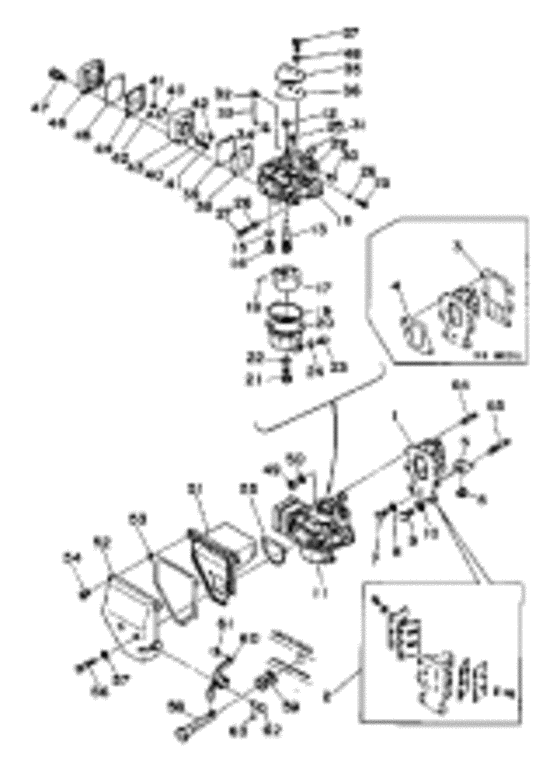

Intake carburetor Diagram Yamaha 15 MS/LH
- Year
- 1992
- Model
- 15
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E7-13610-71-00
Reed Valve Assembly
|
6E7-13610-71-00 |
— | ||
|
1
|
1
6E8-13610-01-00 Reed Valve Assembly |
6E8-13610-01-00 |
from US $147.73 |
||
|
2
|
2
682-W0004-00-00 Reed Set |
682-W0004-00-00 |
US $30.04 |
||
|
2
|
2
6E7-W0004-70-00
Reed Set
|
6E7-W0004-70-00 |
— | ||
|
3
|
3
682-13621-A0-00 Gasket, Valve Seat |
682-13621-A0-00 |
from US $7.70 |
||
|
4
|
4
677-14198-A0-00 Gasket |
677-14198-A0-00 |
US $3.26 |
||
| replacement | |||||
|
4
|
4
677-14198-A1-00 Gasket |
677-14198-A1-00 |
from US $3.26 |
||
|
5
|
5
6E7-13625-00-00
Spacer, Reed Valve
|
6E7-13625-00-00 |
— | ||
|
6
|
6
6E7-13588-01-00
Nut
|
6E7-13588-01-00 |
— | ||
|
7
|
7
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
9
|
9
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
9
|
9
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
6E7-14301-74-00
Carburetor Assembly 1
|
6E7-14301-74-00 |
— | ||
|
11
|
11
6E8-14301-05-00 Carburetor Assembly 1UR 15 |
6E8-14301-05-00 |
from US $297.75 |
||
|
12
|
12
6E7-14342-26-00
Jet, Pilot #52 (#52)
#52 #52 |
6E7-14342-26-00 |
— | ||
|
12
|
12
6E7-14342-28-00 Jet, Pilot (# 56)# 56 |
6E7-14342-28-00 |
from US $10.94 |
||
|
13
|
13
6E7-14341-70-00
Nozzle, Main
|
6E7-14341-70-00 |
— | ||
|
13
|
13
6E8-14341-00-00
Nozzle, Main
|
6E8-14341-00-00 |
— | ||
|
14
|
14
6E8-14390-12-00 Needle Valve Assembly |
6E8-14390-12-00 |
from US $26.49 |
||
|
15
|
15
367-14195-00-00 Washer, Needle Valve |
367-14195-00-00 |
from US $1.34 |
||
|
16
|
16
367-14396-00-00 Pipe |
367-14396-00-00 |
from US $5.38 |
||
|
17
|
17
6E7-14385-00-00 Float |
6E7-14385-00-00 |
from US $26.49 |
||
|
18
|
18
647-14386-10-00 Pin, Float |
647-14386-10-00 |
from US $2.88 |
||
|
19
|
19
677-14384-01-00 Gasket, Float Chamber |
677-14384-01-00 |
US $7.51 |
||
|
20
|
20
6E7-14381-00-00 Body, Float Chamber |
6E7-14381-00-00 |
from US $22.39 |
||
|
21
|
21
677-14343-52-00 Jet, Main (#104)Jet, main (104)(9.9d model) |
677-14343-52-00 |
from US $10.53 |
||
|
21
|
21
677-14343-68-00 Jet, Main (#136) |
677-14343-68-00 |
from US $10.64 |
||
|
22
|
22
1J2-14398-00-00 Gasket |
1J2-14398-00-00 |
from US $2 |
||
|
23
|
23
97890-04005-00 Screw, Pan Head |
97890-04005-00 |
US $3.68 |
||
|
24
|
24
655-14398-00-00 Gasket |
655-14398-00-00 |
from US $3.24 |
||
|
25
|
25
647-14323-00-00 Screw, Air Adjusting |
647-14323-00-00 |
from US $6.21 |
||
|
26
|
26
646-14212-01-00 Spring, Pilot Adjusting |
646-14212-01-00 |
from US $4.11 |
||
|
27
|
27
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
27
|
27
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
28
|
28
647-14326-00-00 Screw, Guide |
647-14326-00-00 |
from US $3.68 |
||
|
29
|
29
682-41210-00-00 Accel Arm Assembly |
682-41210-00-00 |
from US $39.79 |
||
|
30
|
30
677-14327-00-00 Screw |
677-14327-00-00 |
US $2.35 |
||
|
31
|
31
682-41291-00-00 Bushing |
682-41291-00-00 |
from US $8.64 |
||
|
32
|
32
677-41226-00-00 End, Throttle Lever |
677-41226-00-00 |
from US $7.79 |
||
|
33
|
33
682-41219-00-00
Rod
|
682-41219-00-00 |
— | ||
|
34
|
34
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.62 |
||
|
35
|
35
6E7-14157-00-00
Cover, Mixing
|
6E7-14157-00-00 |
— | ||
|
36
|
36
6E7-14227-00-00 Gasket |
6E7-14227-00-00 |
US $8.08 |
||
|
37
|
37
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
38
|
38
677-24434-02-00 Gasket, Body |
677-24434-02-00 |
from US $13.74 |
||
|
39
|
39
677-24411-02-00 Diaphragm |
677-24411-02-00 |
from US $16.09 |
||
|
40
|
40
6A0-24421-01-00 Valve,check |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
40
|
40
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $18.94 |
||
|
41
|
41
6E7-14325-00-00 Screw, Pan Head |
6E7-14325-00-00 |
from US $2.55 |
||
|
42
|
42
95380-03600-00 Nut |
95380-03600-00 |
from US $1.56 |
||
|
43
|
43
682-24412-00-00 Body 1 |
682-24412-00-00 |
from US $16.54 |
||
|
44
|
44
677-24435-02-00 Gasket, Body 2 |
677-24435-02-00 |
US $10.20 |
||
|
45
|
45
677-24471-01-00 Diaphragm |
677-24471-01-00 |
from US $14.47 |
||
|
46
|
46
677-24413-01-00 Body 2 |
677-24413-01-00 |
from US $18.02 |
||
|
47
|
47
677-24444-01-00 Screw |
677-24444-01-00 |
from US $3.38 |
||
| replacement | |||||
|
47
|
47
677-24444-09-00 Screw |
677-24444-09-00 |
from US $2.94 |
||
|
48
|
48
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
48
|
48
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
49
|
49
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
49
|
49
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
50
|
50
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
51
|
51
682-14417-02-00 Cover 1 |
682-14417-02-00 |
US $17.33 |
||
|
52
|
52
682-14418-01-00
Cover 2
|
682-14418-01-00 |
— | ||
|
53
|
53
682-14416-00-00 Gasket, Air Cleaner |
682-14416-00-00 |
US $4.41 |
||
| replacement | |||||
|
53
|
53
682-14416-A0-00 Gasket, Air Cleaner |
682-14416-A0-00 |
US $4.41 |
||
|
54
|
54
977-80505-14-00 Screw, Tapping |
977-80505-14-00 |
from US $1.84 |
||
|
55
|
55
682-14483-A0-00
Gasket
|
682-14483-A0-00 |
— | ||
|
56
|
56
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
57
|
57
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
58
|
58
682-41271-00-00 Knob, Choke |
682-41271-00-00 |
US $4.96 |
||
| replacement | |||||
|
58
|
58
682-41271-01-00 Knob, Choke |
682-41271-01-00 |
from US $3.98 |
||
|
59
|
59
682-41273-00-00 Grommet |
682-41273-00-00 |
US $5.29 |
||
|
60
|
60
682-41252-01-00
Lever, Choke 1
|
682-41252-01-00 |
— | ||
|
61
|
61
682-41267-00-00
Bushing, Joint
|
682-41267-00-00 |
— | ||
|
62
|
62
682-41263-00-00 Pin, Chokelever |
682-41263-00-00 |
US $4.84 |
||
|
63
|
63
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
64
|
64
90116-06130-00 Bolt, Stud |
90116-06130-00 |
from US $3.47 |
||
|
65
|
65
90116-06M04-00 Bolt, Stud |
90116-06M04-00 |
from US $3.78 |
||
