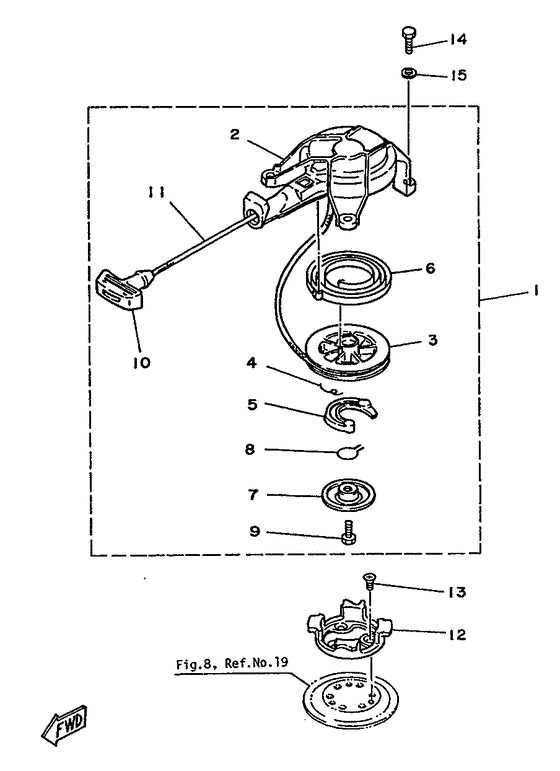

Starter Diagram Yamaha 2 MHS
- Year
- 1986
- Model
- 2B
- Model code
- 6A1
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 2
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6A1-15710-00-00 Starter Assy |
6A1-15710-00-00 |
from US $95.61 |
||
|
02
|
02
6A1-15711-00-00 Case, Starter |
6A1-15711-00-00 |
from US $46.42 |
||
|
03
|
03
6A1-15714-00-00 Drum, Sheave |
6A1-15714-00-00 |
from US $13.46 |
||
|
04
|
04
6A1-15767-00-00 Spring |
6A1-15767-00-00 |
from US $2.55 |
||
|
05
|
05
6A1-15741-00-00 Pawl, Drive |
6A1-15741-00-00 |
from US $9.35 |
||
|
06
|
06
6A1-15713-00-00 Spring, Starter |
6A1-15713-00-00 |
from US $16.86 |
||
|
07
|
07
6A1-15717-00-00 Shaft, Starter |
6A1-15717-00-00 |
US $13.32 |
||
| replacement | |||||
|
07
|
07
7RA-15716-00-00 Plate, Drive |
7RA-15716-00-00 |
US $13.32 |
||
|
08
|
08
6A1-15705-00-00 Spring, Drive Pawl |
6A1-15705-00-00 |
from US $4.53 |
||
|
09
|
09
97322-06012-00 Bolt |
97322-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
09
|
09
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
09
|
09
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
10
|
10
6A1-15755-01-00
Handle, Starter
|
6A1-15755-01-00 |
— | ||
|
12
|
12
6A1-15723-00-94 Pulley, Starter |
6A1-15723-00-94 |
from US $18.14 |
||
|
13
|
13
927-03060-12-00 Screw, Flat Head |
927-03060-12-00 |
US $3.12 |
||
| replacement | |||||
|
13
|
13
98780-06014-00 Screw Flat Head |
98780-06014-00 |
from US $3.12 |
||
|
14
|
14
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
