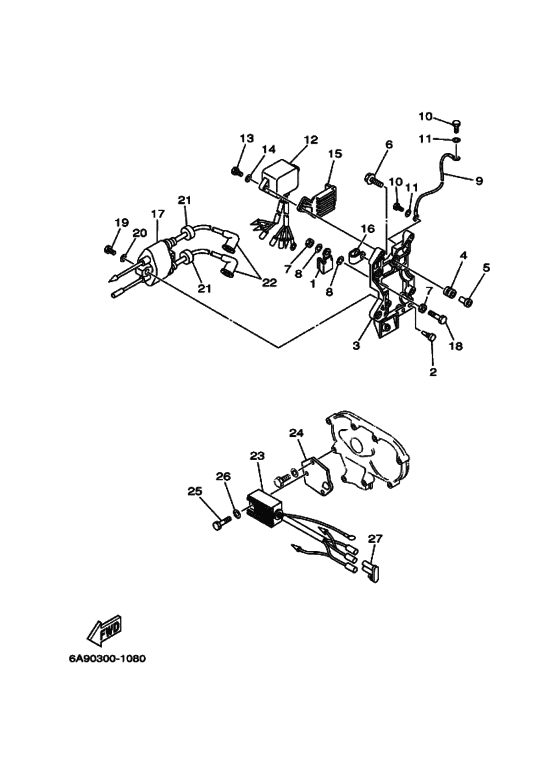

Electrical Diagram Yamaha 20 MHS/L
- Year
- 2002
- Model
- 20C
- Model code
- 6A9
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90465-08M13-00 Clamp |
90465-08M13-00 |
US $4.11 |
||
|
2
|
2
689-85547-00-00 Damper |
689-85547-00-00 |
US $3.97 |
||
|
3
|
3
695-85542-00-94 Bracket |
695-85542-00-94 |
from US $40.58 |
||
|
4
|
4
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $1.34 |
||
|
5
|
5
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
5
|
5
90387-06119-00 Collar |
90387-06119-00 |
from US $2.32 |
||
|
6
|
6
90119-06M88-00 Bolt, With Washer |
90119-06M88-00 |
from US $2.98 |
||
| replacement | |||||
|
6
|
6
90119-06311-00 |
90119-06311-00 |
from US $1.21 |
||
|
7
|
7
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
8
|
8
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
689-82519-00-00 Wire, Earth Lead |
689-82519-00-00 |
from US $10.28 |
||
|
10
|
10
97090-06012-00 Bolt |
97090-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
10
|
10
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
695-85540-11-00
C.d.i. Unit Assembly
|
695-85540-11-00 |
— | ||
| replacement | |||||
|
12
|
12
695-85540-12-00 C.d.i. Unit Assy |
695-85540-12-00 |
from US $323.30 |
||
|
13
|
13
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
14
|
14
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
689-85548-01-00
Holder
|
689-85548-01-00 |
— | ||
|
16
|
16
90464-12M00-00
Clamp
|
90464-12M00-00 |
— | ||
| replacement | |||||
|
16
|
16
90464-12158-00
Clamp
|
90464-12158-00 |
— | ||
|
17
|
17
680-85570-00-00 Ignition Coil Assy |
680-85570-00-00 |
US $102.38 |
||
| replacement | |||||
|
17
|
17
680-85570-02-00 Ignition Coil Assy |
680-85570-02-00 |
from US $102.38 |
||
|
18
|
18
97090-06016-00 Bolt |
97090-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
19
|
19
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
19
|
19
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
20
|
20
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
22
|
22
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
23
|
23
6J8-81960-00-00 Rectifier & Regulator Assy |
6J8-81960-00-00 |
from US $109.15 |
||
|
24
|
24
695-81915-00-00
Plate, Regulator Fitting
|
695-81915-00-00 |
— | ||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
26
|
26
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
6E5-82582-00-00 Cover, Wire Harness |
6E5-82582-00-00 |
from US $4.53 |
||
