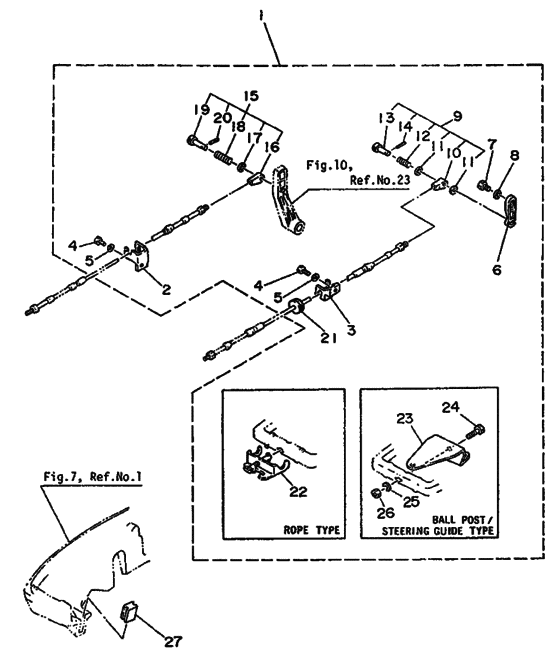

Bracket Diagram Yamaha 20 MHS/L
- Year
- 1986
- Model
- 20C
- Model code
- 6A9
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-48501-01-EJ
Remote Cont. Attachment Assy
|
689-48501-01-EJ |
— | ||
| replacements | |||||
|
1
|
1
689-48501-01-4D Remote Cont. Attachment Assy |
689-48501-01-4D |
US $294.28 |
||
|
1
|
1
689-48501-01-8D Remote Cont. Attachm |
689-48501-01-8D |
US $182.66 |
||
|
1
|
1
689-48501-21-EJ
Remote Cont. Attachment Assy
|
689-48501-21-EJ |
— | ||
| replacement | |||||
|
1
|
1
689-48501-21-8D ﾘﾓｺﾝｹｰﾌﾞﾙｱﾀｯﾁﾒﾝﾄAss'y |
689-48501-21-8D |
from US $120.80 |
||
|
2
|
2
648-48531-50-00 Bracket, Remote Control 1 |
648-48531-50-00 |
US $52.77 |
||
|
3
|
3
648-48532-50-00
Bracket, Remote Control 2
|
648-48532-50-00 |
— | ||
|
4
|
4
97310-06016-00 Bolt |
97310-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
4
|
4
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
4
|
4
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
648-48534-50-EJ Throttle Lever, Con Control |
648-48534-50-EJ |
US $19.09 |
||
|
7
|
7
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
648-84340-50-00
Socket Cord Assy 1
|
648-84340-50-00 |
— | ||
|
10
|
10
648-84346-50-00
Socket, Pilot Light
|
648-84346-50-00 |
— | ||
|
11
|
11
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
12
|
12
90501-10264-00 Spring, Compression |
90501-10264-00 |
from US $1.70 |
||
|
13
|
13
617-48361-90-00 Hook, Cable |
617-48361-90-00 |
US $21.96 |
||
| replacement | |||||
|
13
|
13
617-48361-91-00 Hook, Cable |
617-48361-91-00 |
from US $21.96 |
||
|
14
|
14
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
15
|
15
648-48330-50-00 Cable End Assy |
648-48330-50-00 |
from US $43.54 |
||
|
16
|
16
648-48346-50-00 Cable End, Remote Control |
648-48346-50-00 |
from US $15.02 |
||
|
17
|
17
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
18
|
18
90501-10071-00 Spring, Compression |
90501-10071-00 |
from US $2.55 |
||
|
19
|
19
617-48331-90-00 Hook, Cable |
617-48331-90-00 |
US $22.10 |
||
| replacement | |||||
|
19
|
19
617-48331-91-00 Hook, Cable |
617-48331-91-00 |
from US $22.10 |
||
|
20
|
20
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
21
|
21
90480-22039-00 Grommet |
90480-22039-00 |
from US $3.12 |
||
|
22
|
22
700-48510-12-00 Steering Hook Assy |
700-48510-12-00 |
from US $43.38 |
||
|
23
|
23
689-48511-00-00 Hook, Steering |
689-48511-00-00 |
US $48.36 |
||
| replacement | |||||
|
23
|
23
689-48511-02-00 Hook, Steering |
689-48511-02-00 |
from US $46.58 |
||
|
24
|
24
97375-10040-00 Bolt |
97375-10040-00 |
from US $3.40 |
||
| replacements | |||||
|
24
|
24
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.14 |
||
|
24
|
24
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.40 |
||
|
25
|
25
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
26
|
26
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
26
|
26
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
27
|
27
676-42724-40-00 GrommetA.P. |
676-42724-40-00 |
from US $6.94 |
||
