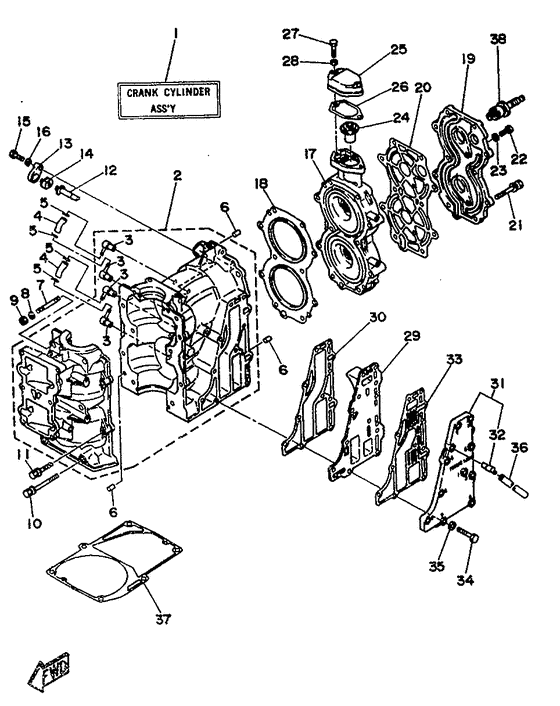

Cylinder. crankcase Diagram Yamaha 20 MHOS/L
- Year
- 1992
- Model
- 20D
- Model code
- 6L3
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-W0090-11-EJ Crank Cylinder Assy |
6L2-W0090-11-EJ |
US $2,825.80 |
||
| replacement | |||||
|
01
|
01
6L2-W0090-12-1S Crank Cylinder Assy |
6L2-W0090-12-1S |
from US $2,466.18 |
||
|
02
|
02
6L2-15100-10-94 Crankcase Assembly |
6L2-15100-10-94 |
US $2,151.60 |
||
| replacement | |||||
|
02
|
02
6L2-15100-10-00 Crankcase Assy |
6L2-15100-10-00 |
from US $1,260.06 |
||
|
03
|
03
6E5-11372-00-00 Nipple, Hose |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
03
|
03
6E5-11372-01-00 Nipple, Hose |
6E5-11372-01-00 |
from US $7.28 |
||
|
04
|
04
90445-07M15-00 Hose (L40) |
90445-07M15-00 |
US $4.25 |
||
| replacement | |||||
|
04
|
04
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
05
|
05
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
06
|
06
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.66 |
||
|
07
|
07
95612-08645-00 Bolt, Stud (95611-08645) |
95612-08645-00 |
from US $2.77 |
||
| replacement | |||||
|
07
|
07
95617-08645-00 Bolt, Stud |
95617-08645-00 |
from US $5.53 |
||
|
08
|
08
902-01080-86-00
Washer, Plate
|
902-01080-86-00 |
— | ||
| replacement | |||||
|
08
|
08
90201-08649-00 Washer, Plate |
90201-08649-00 |
from US $1.28 |
||
|
09
|
09
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
10
|
10
90119-08M21-00 Bolt,with Washer |
90119-08M21-00 |
from US $3.08 |
||
| replacement | |||||
|
10
|
10
90119-08M07-00 Bolt, With Washer |
90119-08M07-00 |
from US $4.68 |
||
|
11
|
11
90119-06M14-00 Bolt, With Washer |
90119-06M14-00 |
from US $9.35 |
||
|
12
|
12
6J8-11325-00-00 Anode |
6J8-11325-00-00 |
from US $6.39 |
||
|
13
|
13
6M3-11327-00-94
Cover, Anode
|
6M3-11327-00-94 |
— | ||
|
14
|
14
6M3-11328-00-00
Grommet, Anode
|
6M3-11328-00-00 |
— | ||
|
15
|
15
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
16
|
16
92990-06620-00
Washer
|
92990-06620-00 |
— | ||
|
17
|
17
6L2-11111-00-94
Head, Cylinder.1
|
6L2-11111-00-94 |
— | ||
| replacement | |||||
|
17
|
17
6L2-11111-01-1S Head, Cylinder 1 |
6L2-11111-01-1S |
from US $157.50 |
||
|
18
|
18
6L2-11181-A1-00 Gasket, Cylinder Head 1 |
6L2-11181-A1-00 |
US $58.03 |
||
| replacement | |||||
|
18
|
18
6L2-11181-A3-00 Gasket, Cylinder Head 1 |
6L2-11181-A3-00 |
from US $34.06 |
||
|
19
|
19
6L2-11191-00-9M Cover, Cylinder Head 1 |
6L2-11191-00-9M |
US $72.53 |
||
| replacement | |||||
|
19
|
19
6L2-11191-00-1S Cover, Cylinder Head 1 |
6L2-11191-00-1S |
from US $43.54 |
||
|
20
|
20
6L2-11193-A0-00 Gasket, Head Cover 1 |
6L2-11193-A0-00 |
US $16.29 |
||
| replacement | |||||
|
20
|
20
6L2-11193-A1-00 Gasket, Head Cover 1 |
6L2-11193-A1-00 |
from US $15.80 |
||
|
21
|
21
901-1908M-20-00
Boulon, Avec Rondelle
|
901-1908M-20-00 |
— | ||
| replacement | |||||
|
21
|
21
90119-08M66-00 Bolt, With Washer |
90119-08M66-00 |
from US $5.22 |
||
|
22
|
22
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
22
|
22
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
6E5-12411-01-00 Thermostat |
6E5-12411-01-00 |
US $50.01 |
||
| replacement | |||||
|
24
|
24
6E5-12411-02-00 Thermostat |
6E5-12411-02-00 |
from US $41.11 |
||
|
25
|
25
6N4-12413-00-9M
Cover, Thermostat
|
6N4-12413-00-9M |
— | ||
|
26
|
26
6J8-12414-A0-00 Gasket, Cover |
6J8-12414-A0-00 |
US $3.97 |
||
| replacement | |||||
|
26
|
26
61A-12414-A0-00 Gasket, Cover |
61A-12414-A0-00 |
from US $3.97 |
||
|
27
|
27
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
27
|
27
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
6L2-41111-00-9M Inner Cover, Exhaust |
6L2-41111-00-9M |
US $69.36 |
||
| replacement | |||||
|
29
|
29
6L2-41111-00-1S Inner Cover, Exhaust |
6L2-41111-00-1S |
from US $47.29 |
||
|
30
|
30
6L2-41112-A1-00 Gasket, Exhaust Inner Cover |
6L2-41112-A1-00 |
US $18.84 |
||
| replacement | |||||
|
30
|
30
6L2-41112-A3-00 Gasket, Exhaust Inner Cover |
6L2-41112-A3-00 |
from US $18.84 |
||
|
31
|
31
6L2-41113-00-9M Outer Cover, Exhaust |
6L2-41113-00-9M |
US $60.51 |
||
| replacement | |||||
|
31
|
31
6L2-41113-00-1S Outer Cover, Exhaust |
6L2-41113-00-1S |
from US $56.81 |
||
|
32
|
32
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.28 |
||
|
33
|
33
6L2-41114-A1-00 Gasket, Exhaust Outer Cover |
6L2-41114-A1-00 |
from US $9.95 |
||
|
34
|
34
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
34
|
34
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
35
|
35
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
36
|
36
90445-10M40-00 Hose (L330) |
90445-10M40-00 |
US $6.38 |
||
| replacement | |||||
|
36
|
36
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.38 |
||
|
37
|
37
6L2-43113-A1-00
Plate, clamp bracket
|
6L2-43113-A1-00 |
— | ||
|
38
|
38
947-02002-71-00
Plug, Spark (Ngk Br7Hs-10)
|
947-02002-71-00 |
— | ||
| replacement | |||||
|
38
|
38
BR7-HS000-00-00 Plug, Spark (10 in pack) |
BR7-HS000-00-00 |
US $19.60 |
||
