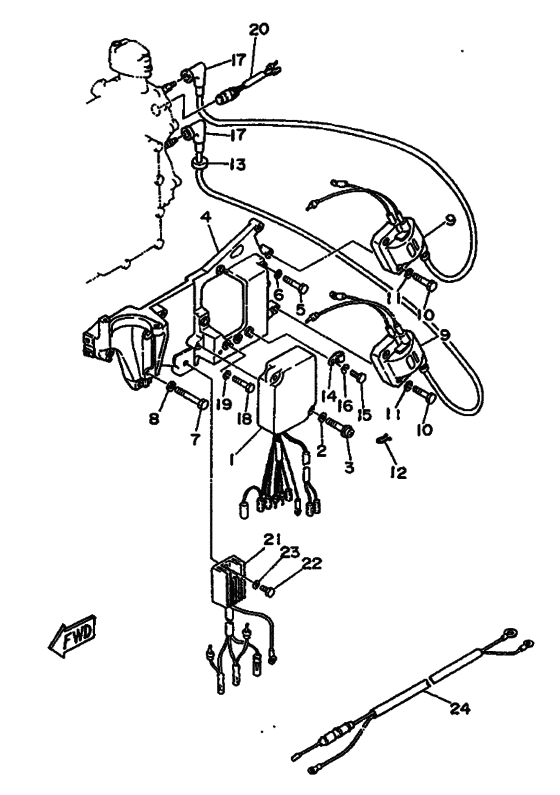

Electrical 1 Diagram Yamaha 20 EMS/L
- Year
- 1993
- Model
- 20D
- Model code
- 6L3
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-85540-10-00
Cdi Unit Assembly
|
6L2-85540-10-00 |
— | ||
|
2
|
2
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
3
|
3
90159-06M15-00
Screw, With Washer
|
90159-06M15-00 |
— | ||
|
4
|
4
6L2-85542-01-94 Bracket |
6L2-85542-01-94 |
US $171.32 |
||
| replacement | |||||
|
4
|
4
6L2-85542-02-00 Bracket |
6L2-85542-02-00 |
from US $171.32 |
||
|
5
|
5
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
5
|
5
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
90101-06M16-00 Bolt |
90101-06M16-00 |
from US $9.78 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
9
|
9
6L2-85570-N0-00
Ignition Coil Assy
|
6L2-85570-N0-00 |
— | ||
| replacement | |||||
|
9
|
9
6L2-85570-10-00
Ignition Coil Assembly
|
6L2-85570-10-00 |
— | ||
|
10
|
10
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
13
|
13
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
14
|
14
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
15
|
15
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
17
|
17
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
18
|
18
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
689-82560-00-00 Thermo Switch Assy |
689-82560-00-00 |
from US $68.25 |
||
|
21
|
21
6J8-81960-00-00 Rectifier & Regulator Assy |
6J8-81960-00-00 |
from US $120.97 |
||
|
22
|
22
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
22
|
22
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
6J8-82105-10-00 Battery Cable(20DE(R)0/25NE(R)O MODEL) |
6J8-82105-10-00 |
from US $101.96 |
||
