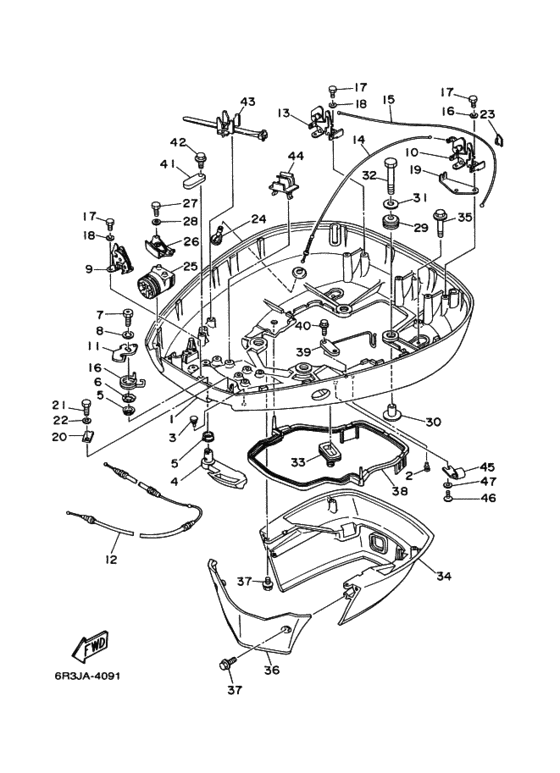

Bottom cowling assy Diagram Yamaha 200 ETOL/XL
- Year
- 1995
- Model
- 200B
- Model code
- 6R4
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R3-42711-42-8D
Cowling, Bottom 1
|
6R3-42711-42-8D |
— | ||
| replacement | |||||
|
1
|
1
6R3-42711-43-8D
Bottom Cowl
|
6R3-42711-43-8D |
— | ||
|
2
|
2
90480-06M19-00 Grommet |
90480-06M19-00 |
from US $3.33 |
||
|
3
|
3
6H4-42748-00-00 Grommet |
6H4-42748-00-00 |
US $1.98 |
||
|
4
|
4
6R3-42815-00-8D Lever, Clampレバー，クランプ; |
6R3-42815-00-8D |
US $129.60 |
||
|
5
|
5
90386-13M88-00 Bush |
90386-13M88-00 |
from US $4.99 |
||
|
6
|
6
90206-13M10-00 Washer, Waveワツシヤ，ウエイブ; |
90206-13M10-00 |
from US $2.91 |
||
|
7
|
7
90109-08M45-00 Bolt |
90109-08M45-00 |
from US $8.08 |
||
|
8
|
8
92990-08200-00 Washer, Plainワツシヤ，プレーン; |
92990-08200-00 |
from US $1.18 |
||
|
9
|
9
6R3-42824-00-00 Base, Clamp Leverベース，クランプレバー; |
6R3-42824-00-00 |
from US $76.96 |
||
|
10
|
10
6R3-42811-01-00 Stayステー; |
6R3-42811-01-00 |
from US $66.22 |
||
|
11
|
11
6R3-42816-00-00 Lever, Clampレバー，クランプ; |
6R3-42816-00-00 |
from US $27.43 |
||
|
12
|
12
6R3-42850-10-00 Wire Completeワイヤー，コンプリート; |
6R3-42850-10-00 |
from US $80.41 |
||
|
13
|
13
6R3-42811-10-00 Stayステー; |
6R3-42811-10-00 |
from US $71.29 |
||
|
14
|
14
6N7-42850-10-00 Wire Completeワイヤー，コンプリート; |
6N7-42850-10-00 |
from US $63.14 |
||
|
15
|
15
6N7-42850-20-00 Wire Completeワイヤー，コンプリート; |
6N7-42850-20-00 |
from US $63.14 |
||
|
16
|
16
6R3-42813-00-00 Spring, Clamp Leverスプリング; |
6R3-42813-00-00 |
from US $6.94 |
||
|
17
|
17
97095-06016-00 Boltボルト; |
97095-06016-00 |
US $1.52 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
6N7-42828-00-00 Plate, Clampプレート，クランプ; |
6N7-42828-00-00 |
from US $10.77 |
||
|
20
|
20
6R3-42828-00-00 Plate, Clampプレート，クランプ; |
6R3-42828-00-00 |
from US $2.98 |
||
|
21
|
21
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
21
|
21
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
6N7-42841-00-00
Mark, Clamp
マーク，クランプ; |
6N7-42841-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
マーク，クランプ; |
999-99999-99-00 |
— | ||
|
24
|
24
6E5-44391-00-00 Nipple, Hoseニツプル，ホース; |
6E5-44391-00-00 |
from US $5.10 |
||
|
25
|
25
6R3-42725-20-00
Grommet
グロメツト; |
6R3-42725-20-00 |
— | ||
|
26
|
26
6R3-42738-01-5B
Plate, Fitting
プレート，フイツテイング; |
6R3-42738-01-5B |
— | ||
| replacement | |||||
|
26
|
26
6R3-42738-02-CA
Plate, Fitting
プレート，フイツテイング; |
6R3-42738-02-CA |
— | ||
|
27
|
27
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
27
|
27
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
27
|
27
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
29
|
29
90480-22M15-00 Grommet |
90480-22M15-00 |
from US $5.67 |
||
|
30
|
30
90387-08M37-00 Collarカラー; |
90387-08M37-00 |
from US $7.79 |
||
|
31
|
31
90201-08M54-00 Washer, Plateワツシヤ，プレート; |
90201-08M54-00 |
from US $2.70 |
||
|
32
|
32
97090-08035-00 Boltボルト; |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
32
|
32
97070-08035-00 Boltボルト; |
97070-08035-00 |
from US $2.59 |
||
|
32
|
32
97095-08035-00 Boltボルト; |
97095-08035-00 |
from US $5.53 |
||
|
33
|
33
688-42726-10-00 Grommetグロメツト; |
688-42726-10-00 |
US $5 |
||
|
34
|
34
6R3-42741-00-8D
Apron
エプロン; |
6R3-42741-00-8D |
— | ||
| replacement | |||||
|
34
|
34
999-99028-31-00
Apron Set 1 6R342741018D
エプロン; |
999-99028-31-00 |
— | ||
|
35
|
35
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
35
|
35
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
35
|
35
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
36
|
36
6R3-42771-00-8D Apronエプロン; |
6R3-42771-00-8D |
US $105.97 |
||
| replacement | |||||
|
36
|
36
6R3-42771-01-8D Apronエプロン; |
6R3-42771-01-8D |
from US $105.97 |
||
|
37
|
37
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
37
|
37
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
37
|
37
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
38
|
38
6E5-42716-00-00 Rubber, Seal 1ラバー，シール １; |
6E5-42716-00-00 |
US $89.53 |
||
|
39
|
39
6K7-82588-00-00 Plateプレート; |
6K7-82588-00-00 |
from US $22.67 |
||
|
40
|
40
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
40
|
40
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
40
|
40
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
41
|
41
6E5-82588-00-00 Plateプレート; |
6E5-82588-00-00 |
from US $5.97 |
||
|
42
|
42
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
42
|
42
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
42
|
42
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
43
|
43
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $6.52 |
||
|
44
|
44
6E5-82594-00-00 Clamp |
6E5-82594-00-00 |
from US $6.52 |
||
|
45
|
45
6E5-24367-10-00 Clamp, Fuel Pipe 2クランプ，フユエルパイプ ２; |
6E5-24367-10-00 |
from US $14.31 |
||
|
46
|
46
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.91 |
||
|
47
|
47
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
