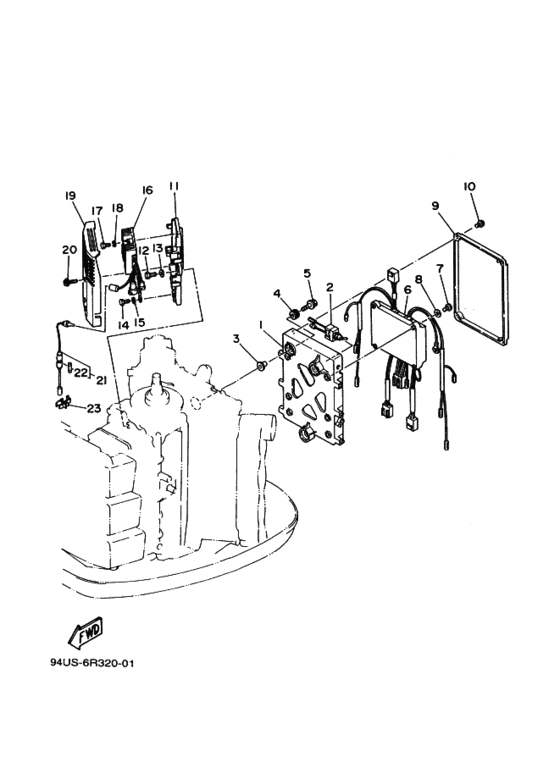

Electrical 1 Diagram Yamaha 200 ETOL/XL
- Year
- 1995
- Model
- 200B
- Model code
- 6R4
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R3-85542-01-4D
Bracket
|
6R3-85542-01-4D |
— | ||
| replacement | |||||
|
1
|
1
6R3-85542-01-8D
Bracket
|
6R3-85542-01-8D |
— | ||
|
2
|
2
6R3-8259E-00-00 Switch Assyスイツチアセンブリ; |
6R3-8259E-00-00 |
from US $73.36 |
||
|
3
|
3
90387-06M03-00 Collarカラー; |
90387-06M03-00 |
from US $5.81 |
||
|
4
|
4
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.36 |
||
|
5
|
5
90119-06M60-00 Bolt, With Washer |
90119-06M60-00 |
from US $4.39 |
||
| replacements | |||||
|
5
|
5
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
5
|
5
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.86 |
||
|
6
|
6
61H-85540-00-00 Cdi Unit Assembly．．．ＣＤＩユニツトアセンブリ; |
61H-85540-00-00 |
US $1,638.14 |
||
| replacement | |||||
|
6
|
6
62H-85540-00-00 C.d.i. Unit Assembly．．．ＣＤＩユニツトアセンブリ; |
62H-85540-00-00 |
US $1,638.14 |
||
|
7
|
7
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
9
|
9
6R3-85537-00-00 Coverカバー; |
6R3-85537-00-00 |
from US $44.05 |
||
|
10
|
10
90159-06M11-00 Screw, With Washer |
90159-06M11-00 |
from US $1.98 |
||
|
11
|
11
6R3-81948-00-94
Bracket
ブラケツト; |
6R3-81948-00-94 |
— | ||
|
12
|
12
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
12
|
12
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
14
|
14
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
6R3-81960-10-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
6R3-81960-10-00 |
from US $235.82 |
||
|
17
|
17
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
17
|
17
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
6R3-81942-00-00 Coverカバー; |
6R3-81942-00-00 |
from US $30.60 |
||
|
20
|
20
90159-06M08-00 Screw, With Washer |
90159-06M08-00 |
from US $2.91 |
||
|
21
|
21
6R3-82150-00-00 Fuse Holder Assyフユーズホルダアセンブリ; |
6R3-82150-00-00 |
US $21.39 |
||
|
22
|
22
705-82151-00-00 Fuse (30A)．フユーズ ; ３０Ａ |
705-82151-00-00 |
US $3.97 |
||
| replacement | |||||
|
22
|
22
705-82151-01-00 FUSE 30A．フユーズ ; ３０Ａ |
705-82151-01-00 |
from US $3.97 |
||
|
23
|
23
6G5-82152-00-00 Holder, Fuseホルダ，フユーズ; |
6G5-82152-00-00 |
from US $2.36 |
||
