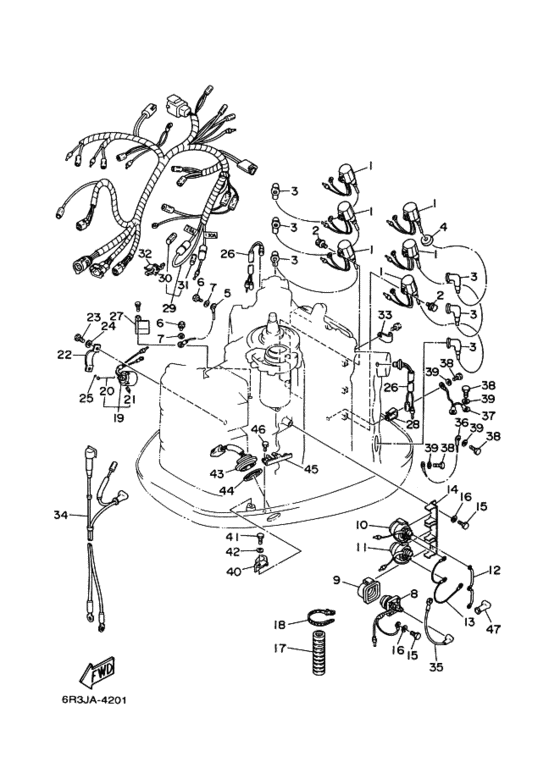

Electrical 2 Diagram Yamaha 200 ETOL/XL
- Year
- 1995
- Model
- 200B
- Model code
- 6R4
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R3-85570-01-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
6R3-85570-01-00 |
from US $70.70 |
||
|
2
|
2
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
2
|
2
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
2
|
2
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
3
|
3
6E3-82370-20-00
Plug Cap Assy
プラグキヤツプアセンブリ; |
6E3-82370-20-00 |
— | ||
| replacement | |||||
|
3
|
3
6E3-82370-21-00 Plug Cap Assyプラグキヤツプアセンブリ; |
6E3-82370-21-00 |
from US $15.53 |
||
|
4
|
4
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
5
|
5
662-82519-00-00 Wire, Earth Leadワイヤ，アースリード; |
662-82519-00-00 |
from US $7.76 |
||
|
6
|
6
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
6
|
6
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
61A-81941-00-00 Starter Relay Assyスタータリレーアセンブリ; |
61A-81941-00-00 |
from US $107.06 |
||
|
9
|
9
689-81952-10-00 Holder, Relayホルダー， リレー; |
689-81952-10-00 |
from US $17.71 |
||
|
10
|
10
6E5-81950-00-00 Relay Assyリレーアセンブリ; |
6E5-81950-00-00 |
US $171.32 |
||
| replacement | |||||
|
10
|
10
6E5-81950-01-00 Relay Assyリレーアセンブリ; |
6E5-81950-01-00 |
from US $171.32 |
||
|
11
|
11
6E5-8195A-00-00 Relay Assyリレーアセンブリ; |
6E5-8195A-00-00 |
US $219.67 |
||
| replacement | |||||
|
11
|
11
6E5-8195A-01-00 Relay Assyリレーアセンブリ; |
6E5-8195A-01-00 |
from US $219.67 |
||
|
12
|
12
6G5-87149-10-00 Connectorコネクター; |
6G5-87149-10-00 |
from US $8.42 |
||
|
13
|
13
6E5-82116-00-00 Wire, Minus Leadワイヤ，マイナスリード; |
6E5-82116-00-00 |
US $16.72 |
||
|
14
|
14
6G5-81948-11-00 Bracket |
6G5-81948-11-00 |
from US $21.22 |
||
|
15
|
15
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
6E9-83557-70-00 Tubeチユーブ; |
6E9-83557-70-00 |
US $4.11 |
||
| replacement | |||||
|
17
|
17
6N7-83557-00-00 Tube (I.dia:22Mm)チユーブ; |
6N7-83557-00-00 |
from US $4.11 |
||
|
18
|
18
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
18
|
18
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
19
|
19
6G5-86110-01-00
Solenoid
ソレノイド; |
6G5-86110-01-00 |
— | ||
|
20
|
20
6G5-86119-00-00
Wire, Pull
．ワイヤ，プル; |
6G5-86119-00-00 |
— | ||
|
21
|
21
91690-30010-00 Pin, Spring．ピン，スプリング; |
91690-30010-00 |
from US $1.56 |
||
|
22
|
22
6G5-86115-00-00
Holder, Solenoid
ホルダ，ソレノイド; |
6G5-86115-00-00 |
— | ||
|
23
|
23
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
23
|
23
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
25
|
25
93210-03261-00 O-Ring |
93210-03261-00 |
from US $2.02 |
||
|
26
|
26
688-82560-10-00 Thermo Switch Assyサーモスイツチアセンブリ; |
688-82560-10-00 |
from US $50.50 |
||
|
27
|
27
90465-08M33-00 Clamp |
90465-08M33-00 |
from US $6.52 |
||
|
28
|
28
90465-10M14-00
Clamp
|
90465-10M14-00 |
— | ||
|
29
|
29
6R3-82590-13-00
Wire Harness Assembly
ワイヤハーネスアセンブリ; |
6R3-82590-13-00 |
— | ||
|
30
|
30
682-82151-00-00 Fuse．フユーズ ; ２０Ａ |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
30
|
30
682-82151-01-00 Fuse (20A)．フユーズ ; ２０Ａ |
682-82151-01-00 |
US $1.81 |
||
|
30
|
30
682-82151-02-00 FUSE．フユーズ ; ２０Ａ |
682-82151-02-00 |
from US $1.81 |
||
|
31
|
31
705-82151-00-00 Fuse (30A)．フユーズ ; ３０Ａ |
705-82151-00-00 |
US $3.97 |
||
| replacement | |||||
|
31
|
31
705-82151-01-00 FUSE 30A．フユーズ ; ３０Ａ |
705-82151-01-00 |
from US $3.97 |
||
|
32
|
32
6G5-82152-00-00 Holder, Fuseホルダ，フユーズ; |
6G5-82152-00-00 |
from US $2.36 |
||
|
33
|
33
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
34
|
34
6R3-82105-J0-00 Battery Cableワイヤハーネス; |
6R3-82105-J0-00 |
US $315 |
||
|
35
|
35
6E5-82117-00-00 Wire, Leadワイヤ，リード; |
6E5-82117-00-00 |
US $26.35 |
||
| replacements | |||||
|
35
|
35
6E5-82117-01-00 Wire, Leadワイヤ，リード; |
6E5-82117-01-00 |
US $26.35 |
||
|
35
|
35
6E5-82117-02-00 Wire, Leadワイヤ，リード; |
6E5-82117-02-00 |
US $19.33 |
||
|
36
|
36
6R3-82519-00-00 Wire, Earth Leadワイヤ，アースリード; |
6R3-82519-00-00 |
from US $13.32 |
||
|
37
|
37
6E5-82531-00-00 Wire, Leadワイヤ，リード; |
6E5-82531-00-00 |
US $10.34 |
||
| replacement | |||||
|
37
|
37
6E5-82531-10-00 Wire, Leadワイヤ，リード; |
6E5-82531-10-00 |
from US $10.34 |
||
|
38
|
38
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
38
|
38
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
39
|
39
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
40
|
40
90465-12M25-00 Clamp |
90465-12M25-00 |
from US $7.37 |
||
|
41
|
41
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
41
|
41
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
42
|
42
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
43
|
43
6R3-82563-00-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; |
6R3-82563-00-00 |
US $124.07 |
||
| replacement | |||||
|
43
|
43
6R3-82563-01-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; |
6R3-82563-01-00 |
from US $78.10 |
||
|
44
|
44
6E5-82587-00-00 Gasket |
6E5-82587-00-00 |
US $5.58 |
||
|
45
|
45
6R3-83614-00-00 Bracket |
6R3-83614-00-00 |
from US $9.07 |
||
|
46
|
46
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
46
|
46
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
46
|
46
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
47
|
47
6G5-82119-00-00 Cover, Lead Wireカバー，リードワイヤ; |
6G5-82119-00-00 |
US $5.53 |
||
| replacement | |||||
|
47
|
47
6G5-82119-10-00 Cover, Lead Wireカバー，リードワイヤ; |
6G5-82119-10-00 |
from US $5.53 |
||
