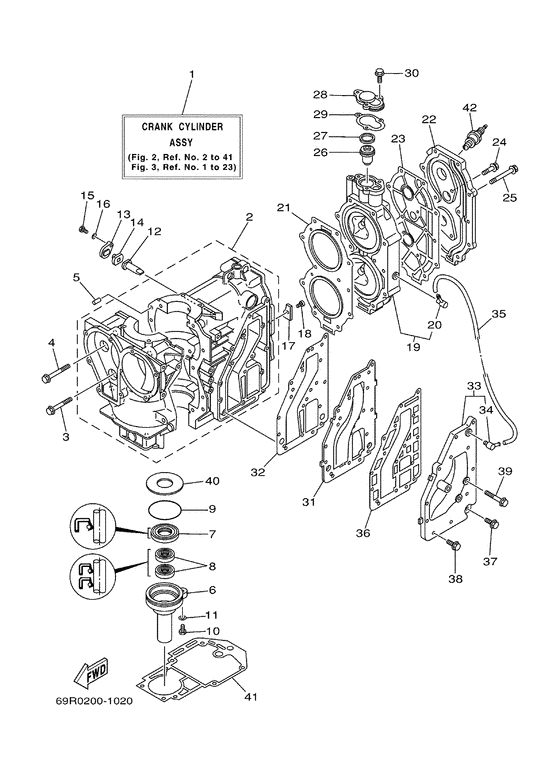

Cylinder. crankcase Diagram Yamaha 25 WHS/L
- Year
- 2002
- Model
- 25B
- Model code
- 69R
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Russia (230)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
69P-W0090-00-1S Crank Cylinder Assy |
69P-W0090-00-1S |
US $2,626.80 |
||
|
02
|
02
69P-15100-00-1S Crankcase Assy |
69P-15100-00-1S |
US $1,742.40 |
||
|
03
|
03
90119-08009-00 Bolt, With Washer |
90119-08009-00 |
from US $3.54 |
||
|
04
|
04
90119-08M65-00 Bolt, With Washer |
90119-08M65-00 |
from US $4.39 |
||
|
05
|
05
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
06
|
06
689-15396-01-5B Housing, Oil Seal |
689-15396-01-5B |
US $35.99 |
||
| replacement | |||||
|
06
|
06
689-15396-01-CA Housing, Oil Seal |
689-15396-01-CA |
from US $31.79 |
||
|
07
|
07
93102-25008-00 Oil Seal |
93102-25008-00 |
from US $7.07 |
||
|
08
|
08
931-01160-01-00 Oil Seal |
931-01160-01-00 |
from US $9.15 |
||
|
09
|
09
932-1058M-21-00
O-Ring
|
932-1058M-21-00 |
— | ||
| replacement | |||||
|
09
|
09
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $3.04 |
||
|
10
|
10
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
12
|
12
6J8-11325-00-00 Anode |
6J8-11325-00-00 |
from US $6.39 |
||
|
13
|
13
6H3-11327-00-1S Cover, Anode |
6H3-11327-00-1S |
US $18.99 |
||
| replacement | |||||
|
13
|
13
6H3-11327-00-94 Cover, Anode |
6H3-11327-00-94 |
from US $18.99 |
||
|
14
|
14
6H3-11328-00-00 Grommet, Anode |
6H3-11328-00-00 |
US $2.64 |
||
|
15
|
15
97013-06016-00 Bolt |
97013-06016-00 |
from US $1.39 |
||
| replacements | |||||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
15
|
15
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
16
|
16
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
17
|
17
689-11325-00-00 Anode |
689-11325-00-00 |
from US $8.78 |
||
|
18
|
18
90151-06M02-00 Screw, Countersunk |
90151-06M02-00 |
from US $2.02 |
||
|
19
|
19
61N-11111-01-1S Head, Cylinder 1 |
61N-11111-01-1S |
from US $182.12 |
||
|
20
|
20
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.76 |
||
|
21
|
21
61N-11181-A1-00 Gasket, Cylinder Head 1 |
61N-11181-A1-00 |
US $47.11 |
||
| replacement | |||||
|
21
|
21
61N-11181-A2-00 Gasket, Cylinder Head 1 |
61N-11181-A2-00 |
from US $35.70 |
||
|
22
|
22
61N-11191-01-1S Cover, Cylinder Head 1 |
61N-11191-01-1S |
from US $55.40 |
||
|
23
|
23
61T-11193-A1-00 Gasket, Head Cover 1 |
61T-11193-A1-00 |
from US $11.90 |
||
|
24
|
24
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $2.22 |
||
|
25
|
25
90119-08015-00 Bolt, With Washer |
90119-08015-00 |
from US $4.14 |
||
|
26
|
26
6E5-12411-01-00 Thermostat |
6E5-12411-01-00 |
US $50.01 |
||
| replacement | |||||
|
26
|
26
6E5-12411-02-00 Thermostat |
6E5-12411-02-00 |
from US $41.11 |
||
|
27
|
27
90201-21567-00 Washer, Plate |
90201-21567-00 |
from US $6.52 |
||
|
28
|
28
655-12413-01-1S Cover, Thermostat |
655-12413-01-1S |
from US $26.73 |
||
|
29
|
29
655-12414-A1-00 Gasket, Cover |
655-12414-A1-00 |
from US $3.72 |
||
|
30
|
30
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $2.22 |
||
|
31
|
31
6K8-41121-00-1S Inner Cover,exhaust |
6K8-41121-00-1S |
from US $50.84 |
||
|
32
|
32
6K8-41122-A1-00 Gasket, Exhaust Inner Cover |
6K8-41122-A1-00 |
from US $12.12 |
||
|
33
|
33
61N-41123-00-1S Outer Cover, Exhaust |
61N-41123-00-1S |
from US $59.24 |
||
|
34
|
34
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.76 |
||
|
35
|
35
90445-10M41-00 Hose (L400) |
90445-10M41-00 |
US $6.38 |
||
| replacements | |||||
|
35
|
35
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.94 |
||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
6K8-41124-A1-00 Gasket, Exhaust Outer Cover |
6K8-41124-A1-00 |
from US $10.78 |
||
|
37
|
37
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.70 |
||
|
38
|
38
90119-06MA4-00 Bolt, With Washer |
90119-06MA4-00 |
from US $1.84 |
||
|
39
|
39
90119-06MA0-00 Bolt, With Washer |
90119-06MA0-00 |
US $1.28 |
||
| replacements | |||||
|
39
|
39
97595-06550-00 Bolt, With Washer |
97595-06550-00 |
US $1.28 |
||
|
39
|
39
97E-95065-50-00 BOLT HEXAGON WW DEEP RECESS |
97E-95065-50-00 |
from US $1.28 |
||
|
40
|
40
90201-50306-00 Washer, Plate |
90201-50306-00 |
from US $4.86 |
||
|
41
|
41
689-45113-A1-00 Gasket, Upper Casing |
689-45113-A1-00 |
from US $16.37 |
||
| replacement | |||||
|
41
|
41
61T-45113-A0-00 Gasket, Upper Casing |
61T-45113-A0-00 |
from US $16.37 |
||
|
42
|
42
94702-00217-00 Plug, Spark (Ngk B7Hs-10)For volga |
94702-00217-00 |
US $8.08 |
||
| replacements | |||||
|
42
|
42
B7H-S0000-00-00 Ngk Spark Plug B7HsFor volga |
B7H-S0000-00-00 |
US $26.28 |
||
|
42
|
42
BR7-HS000-00-00 Plug, Spark (10 in pack)For volga |
BR7-HS000-00-00 |
US $19.60 |
||
