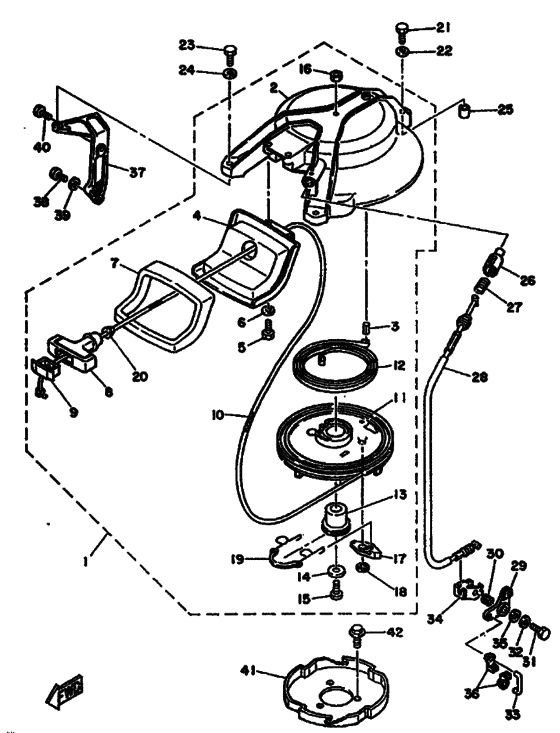

Starter Diagram Yamaha 25 EMOS/L
- Year
- 1992
- Model
- 25N
- Model code
- 6L2
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-15710-01-00 Starter Assembly |
6L2-15710-01-00 |
US $484.22 |
||
| replacements | |||||
|
1
|
1
6L2-15710-02-00 Starter Assy |
6L2-15710-02-00 |
US $484.22 |
||
|
1
|
1
6L2-15710-03-00 Starter Assy |
6L2-15710-03-00 |
US $424.13 |
||
|
2
|
2
6L2-15711-00-94 Case, Starter |
6L2-15711-00-94 |
from US $111.36 |
||
|
3
|
3
91690-40014-00 Pin, Spring |
91690-40014-00 |
from US $1.98 |
||
|
4
|
4
6L2-15758-00-94 Guide, Rope |
6L2-15758-00-94 |
US $53.74 |
||
| replacement | |||||
|
4
|
4
6L2-15758-01-94 Guide, Rope |
6L2-15758-01-94 |
from US $52.76 |
||
|
5
|
5
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
5
|
5
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
6L2-15762-00-00 Seal, Rubber 2 |
6L2-15762-00-00 |
from US $36.47 |
||
|
8
|
8
689-15755-01-00 Handle, Starter |
689-15755-01-00 |
US $10.63 |
||
| replacement | |||||
|
8
|
8
689-15755-02-00 HANDLE STARTER |
689-15755-02-00 |
from US $6.06 |
||
|
9
|
9
6F5-15779-02-00 Cover |
6F5-15779-02-00 |
from US $2.36 |
||
|
11
|
11
6J8-15714-00-00 Drum, Sheave |
6J8-15714-00-00 |
from US $38.41 |
||
|
12
|
12
90510-08M04-00 Spring, Spiral |
90510-08M04-00 |
from US $35.56 |
||
|
13
|
13
677-15717-01-00 Shaft, Starter |
677-15717-01-00 |
from US $30.04 |
||
|
14
|
14
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
14
|
14
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
15
|
15
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
15
|
15
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
16
|
16
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
16
|
16
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
16
|
16
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
17
|
17
676-15741-03-00 Pawl, Drive |
676-15741-03-00 |
from US $8.08 |
||
|
18
|
18
93430-06M02-00 Circlip |
93430-06M02-00 |
from US $1.70 |
||
|
19
|
19
6J8-15705-00-00 Spring, Drive Pawl |
6J8-15705-00-00 |
from US $12.62 |
||
|
20
|
20
6A0-15789-00-00
Damper
|
6A0-15789-00-00 |
— | ||
| replacement | |||||
|
20
|
20
697-15789-00-00 Damper |
697-15789-00-00 |
US $4.39 |
||
|
21
|
21
973-95060-35-00
Bolt, Hexagon
|
973-95060-35-00 |
— | ||
| replacement | |||||
|
21
|
21
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
23
|
23
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
25
|
25
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
25
|
25
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
25
|
25
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
26
|
26
656-15748-00-00 Plunger, Starter Stop |
656-15748-00-00 |
from US $11.33 |
||
|
27
|
27
90501-10227-00 Spring, Compression |
90501-10227-00 |
from US $2.55 |
||
|
28
|
28
6L2-15770-00-00 Cable Comp., Starter Stop |
6L2-15770-00-00 |
from US $18.99 |
||
|
29
|
29
6L2-15746-00-00 Arm |
6L2-15746-00-00 |
from US $12.18 |
||
|
30
|
30
90387-06M51-00 Collar |
90387-06M51-00 |
from US $4.96 |
||
|
31
|
31
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
31
|
31
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
32
|
32
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
32
|
32
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
33
|
33
6L2-15747-00-00 Link |
6L2-15747-00-00 |
from US $3.97 |
||
|
34
|
34
6L2-15774-00-00 Stay 4 |
6L2-15774-00-00 |
from US $10.77 |
||
|
35
|
35
90201-06M62-00 Washer, Plate |
90201-06M62-00 |
from US $2.55 |
||
|
36
|
36
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
37
|
37
6L2-15772-00-94 Stay 2 |
6L2-15772-00-94 |
from US $29.33 |
||
|
38
|
38
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
38
|
38
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
39
|
39
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
40
|
40
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
40
|
40
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
41
|
41
6L2-15723-00-00
Pulley, Starter
|
6L2-15723-00-00 |
— | ||
|
42
|
42
97516-08212-00
Bolt W/washer
|
97516-08212-00 |
— | ||
| replacements | |||||
|
42
|
42
97027-08012-00 Bolt |
97027-08012-00 |
from US $2.41 |
||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
