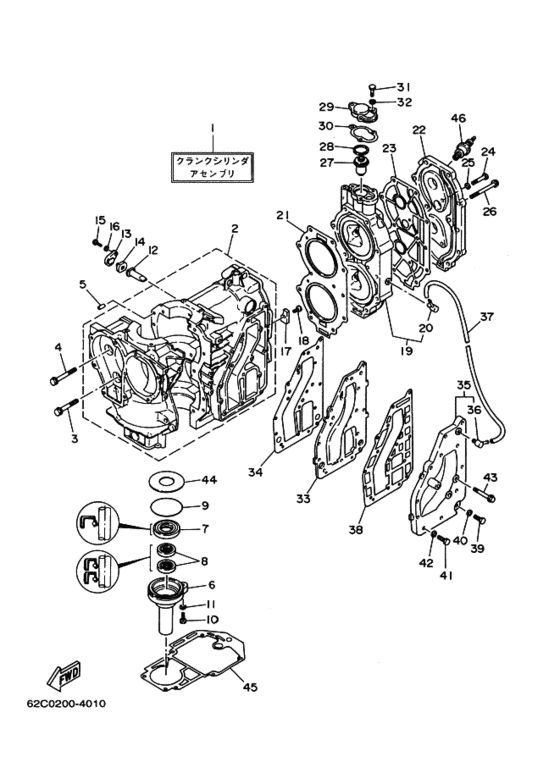

ｼﾘﾝﾀﾞ. ｸﾗﾝｸｹ-ｽ Diagram Yamaha 25 MKS/L
- Year
- 1998
- Model
- 25V
- Model code
- 62C
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62C-W0090-00-4D
Crank Cylinder Assy
クランクシリンダアセンブリ; ＊１ |
62C-W0090-00-4D |
— | ||
|
2
|
2
61N-15100-00-94
Crankcase Assembly
クランクケ−スアセンブリ; |
61N-15100-00-94 |
— | ||
| replacement | |||||
|
2
|
2
61N-15100-01-1S Crankcase Assyクランクケ−スアセンブリ; |
61N-15100-01-1S |
US $1,501.63 |
||
|
3
|
3
901-1908M-18-00
Boulon, Avec Rondelle
|
901-1908M-18-00 |
— | ||
| replacement | |||||
|
3
|
3
90119-08009-00 Bolt, With Washer |
90119-08009-00 |
from US $3.54 |
||
|
4
|
4
901-1908M-20-00
Boulon, Avec Rondelle
|
901-1908M-20-00 |
— | ||
| replacement | |||||
|
4
|
4
90119-08M66-00 Bolt, With Washer |
90119-08M66-00 |
from US $5.22 |
||
|
5
|
5
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
6
|
6
689-15396-01-5B Housing, Oil Sealハウジング，オイルシ−ル; |
689-15396-01-5B |
US $35.99 |
||
| replacement | |||||
|
6
|
6
689-15396-01-CA Housing, Oil Sealハウジング，オイルシ−ル; |
689-15396-01-CA |
from US $31.79 |
||
|
7
|
7
931-0225M-04-00
Oil Seal
オイルシ−ル; |
931-0225M-04-00 |
— | ||
| replacements | |||||
|
7
|
7
931-0225M-28-00 Oil Seal(6H4)オイルシ−ル; |
931-0225M-28-00 |
from US $9.44 |
||
|
7
|
7
93101-25M35-00 Oil Sealオイルシ−ル; |
93101-25M35-00 |
from US $14.17 |
||
|
8
|
8
931-0116M-36-00 Oil Sealオイルシ−ル; |
931-0116M-36-00 |
from US $5.06 |
||
|
9
|
9
932-1058M-21-00
O-Ring
|
932-1058M-21-00 |
— | ||
| replacement | |||||
|
9
|
9
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $3.04 |
||
|
10
|
10
97095-06022-00 Boltボルト; |
97095-06022-00 |
from US $2.50 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
6J8-11325-00-00 Anode |
6J8-11325-00-00 |
from US $6.39 |
||
|
13
|
13
6H3-11327-00-94 Cover, Anodeカバー，アノード; |
6H3-11327-00-94 |
from US $18.99 |
||
|
14
|
14
6H3-11328-00-00 Grommet, Anode |
6H3-11328-00-00 |
US $2.64 |
||
|
15
|
15
97013-06016-00 Boltボルト; |
97013-06016-00 |
from US $1.39 |
||
| replacements | |||||
|
15
|
15
97095-06016-00 Boltボルト; |
97095-06016-00 |
US $1.52 |
||
|
15
|
15
97014-06016-00 Bolt, Hexagonボルト; |
97014-06016-00 |
from US $1.39 |
||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.52 |
||
|
16
|
16
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
689-11325-00-00 Anode |
689-11325-00-00 |
from US $8.78 |
||
|
18
|
18
98280-06020-00 Screw, Flat Head |
98280-06020-00 |
US $3.40 |
||
| replacement | |||||
|
18
|
18
98780-06020-00 Screw Flat Head |
98780-06020-00 |
from US $3.40 |
||
|
19
|
19
62C-11111-00-94 Head, Cylinder 1ヘツド，シリンダ １; |
62C-11111-00-94 |
US $256.98 |
||
|
20
|
20
676-11372-00-00 Nipple, Hose．ニツプル，ホ−ス; |
676-11372-00-00 |
from US $8.76 |
||
|
21
|
21
61N-11181-A1-00 Gasket, Cylinder Head 1ガスケツト，シリンダヘツド １; |
61N-11181-A1-00 |
US $47.11 |
||
| replacement | |||||
|
21
|
21
61N-11181-A2-00 Gasket, Cylinder Head 1ガスケツト，シリンダヘツド １; |
61N-11181-A2-00 |
from US $35.70 |
||
|
22
|
22
61N-11191-01-9M Cover, Cylinder Head 1カバ−，シリンダヘツド １; |
61N-11191-01-9M |
US $55.40 |
||
| replacement | |||||
|
22
|
22
61N-11191-01-1S Cover, Cylinder Head 1カバ−，シリンダヘツド １; |
61N-11191-01-1S |
from US $55.40 |
||
|
23
|
23
61N-11193-01-00 Gasket, Hdcover 1ガスケツト，ヘツドカバ− １; |
61N-11193-01-00 |
US $11.90 |
||
| replacement | |||||
|
23
|
23
61T-11193-A1-00 Gasket, Head Cover 1ガスケツト，ヘツドカバ− １; |
61T-11193-A1-00 |
from US $11.90 |
||
|
24
|
24
97013-06022-00 Bolt (97313-06022-00)ボルト; |
97013-06022-00 |
from US $1.28 |
||
|
25
|
25
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
90119-08M29-00 Bolt, With Washer |
90119-08M29-00 |
US $7.93 |
||
| replacement | |||||
|
26
|
26
90119-08015-00 Bolt, With Washer |
90119-08015-00 |
from US $4.14 |
||
|
27
|
27
6F5-12411-02-00 Thermostat |
6F5-12411-02-00 |
US $50.01 |
||
| replacement | |||||
|
27
|
27
6F5-12411-03-00 Thermostat |
6F5-12411-03-00 |
from US $50.01 |
||
|
28
|
28
90201-21567-00 Washer, Plate |
90201-21567-00 |
from US $6.52 |
||
|
29
|
29
655-12413-01-9M Cover, Thermostatカバ−，サ−モスタツト; |
655-12413-01-9M |
US $31.45 |
||
| replacement | |||||
|
29
|
29
655-12413-01-1S Cover, Thermostatカバ−，サ−モスタツト; |
655-12413-01-1S |
from US $26.73 |
||
|
30
|
30
655-12414-A1-00 Gasket, Coverガスケツト，カバ−; |
655-12414-A1-00 |
from US $3.72 |
||
|
31
|
31
97013-06020-00 Boltボルト; |
97013-06020-00 |
from US $1.42 |
||
|
32
|
32
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
32
|
32
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
33
|
33
6K8-41121-00-9M Inner Cover, Exhaustインナカバー，エギゾウスト; |
6K8-41121-00-9M |
from US $37.69 |
||
| replacement | |||||
|
33
|
33
6K8-41121-00-1S Inner Cover,exhaustインナカバー，エギゾウスト; |
6K8-41121-00-1S |
from US $50.84 |
||
|
34
|
34
6K8-41122-A1-00 Gasket, Exhaust Inner Coverガスケット，エギゾーストインナカバー; |
6K8-41122-A1-00 |
from US $12.12 |
||
|
35
|
35
61N-41123-00-9M Outer Cover, Exhaustアウタカバー，エギゾースト; |
61N-41123-00-9M |
US $64.94 |
||
| replacement | |||||
|
35
|
35
61N-41123-01-1S Outer Cover, Exhaustアウタカバー，エギゾースト; |
61N-41123-01-1S |
from US $59.24 |
||
|
36
|
36
676-11372-00-00 Nipple, Hose．ニツプル，ホ−ス; |
676-11372-00-00 |
from US $8.76 |
||
|
37
|
37
90445-10M41-00 Hose (L400)ホ−ス; |
90445-10M41-00 |
US $6.38 |
||
| replacements | |||||
|
37
|
37
90445-10M43-00 Hose (L400)ホ−ス; |
90445-10M43-00 |
from US $6.94 |
||
|
37
|
37
999-99999-99-00
Not Available
ホ−ス; |
999-99999-99-00 |
— | ||
|
38
|
38
6K8-41124-A1-00 Gasket, Exhaust Outer Coverガスケット，エギゾーストアウタカバー; |
6K8-41124-A1-00 |
from US $10.78 |
||
|
39
|
39
97013-06025-00 Boltボルト; |
97013-06025-00 |
from US $1.48 |
||
|
40
|
40
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
40
|
40
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
41
|
41
97013-06030-00 Bolt |
97013-06030-00 |
from US $1.65 |
||
| replacement | |||||
|
41
|
41
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
42
|
42
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
42
|
42
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
43
|
43
90119-06MA0-00 Bolt, With Washer |
90119-06MA0-00 |
US $1.28 |
||
| replacements | |||||
|
43
|
43
97595-06550-00 Bolt, With Washer |
97595-06550-00 |
US $1.28 |
||
|
43
|
43
97E-95065-50-00 BOLT HEXAGON WW DEEP RECESS |
97E-95065-50-00 |
from US $1.28 |
||
|
44
|
44
90201-50306-00 Washer, Plate |
90201-50306-00 |
from US $4.86 |
||
|
45
|
45
689-45113-A1-00 Gasket, Upper Casingガスケツト，アツパ−ケ−シング; |
689-45113-A1-00 |
from US $16.37 |
||
| replacement | |||||
|
45
|
45
61T-45113-A0-00 Gasket, Upper Casingガスケツト，アツパ−ケ−シング; |
61T-45113-A0-00 |
from US $16.37 |
||
|
46
|
46
94703-00217-00 Plug, Spark (Ngk B7Hs-10)プラグ，スパ−ク ; ＮＧＫ Ｂ７ＨＳ−１０ |
94703-00217-00 |
US $5.81 |
||
| replacements | |||||
|
46
|
46
BR7-HS000-00-00 Plug, Spark (10 in pack)プラグ，スパ−ク ; ＮＧＫ Ｂ７ＨＳ−１０ |
BR7-HS000-00-00 |
US $19.60 |
||
|
46
|
46
B7H-S0000-00-00 Ngk Spark Plug B7Hsプラグ，スパ−ク ; ＮＧＫ Ｂ７ＨＳ−１０ |
B7H-S0000-00-00 |
US $26.28 |
||
