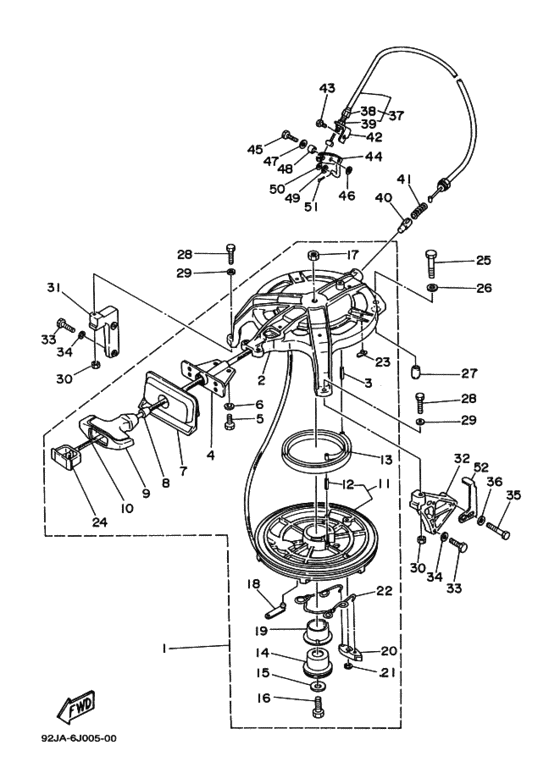

Starter Diagram Yamaha 25 E(M)KS/L
- Year
- 1993
- Model
- 25H
- Model code
- 6J0
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-15710-03-00 Starter Assemblyスタ−タアセンブリ; |
689-15710-03-00 |
US $392.04 |
||
| replacement | |||||
|
1
|
1
689-15710-04-00 Starter Assemblyスタ−タアセンブリ; |
689-15710-04-00 |
US $354.83 |
||
|
2
|
2
676-15711-01-94
Case, Starter
．ケ−ス，スタ−タ; |
676-15711-01-94 |
— | ||
|
3
|
3
91690-40020-00 Pin, Spring．ピン，スプリング; |
91690-40020-00 |
from US $3.12 |
||
|
4
|
4
689-15758-01-94
Guide De Cable
．ガイド，ロ−プ; |
689-15758-01-94 |
— | ||
| replacement | |||||
|
4
|
4
689-15758-02-94
Guide, Rope
．ガイド，ロ−プ; |
689-15758-02-94 |
— | ||
|
5
|
5
973-95060-16-00
Bolt, Hex
．ボルト; |
973-95060-16-00 |
— | ||
| replacements | |||||
|
5
|
5
97095-06016-00 Bolt．ボルト; |
97095-06016-00 |
US $1.52 |
||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess．ボルト; |
97D95-06016-00 |
from US $1.52 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646)．ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
689-15762-01-00 Seal, Rubber 2．シ−ル，ラバ− ２; |
689-15762-01-00 |
US $23.65 |
||
|
8
|
8
689-15789-00-00 Damper．ダンパ; |
689-15789-00-00 |
from US $5.95 |
||
|
9
|
9
689-15755-01-00 Handle, Starter．ハンドル，スタ−タ; |
689-15755-01-00 |
US $10.63 |
||
| replacement | |||||
|
9
|
9
689-15755-02-00 HANDLE STARTER．ハンドル，スタ−タ; |
689-15755-02-00 |
from US $6.06 |
||
|
11
|
11
676-15714-00-94
Drum, Sheave
．ドラム，シ−ブ; |
676-15714-00-94 |
— | ||
|
12
|
12
91690-40020-00 Pin, Spring．ピン，スプリング; |
91690-40020-00 |
from US $3.12 |
||
|
13
|
13
90510-09M00-00 Spring, Spiral．スプリング，スパイラル; |
90510-09M00-00 |
from US $43.04 |
||
|
14
|
14
676-15717-00-00 Shaft, Starter．シヤフト，スタ−タ; |
676-15717-00-00 |
US $28.79 |
||
|
15
|
15
90201-08309-00 Washer, Plate．ワツシヤ，プレ−ト; |
90201-08309-00 |
US $2.05 |
||
|
16
|
16
97013-08025-00 Bolt (682)．ボルト; |
97013-08025-00 |
from US $3.54 |
||
|
17
|
17
95303-08600-00 Nut．ナツト; |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
17
|
17
997-80086-00-00 Nut, Hex．ナツト; |
997-80086-00-00 |
from US $1.81 |
||
|
17
|
17
953-33086-00-00 Nut．ナツト; |
953-33086-00-00 |
from US $1.39 |
||
|
18
|
18
676-15799-01-00 Clip．クリツプ; |
676-15799-01-00 |
US $6.91 |
||
|
19
|
19
90386-35M01-00 Bush．ブツシユ; |
90386-35M01-00 |
from US $8.36 |
||
|
20
|
20
676-15741-03-00 Pawl, Drive．ポ−ル，ドライブ; |
676-15741-03-00 |
from US $8.08 |
||
|
21
|
21
93430-06M02-00 Circlip．サ−クリツプ; |
93430-06M02-00 |
from US $1.70 |
||
|
22
|
22
676-15705-00-00 Spring, Drive Pawl．スプリング，ドライブポ−ル; |
676-15705-00-00 |
from US $5.74 |
||
|
23
|
23
676-15773-00-00 Stay 3．ステ− ３; |
676-15773-00-00 |
US $2.64 |
||
|
24
|
24
6F5-15779-02-00 Cover．カバ−; |
6F5-15779-02-00 |
from US $2.36 |
||
|
25
|
25
97090-08035-00 Boltボルト; |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
25
|
25
97070-08035-00 Boltボルト; |
97070-08035-00 |
from US $2.59 |
||
|
25
|
25
97095-08035-00 Boltボルト; |
97095-08035-00 |
from US $5.53 |
||
|
26
|
26
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
27
|
27
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
27
|
27
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
28
|
28
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
28
|
28
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
30
|
30
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
30
|
30
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
31
|
31
656-15771-00-94 Stay 1ステ− １; |
656-15771-00-94 |
from US $20.26 |
||
|
32
|
32
656-15772-00-94 Stay 2 |
656-15772-00-94 |
US $22.67 |
||
| replacement | |||||
|
32
|
32
656-15772-00-00 Stay 2 |
656-15772-00-00 |
from US $22.67 |
||
|
33
|
33
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
33
|
33
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
34
|
34
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
35
|
35
97313-06045-00 Bolt, Hexagon |
97313-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
35
|
35
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
36
|
36
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
37
|
37
656-15770-00-00 Cable Comp., Starter Stopケ−ブルコンプリ−ト，スタ−タストツプ; |
656-15770-00-00 |
US $43.53 |
||
|
38
|
38
90123-06049-00 Bolt．ボルト; |
90123-06049-00 |
US $2.50 |
||
| replacement | |||||
|
38
|
38
90123-06M00-00 Bolt(6A9)．ボルト; |
90123-06M00-00 |
from US $2.50 |
||
|
39
|
39
953-03066-00-00
Nut, Hexagon
．ナツト; |
953-03066-00-00 |
— | ||
| replacement | |||||
|
39
|
39
95380-06600-00 Nut, Hexagon．ナツト; |
95380-06600-00 |
from US $1.18 |
||
|
40
|
40
656-15748-00-00 Plunger, Starter Stopプランジヤ，スタ−タストツプ; |
656-15748-00-00 |
from US $11.33 |
||
|
41
|
41
90501-10227-00 Spring, Compression |
90501-10227-00 |
from US $2.55 |
||
|
42
|
42
689-15774-00-00
Stay 4
|
689-15774-00-00 |
— | ||
|
43
|
43
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
43
|
43
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
44
|
44
656-15749-00-00 Link, Starter Stopリンク，スタ−タストツプ; |
656-15749-00-00 |
from US $10.77 |
||
|
45
|
45
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
45
|
45
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
46
|
46
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
47
|
47
90206-08010-00 Washer, Waveワツシヤ，ウエイブ; |
90206-08010-00 |
from US $3.97 |
||
|
48
|
48
90387-06568-00 Collar |
90387-06568-00 |
from US $1.70 |
||
| replacement | |||||
|
48
|
48
90387-06761-00 Collar (3L6) |
90387-06761-00 |
from US $1.70 |
||
|
49
|
49
90206-05005-00 Washer, Waveワツシヤ，ウエイブ; |
90206-05005-00 |
from US $2.55 |
||
|
50
|
50
92990-05600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
51
|
51
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
52
|
52
689-81332-01-00 Plate, Timing |
689-81332-01-00 |
from US $8.93 |
||
