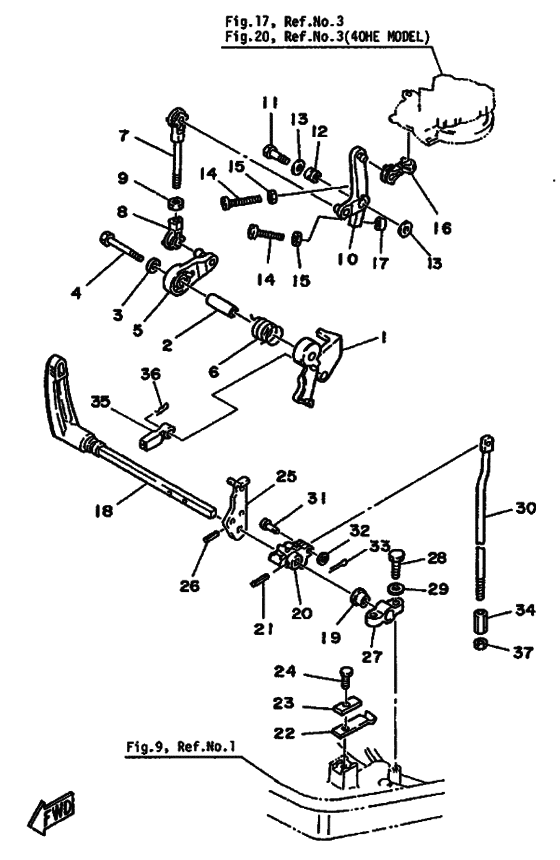

Control Diagram Yamaha 40 M(E/O)S/L
- Year
- 1986
- Model
- 40H
- Model code
- 6H4
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-41213-12-00
Cam, Accel
UR |
6H4-41213-12-00 |
— | ||
|
1
|
1
6H4-41213-02-00
Cam, Accel. (K)
UR |
6H4-41213-02-00 |
— | ||
|
2
|
2
90387-06M63-00
Collar
|
90387-06M63-00 |
— | ||
|
3
|
3
903-87062-98-00
Collar
|
903-87062-98-00 |
— | ||
|
4
|
4
97313-06040-00 Bolt (682) |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
5
|
5
6H4-41632-00-00 Lever, Magneto Control 2 |
6H4-41632-00-00 |
from US $10.72 |
||
|
5
|
5
905-0826M-20-00
Spring, Torsion
|
905-0826M-20-00 |
— | ||
|
6
|
6
905-0826M-20-00
Spring, Torsion
|
905-0826M-20-00 |
— | ||
|
8
|
8
682-41237-00-00 Joint, Link 2 |
682-41237-00-00 |
from US $1.66 |
||
|
9
|
9
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
6H4-41631-00-00
Lever, Magneto Control
|
6H4-41631-00-00 |
— | ||
| replacement | |||||
|
10
|
10
6H4-41631-01-00 Lever, Magneto Contrl 2 |
6H4-41631-01-00 |
US $13.22 |
||
|
11
|
11
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
12
|
12
90387-06M02-00 Collar |
90387-06M02-00 |
from US $5.81 |
||
|
13
|
13
903-87062-98-00
Collar
|
903-87062-98-00 |
— | ||
|
14
|
14
90157-06M00-00 Screw, Pan Head |
90157-06M00-00 |
US $2.69 |
||
| replacement | |||||
|
14
|
14
90157-06M13-00 Screw, Pan Head |
90157-06M13-00 |
from US $2.69 |
||
|
15
|
15
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
16
|
16
6H3-41238-00-00 Joint, Link |
6H3-41238-00-00 |
from US $7.65 |
||
|
17
|
17
688-44194-00-00 Cap |
688-44194-00-00 |
from US $5.95 |
||
|
18
|
18
6H4-44111-00-00
Handle, Gear Shift
|
6H4-44111-00-00 |
— | ||
|
19
|
19
682-44132-00-00 Bushing |
682-44132-00-00 |
from US $7.93 |
||
|
20
|
20
6H4-44121-01-00
Lever, Shift Rod
|
6H4-44121-01-00 |
— | ||
| replacement | |||||
|
20
|
20
6H4-44121-02-00
Lever, Shift Rod
|
6H4-44121-02-00 |
— | ||
|
21
|
21
91690-30318-00 Goupille, Elastique |
91690-30318-00 |
US $2.69 |
||
| replacement | |||||
|
21
|
21
90254-03M04-00 Pin, Spring |
90254-03M04-00 |
from US $2.69 |
||
|
22
|
22
6H4-44116-00-00
Spring
|
6H4-44116-00-00 |
— | ||
|
23
|
23
682-44117-00-00 Bracket |
682-44117-00-00 |
from US $3.52 |
||
|
24
|
24
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
24
|
24
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
24
|
24
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
25
|
25
6H4-44125-01-00 Lever, Shift Rod |
6H4-44125-01-00 |
US $9.45 |
||
|
26
|
26
91690-30316-00 Pin, Spring |
91690-30316-00 |
US $2.69 |
||
| replacement | |||||
|
26
|
26
90254-03M03-00 Pin, Spring |
90254-03M03-00 |
from US $2.69 |
||
|
27
|
27
6F5-41662-00-00 Bracket 2 |
6F5-41662-00-00 |
from US $16.20 |
||
|
28
|
28
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
28
|
28
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
29
|
29
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
6H4-44143-00-00
Rod, Shift
|
6H4-44143-00-00 |
— | ||
|
31
|
31
91790-05020-00 Pin, Clevis |
91790-05020-00 |
US $2.64 |
||
|
32
|
32
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
33
|
33
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
34
|
34
648-44146-00-00 Connector, Shift Rod 2 |
648-44146-00-00 |
from US $6.30 |
||
|
35
|
35
663-48344-00-00
Cable End, Remote Control
|
663-48344-00-00 |
— | ||
| replacement | |||||
|
35
|
35
6FM-48344-00-00 CABLE END, REMOTE CONTROL |
6FM-48344-00-00 |
from US $2.69 |
||
|
36
|
36
90468-18008-00 Clip |
90468-18008-00 |
from US $1.70 |
||
|
37
|
37
90170-07021-00 Nut |
90170-07021-00 |
from US $3.97 |
||
