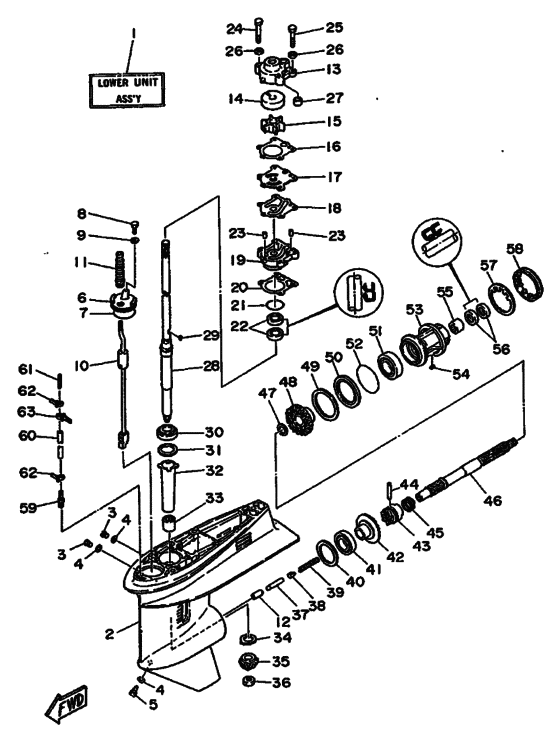

Lower casing & drive 1 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1986
- Model
- 40H
- Model code
- 6H4
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-45300-00-EJ
Lower Unit Assy
UR |
6H4-45300-00-EJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
1
|
1
6H4-45300-10-EJ
Lower Unit Assy
UR |
6H4-45300-10-EJ |
— | ||
| replacement | |||||
|
1
|
1
6H4-45300-12-EJ
Lower Unit Assy
UR |
6H4-45300-12-EJ |
— | ||
|
2
|
2
6H4-45301-00-EJ
Casing, Lower
|
6H4-45301-00-EJ |
— | ||
| replacement | |||||
|
2
|
2
6H4-45301-01-EJ
Casing, Lower
|
6H4-45301-01-EJ |
— | ||
|
3
|
3
903-40080-14-00
Plug, Straight Screw
|
903-40080-14-00 |
— | ||
| replacement | |||||
|
3
|
3
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
4
|
4
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
5
|
5
688-45341-00-00
Plug, Drain
|
688-45341-00-00 |
— | ||
| replacement | |||||
|
5
|
5
688-45341-10-00 Plug, Drain |
688-45341-10-00 |
from US $7.37 |
||
|
6
|
6
6H4-45321-00-00
Plate
|
6H4-45321-00-00 |
— | ||
| replacement | |||||
|
6
|
6
6H4-45321-01-00
Plate
|
6H4-45321-01-00 |
— | ||
|
7
|
7
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.70 |
||
|
8
|
8
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
6H4-44150-00-00
Shift Cam Assy
UR |
6H4-44150-00-00 |
— | ||
| replacement | |||||
|
10
|
10
6H4-44150-01-00
Shift Cam Assembly
UR |
6H4-44150-01-00 |
— | ||
|
10
|
10
6H4-44150-10-00
Shift Cam Assy
UR |
6H4-44150-10-00 |
— | ||
| replacement | |||||
|
10
|
10
6H4-44150-12-00 Shift Cam AssemblyUR |
6H4-44150-12-00 |
US $116.60 |
||
|
11
|
11
655-44147-00-00
Bolt, Shift Rod
|
655-44147-00-00 |
— | ||
| replacement | |||||
|
11
|
11
6G1-44147-00-00 Boot, Shift Rod |
6G1-44147-00-00 |
from US $12.33 |
||
|
12
|
12
6H4-44160-00-00
Detent Comp
|
6H4-44160-00-00 |
— | ||
|
13
|
13
663-44311-02-00 Housing, Water Pump |
663-44311-02-00 |
from US $67.84 |
||
|
14
|
14
663-44322-00-00 Insert, Cartridge |
663-44322-00-00 |
from US $11.58 |
||
|
15
|
15
6H4-44352-00-00 Impeller |
6H4-44352-00-00 |
US $30.32 |
||
| replacement | |||||
|
15
|
15
6H4-44352-02-00 Impeller |
6H4-44352-02-00 |
from US $25.46 |
||
|
16
|
16
663-44315-00-00 Gasket, Water Pump |
663-44315-00-00 |
US $7.79 |
||
| replacement | |||||
|
16
|
16
663-44315-A0-00 Gasket, Water Pump |
663-44315-A0-00 |
from US $3.98 |
||
|
17
|
17
663-44323-00-00 Outer Plate, Cartidge |
663-44323-00-00 |
from US $12.90 |
||
|
18
|
18
663-44324-00-00 Oil Seal |
663-44324-00-00 |
US $6.52 |
||
| replacement | |||||
|
18
|
18
663-44324-A0-00 Gasket, Cartridge |
663-44324-A0-00 |
from US $2.66 |
||
|
19
|
19
663-44341-00-94 Housing, Water Pump |
663-44341-00-94 |
US $76.40 |
||
| replacement | |||||
|
19
|
19
663-44341-00-00 Housing, Water Pump |
663-44341-00-00 |
from US $42.32 |
||
|
20
|
20
663-44316-00-00 Gasket, Water Pump |
663-44316-00-00 |
US $5.95 |
||
| replacement | |||||
|
20
|
20
663-44316-A0-00 Gasket, Water Pump |
663-44316-A0-00 |
from US $2.98 |
||
|
21
|
21
93210-41042-00 O-Ring |
93210-41042-00 |
from US $2.66 |
||
|
22
|
22
93101-23070-00 Oil Seal |
93101-23070-00 |
from US $10.58 |
||
|
23
|
23
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.66 |
||
|
24
|
24
97395-08055-00 Bolt |
97395-08055-00 |
from US $6.66 |
||
| replacement | |||||
|
24
|
24
97095-08055-00 Bolt |
97095-08055-00 |
from US $6.66 |
||
|
25
|
25
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
25
|
25
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
25
|
25
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
26
|
26
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
27
|
27
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.83 |
||
|
28
|
28
6H4-45501-00-00
Drive Shaft Comp (S)
UR |
6H4-45501-00-00 |
— | ||
|
28
|
28
6H4-45501-10-00
Drive Shaft Comp (L)
UR |
6H4-45501-10-00 |
— | ||
|
29
|
29
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $5.30 |
||
|
30
|
30
93332-00023-00 Bearing |
93332-00023-00 |
from US $22.53 |
||
| replacement | |||||
|
30
|
30
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.53 |
||
|
31
|
31
663-45587-00-05 Shim 3 (0.05Mm)UR |
663-45587-00-05 |
US $4.56 |
||
|
31
|
31
663-45587-00-08
Shim 3 (0.08Mm)
UR |
663-45587-00-08 |
— | ||
|
31
|
31
663-45587-00-12 Shim (T:0.12Mm)UR |
663-45587-00-12 |
US $5.95 |
||
| replacement | |||||
|
31
|
31
663-45587-10-00 Shim (T:0.12Mm)UR |
663-45587-10-00 |
from US $1.66 |
||
|
31
|
31
663-45587-00-30 Shim (T:0.30Mm)Shim 3 (0.30mm) UR |
663-45587-00-30 |
US $5.95 |
||
| replacement | |||||
|
31
|
31
663-45587-40-00 Shim (T:0.30Mm)UR |
663-45587-40-00 |
from US $1.34 |
||
|
31
|
31
663-45587-00-50 Shim (T:0.50Mm)UR |
663-45587-00-50 |
US $5.95 |
||
| replacement | |||||
|
31
|
31
663-45587-60-00 Shim (T:0.50Mm)UR |
663-45587-60-00 |
from US $5.09 |
||
|
32
|
32
6H4-45536-00-00 Sleeve, Drive Shaft |
6H4-45536-00-00 |
from US $10.58 |
||
|
33
|
33
933-15322-24-00 Bearing |
933-15322-24-00 |
from US $22.95 |
||
|
34
|
34
663-45552-00-00 Bearing, Plain |
663-45552-00-00 |
from US $6.80 |
||
|
35
|
35
6H4-45551-00-00
Pinion
|
6H4-45551-00-00 |
— | ||
|
36
|
36
90170-12138-00 Nut |
90170-12138-00 |
from US $6.52 |
||
|
37
|
37
676-45635-00-00 Plunger, Shift |
676-45635-00-00 |
from US $11.92 |
||
|
38
|
38
663-45634-00-00 Slide, Shift |
663-45634-00-00 |
from US $7.37 |
||
|
39
|
39
90501-16M01-00 Spring, Compression |
90501-16M01-00 |
from US $2.66 |
||
|
40
|
40
6H4-45567-00-05 Shim (0.05Mm)Shim 1 (0.05mm) UR |
6H4-45567-00-05 |
from US $2.35 |
||
|
40
|
40
6H4-45567-00-08
Shim (0.08Mm)
UR |
6H4-45567-00-08 |
— | ||
|
40
|
40
6H4-45567-00-12
Shim (T:0.12Mm)
UR |
6H4-45567-00-12 |
— | ||
| replacement | |||||
|
40
|
40
6H4-45567-01-12
Shim (T:0.12Mm)
UR |
6H4-45567-01-12 |
— | ||
|
40
|
40
6H4-45567-00-30
Shim (T:0.30Mm)
UR |
6H4-45567-00-30 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
40
|
40
6H4-45567-00-50 Shim (T:0.50Mm)Shim 1 (0.50mm) UR |
6H4-45567-00-50 |
US $2.35 |
||
| replacement | |||||
|
40
|
40
6H4-45567-01-50
Shim (T:0.50Mm)
UR |
6H4-45567-01-50 |
— | ||
|
41
|
41
933-32000-V4-00
Bearing
|
933-32000-V4-00 |
— | ||
|
43
|
43
6H4-45631-00-00
Clutch, Dog
|
6H4-45631-00-00 |
— | ||
| replacement | |||||
|
43
|
43
663-45631-01-00 Clutch, Dog |
663-45631-01-00 |
from US $85.11 |
||
|
44
|
44
90250-06023-00 Pin, Straight |
90250-06023-00 |
from US $3.54 |
||
|
45
|
45
663-45633-00-00 Ring, Cross Pin |
663-45633-00-00 |
from US $1.34 |
||
|
46
|
46
679-45611-01-00 Shaft, Propeller |
679-45611-01-00 |
from US $233.08 |
||
|
47
|
47
90201-22429-00 Washer, Plate |
90201-22429-00 |
from US $4.64 |
||
|
48
|
48
6H4-45571-00-00
Gear
UR |
6H4-45571-00-00 |
— | ||
|
49
|
49
663-45577-00-50 Shim (T:0.50Mm)UR |
663-45577-00-50 |
US $5.95 |
||
| replacement | |||||
|
49
|
49
663-45577-60-00 Shim (T:0.50Mm)UR |
663-45577-60-00 |
from US $1.66 |
||
|
49
|
49
663-45577-00-08
Shim (0.08Mm)
UR |
663-45577-00-08 |
— | ||
|
49
|
49
663-45577-00-12 Shim (T:0.12Mm)UR |
663-45577-00-12 |
US $5.95 |
||
| replacement | |||||
|
49
|
49
663-45577-10-00 Shim (T:0.12Mm)UR |
663-45577-10-00 |
from US $5.09 |
||
|
49
|
49
663-45577-00-30 Shim (T:0.30Mm)Shim 2 (0.30mm) UR |
663-45577-00-30 |
US $5.95 |
||
| replacement | |||||
|
49
|
49
663-45577-40-00 Shim (T:0.30Mm)UR |
663-45577-40-00 |
from US $5.95 |
||
|
50
|
50
663-45576-00-00 Washer, Thrust 2 |
663-45576-00-00 |
from US $5.95 |
||
|
51
|
51
933-06007-02-00 Bearing |
933-06007-02-00 |
from US $21.16 |
||
|
52
|
52
93210-66262-00 O-Ring |
93210-66262-00 |
US $6.80 |
||
| replacement | |||||
|
52
|
52
93210-66M98-00 O-Ring |
93210-66M98-00 |
from US $6.80 |
||
|
53
|
53
679-45331-00-94 Housing, Bearing |
679-45331-00-94 |
US $143.69 |
||
| replacement | |||||
|
53
|
53
679-45331-00-00 HOUSING BEARING |
679-45331-00-00 |
from US $69.10 |
||
|
54
|
54
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.40 |
||
|
55
|
55
933-17222-04-00 Bearing |
933-17222-04-00 |
from US $10.48 |
||
|
56
|
56
931-0122M-00-00
Oil Seal
|
931-0122M-00-00 |
— | ||
| replacement | |||||
|
56
|
56
931-01220-67-00 Oil Seal |
931-01220-67-00 |
from US $7.51 |
||
|
57
|
57
902-14480-08-00 Washer, Claw |
902-14480-08-00 |
US $7.51 |
||
| replacement | |||||
|
57
|
57
90214-48M03-00 Washer, Claw |
90214-48M03-00 |
from US $7.51 |
||
|
58
|
58
697-45384-00-00 Nut |
697-45384-00-00 |
US $46.42 |
||
| replacement | |||||
|
58
|
58
697-45384-02-00 Nut |
697-45384-02-00 |
from US $16.54 |
||
|
59
|
59
6E5-45378-00-00 Nipple, Hose |
6E5-45378-00-00 |
from US $4.30 |
||
|
60
|
60
904-4507M-31-00
Hose (L200)
|
904-4507M-31-00 |
— | ||
| replacement | |||||
|
60
|
60
90445-07M19-00 Hose (L200) |
90445-07M19-00 |
from US $2.27 |
||
|
61
|
61
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $3.64 |
||
|
62
|
62
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
62
|
62
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
62
|
62
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
63
|
63
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
63
|
63
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
